SPCK520.100-N Compact Keypad Neu.

Forhåndsvisning: SPCK520.100-N Compact Keypad Neu. Forhåndsvisning: SPCK520.100-N Compact Keypad Neu. Forhåndsvisning: SPCK520.100-N Compact Keypad Neu. Forhåndsvisning: SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54543-F115-A100
  • EAN/UPC-Kode: 4025515470984
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPCK520.100-N Compact Keypad Neu."

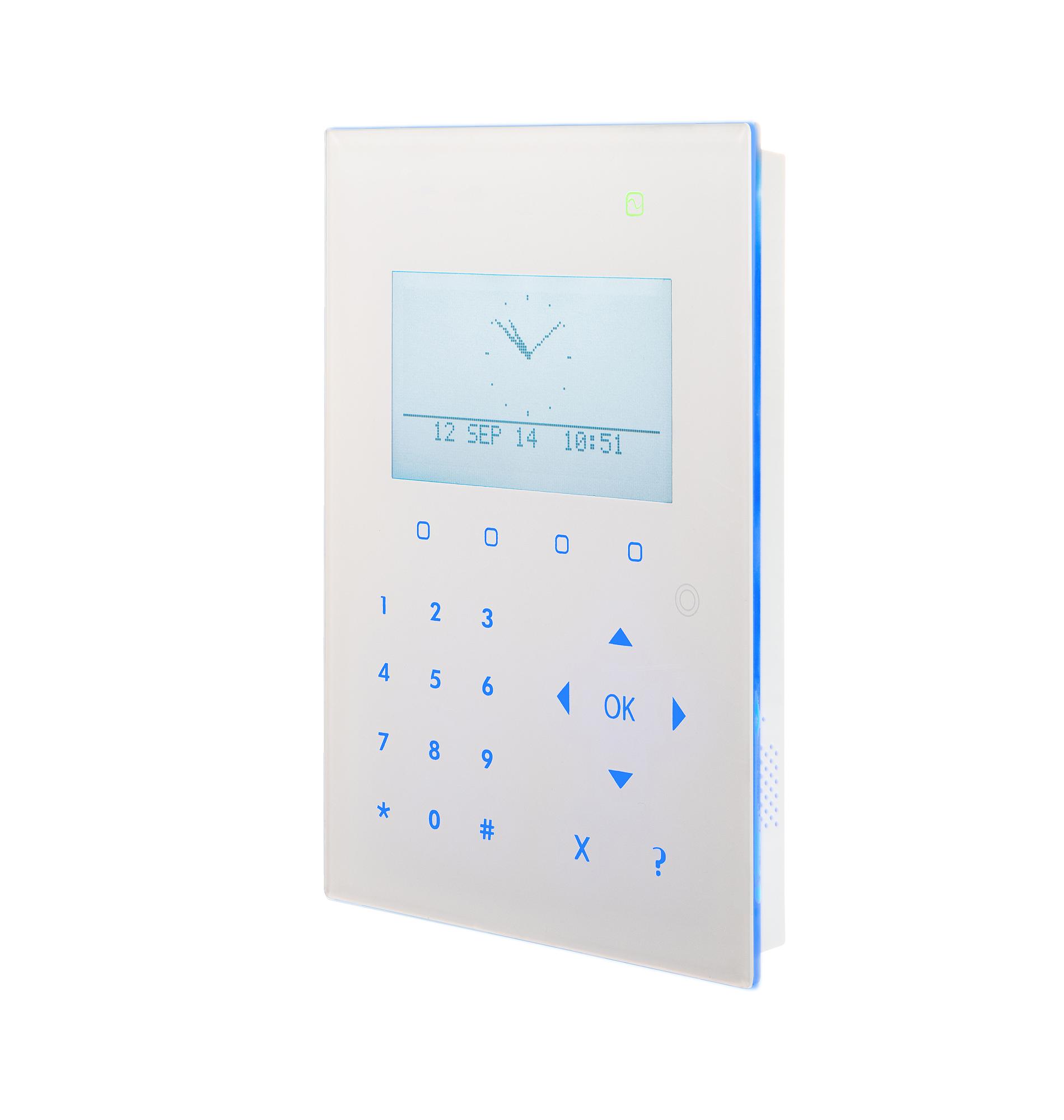

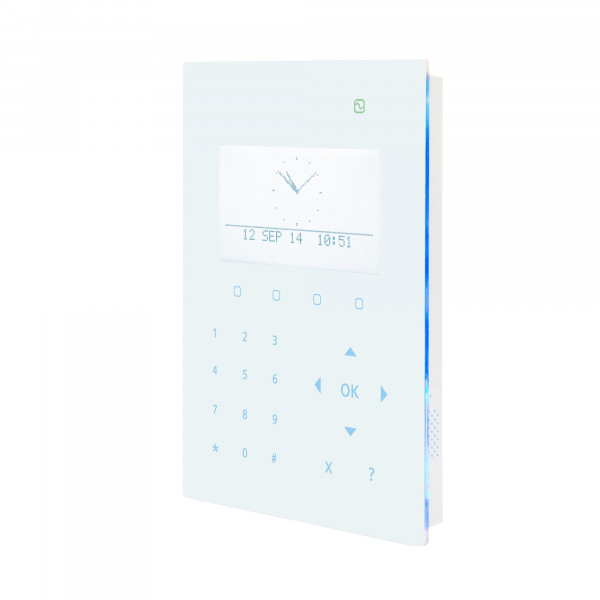

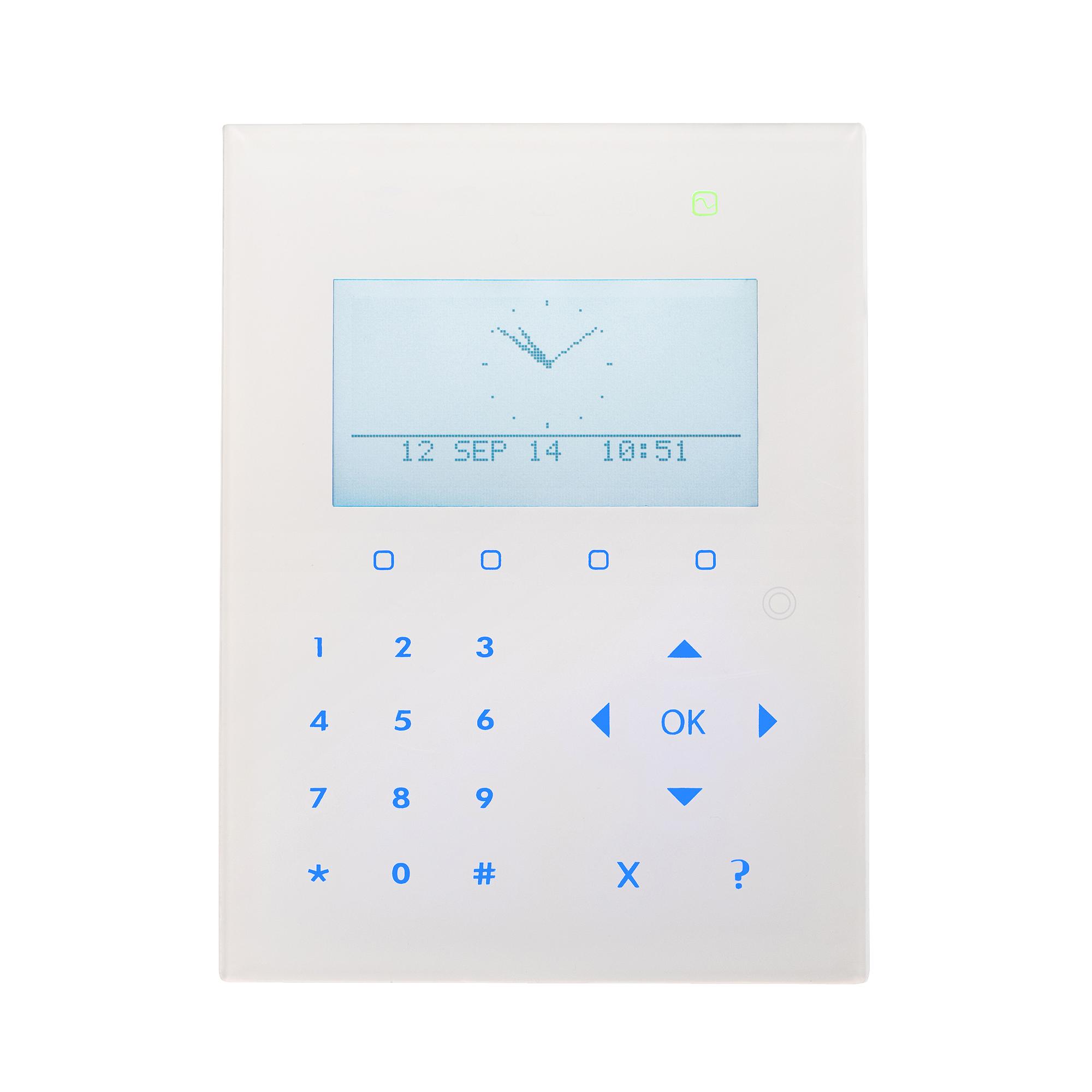

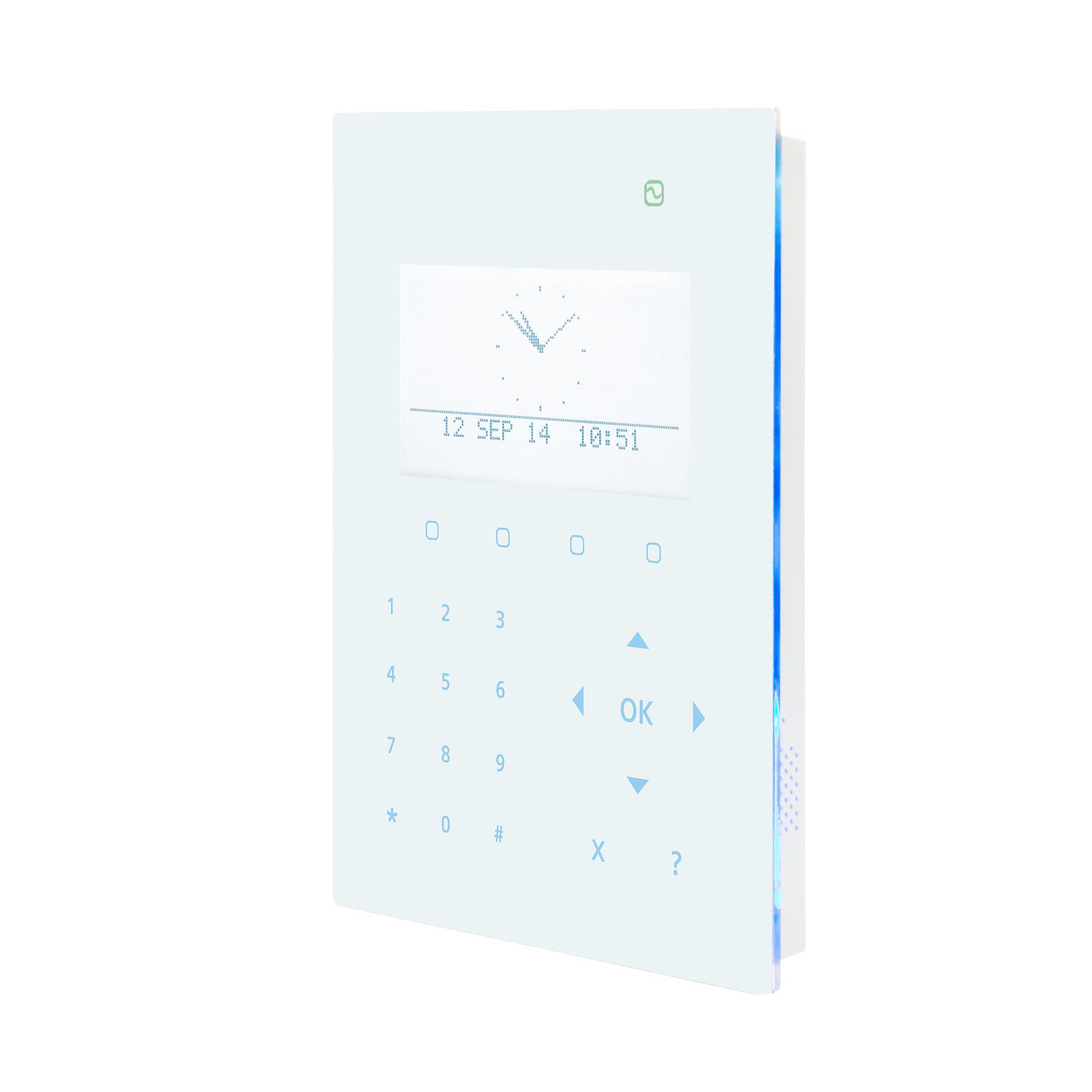

The SPCK520.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.325
Købs Enhed PCE
EAN/UPC-Kode: 4025515470984
mindste bestilling 1
ECCN N
Materialekode V54543-F115-A100
Statistisk kode 85311030
Nettovægt 0.309
Oprindelsesland PH
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Interfaces: X-BUS (in, out)
Housing: Plastic housing (PMMA, PC ABS, ABS)
Weight: 0.250 kg
Mounting: Flat surface, wall-mounted or flush mounted using SPCY520 / SPCY521
Operating current: Max. 210 mA at 12 VDC (backlight, LEDs, voice annunciation operated)
Audio: Supported via integrated speaker
Keypad: Touch key technology
Operating temperature: 5 ~ +40 °C
Quiescent current: Max. 55 mA at 12 VDC
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 110 x 150 x 17.5 (mm)
