PDM-I18T PIR AM detector

Forhåndsvisning: PDM-I18T PIR AM detector Forhåndsvisning: PDM-I18T PIR AM detector

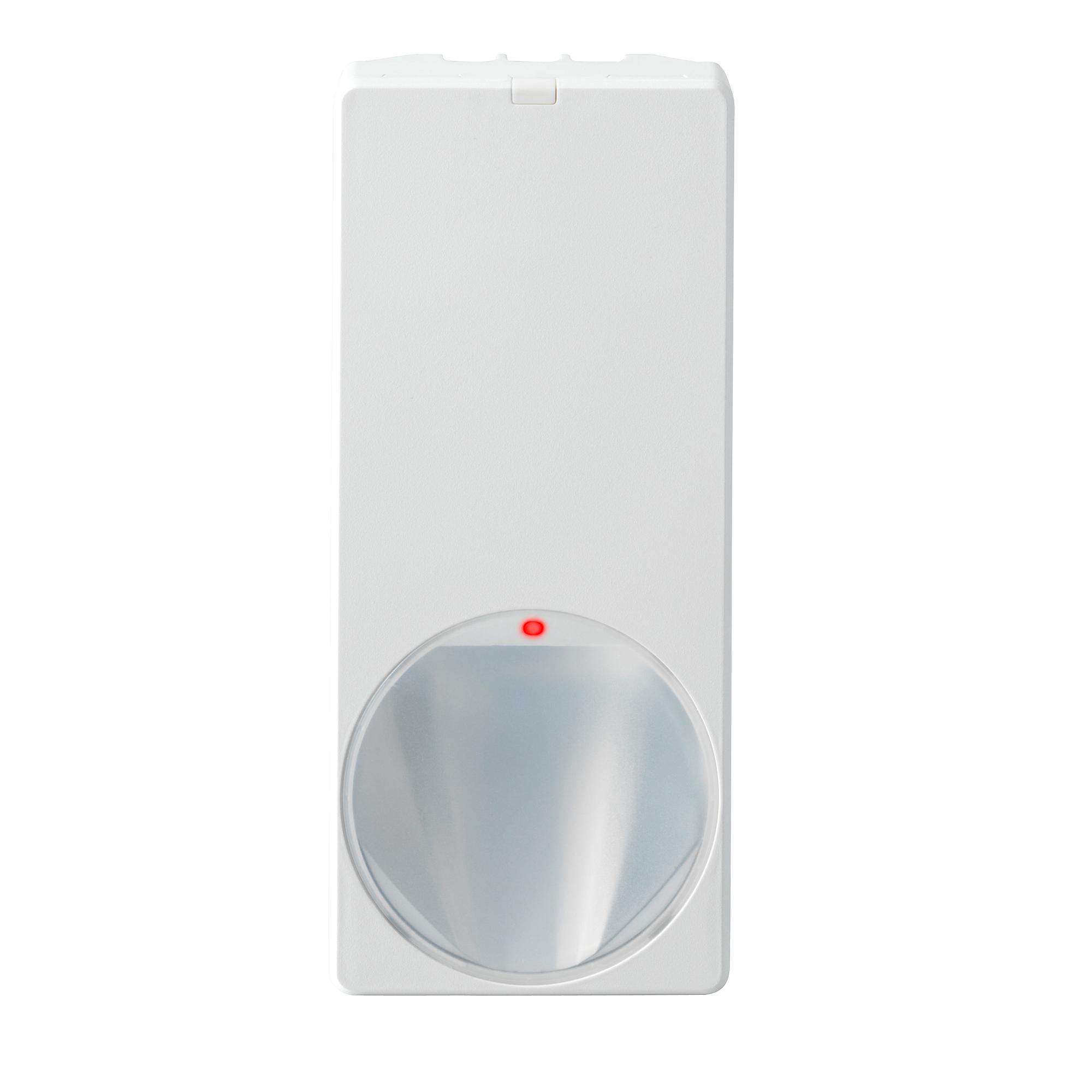

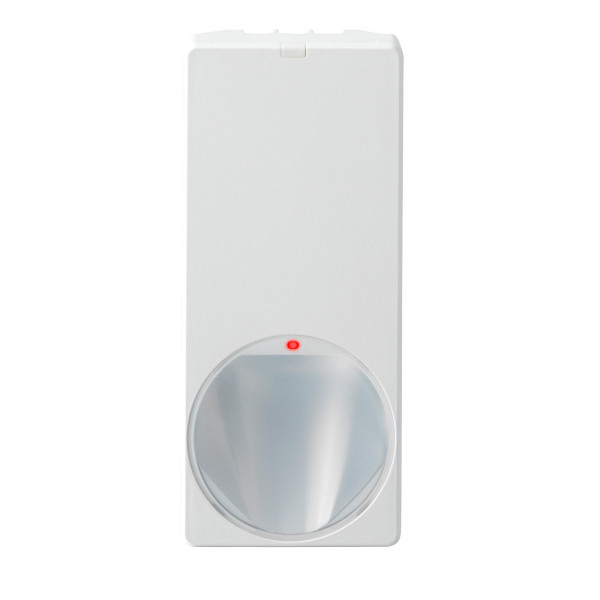

PDM-I18T PIR AM detector
PDM-I18T PIR AM detector

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54530-F107-A100
  • EAN/UPC-Kode: 4025515470397
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation nyttige links
Beskrivelse
Luk menu
Produkt information "PDM-I18T PIR AM detector"
MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.16
Købs Enhed PCE
EAN/UPC-Kode: 4025515470397
mindste bestilling 1
Statistisk kode 85311030
ECCN EAR99
Oprindelsesland RO
Nettovægt 0.095
Materialekode V54530-F107-A100
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Air humidity (EN 60721): < 85% RH, non-condensing
Supply voltage: 9 ... 16VDC (12V nom.)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature: -10°C …+55°C
Pet immunity: no
Detection characteristics / range: Volumetric / 18m
Weight: 0.115kg
Approval: EN50131-2-2 Grade 3 VdS Class C
Current consumption: 3.9mA (rms) 6.6mA (max. peak)
Dimensions (W x H x D): 64 x 147 x 35 (mm)
Walking speed: 0.1 ~ 4m/s
Colour: RAL9003
Housing protection (EN 60529): IP41 / IK02
Sensitivity evaluation mode: 4 settings
Optical system: MAGIC mirror
Storage temperature: -20° ~ +60°C
