MK-2400-S1 Magn. Cont. Set1,Al,6/1m

Forhåndsvisning: MK-2400-S1 Magn. Cont. Set1,Al,6/1m Forhåndsvisning: MK-2400-S1 Magn. Cont. Set1,Al,6/1m
MK-2400-S1 Magn. Cont. Set1,Al,6/1m
MK-2400-S1 Magn. Cont. Set1,Al,6/1m

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54536-F104-A100
  • EAN/UPC-Kode: 4025515478591
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu

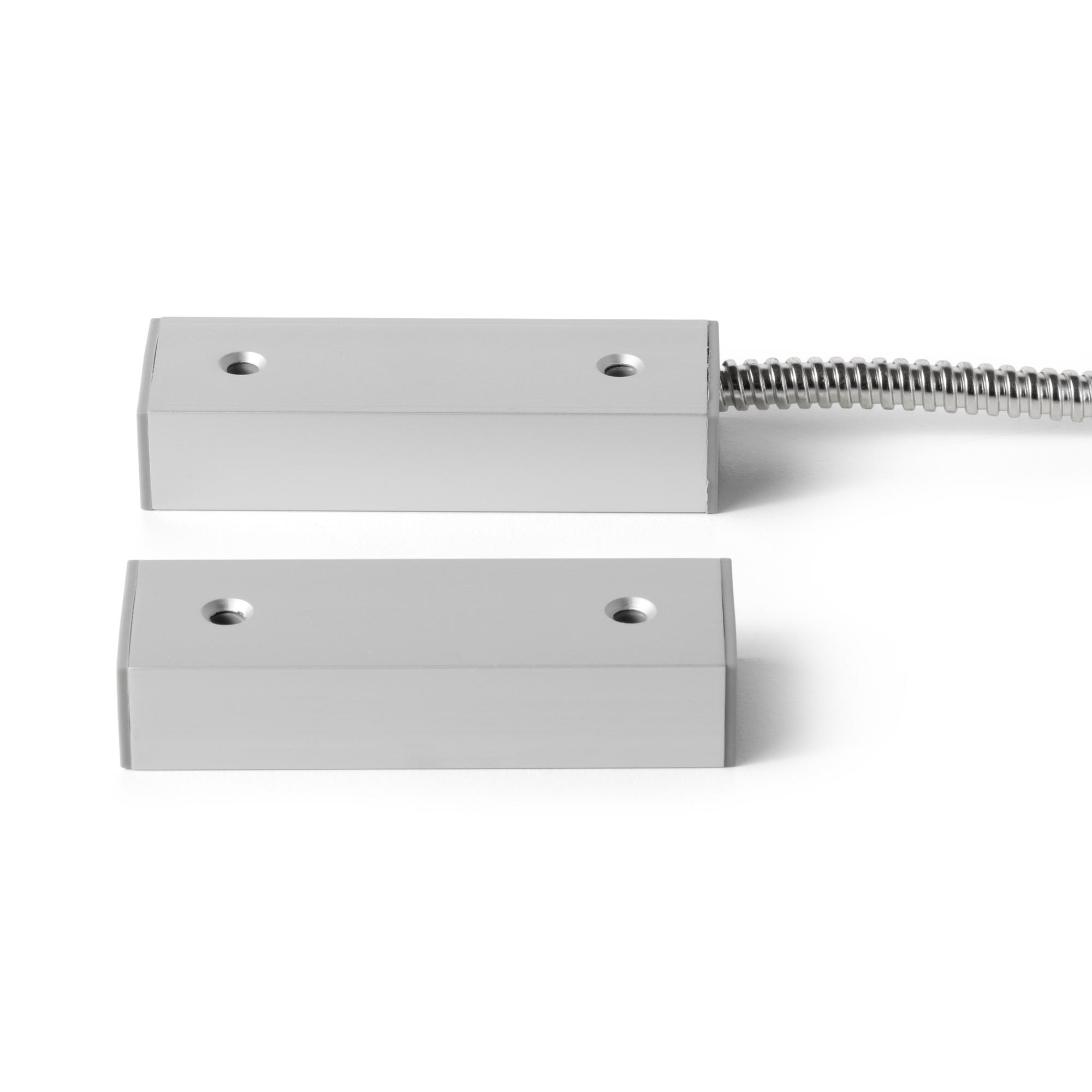

Produkt information "MK-2400-S1 Magn. Cont. Set1,Al,6/1m"
Surface mount magnetic contact for industrial areas. Suitable for roller shutter control. Magnetic contact and Magnet must be mounted in a parallel position. The cable is protected by a 1 m metal tube. Secondary package: 20 Units
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.216
Købs Enhed PCE
EAN/UPC-Kode: 4025515478591
mindste bestilling 1
ECCN N
Nettovægt 0.205
Materialekode V54536-F104-A100
Statistisk kode 85311030
Oprindelsesland DE
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Cable length: 6 m
Dimensions (W x H x D): 73 x 26 x 15 (mm)
Dokumentation
