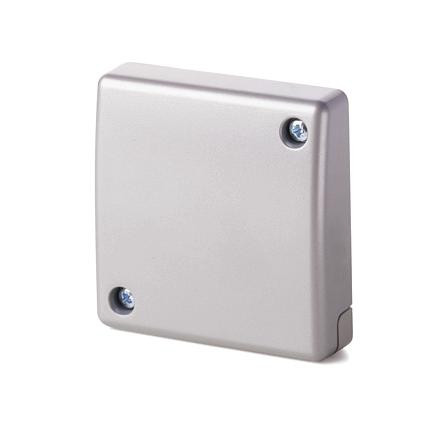

GM760 Seismic detector

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V54534-F108-A100
  • 4025515469643
Produkt information "GM760 Seismic detector"
The GM760 seismic detector is the all-purpose unit in the Vanderbilt`s GM7xx- series. It is perfectly suited for applications on steel, concrete as well as lightweight synthetic materials. Intelligent signal processing enables the level of detection sensitivity to be custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector, and the anti-tamper on the back of the detector will detect forcible removal. Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high concentration of valuable assets or dangerous goods. All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that environmental disturbances are ignored, and false alarms eliminated.
Bruttovægt (KG) 0.26
Købs Enhed PCE
EAN/UPC-Kode: 4025515469643
mindste bestilling 1
Statistisk kode 85311030
ECCN EAR99
Materialekode V54534-F108-A100
Nettovægt 0.247
Oprindelsesland HU
Dimensions (W x H x D): 89 x 89 x 22 (mm)
Power supply: 8 - 16 VDC (12 V nominal)
Approval: UL, CCC, RCM, CNPP, IMQ, INCERT, REQ, NBÚ, PIE, MABISZ, PD6662
DIP switch settings: 3 fixed DIP settings
Weight: 0.285 kg
Alarm output relay: Opens on alarm, 30 VDC / 100 mA
Housing protection (EN 60529): IP43
Operating temperature: -40°C ~ +70°C
