PM500-EM Prox 125kHz Reader panel mount

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: V24246-F3903-A1
EAN/UPC-Kode: 4025515473510

Luk menu

Produkt information "PM500-EM Prox 125kHz Reader panel mount"

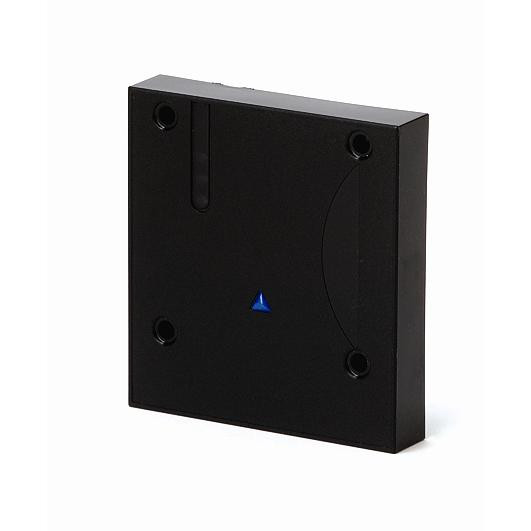

The PM500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It is designed to fit most remote call point enclosures. It is supplied with a custom-machined perspex front panel for increased aesthetic appeal. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.

Luk menu

Certificate (CE) - Issued by Vanderbilt, on 04/11/2020

Bruttovægt (KG)	0.18
Købs Enhed	PCE
EAN/UPC-Kode:	4025515473510
mindste bestilling	1
Oprindelsesland	PH
ECCN	EAR99
Statistisk kode	84716070
Nettovægt	0.171
Materialekode	V24246-F3903-A1

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Housing protection (EN 60529):	IP55
Colour:	Black
Weight:	0.15 kg
Interface to controller:	BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology:	EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility:	IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection:	No
Card read distance:	Up to 5 cm
Tamper switch:	No
Current consumption:	20 mA @ 12V DC 24 mA @ 24V DC
Housing material:	High impact polycarbonate outer casing, with encapsulated electronics
Housing:	High impact polycarbonate outer casing, with encapsulated electronics
Operation temperature:	-30°C ~ +50°C
Operating temperature:	-30 ~ +50 °C
Operating voltage:	10.6 ~ 32 VDC
Environment:	Indoor or outdoor use
Keypad:	No
Indicators:	3 x LED (red/yellow/green) 1 x Buzzer
Housing protection:	IP55
Dimensions (W x H x D):	68 x 73 x 13.5 (mm)
