XT-1LR Long Range Reader

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: N54504-Z106-A100

Luk menu

Produkt information "XT-1LR Long Range Reader"

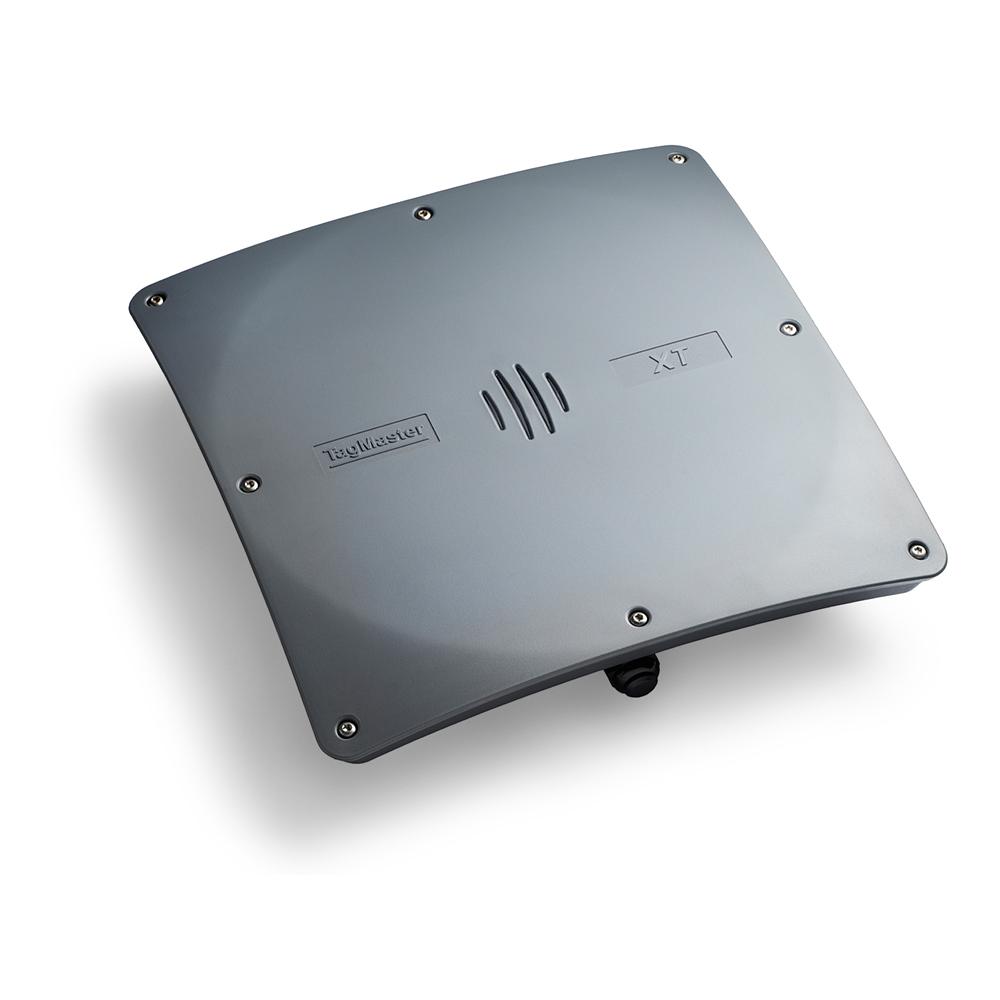

XT-1 and XT Mini are EPC Gen 2 (ISO 18000-63) compliant RFID readers with integrated antennas. Both readers are tailored for Automatic Vehicle Identification applications such as Parking, Gated Communities and Condominiums. As such, the readers are designed for outdoor use and support a large number of interfaces and protocols. While XT-1 is a generic reader with maximum possible read range, XT Mini is optimized for pole mounting close to the vehicle lane.

Luk menu

Certificate (CE) - Issued by Supplier, on 29/06/2021

Bruttovægt (KG)	2.765
Købs Enhed	PCE
mindste bestilling	1
ECCN	N
Oprindelsesland	SE
Materialekode	N54504-Z106-A100
Nettovægt	2.600
Statistisk kode	84719000

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Housing protection:	IP66
Storage temperature:	-40°C ~ +85°C
Housing material:	Aluminium, UL94 certified plastic XENOY™ cover
LED Indicators:	Red/Green/Yellow
Interface to controller:	Wiegand/Clock&Data RS485
Outputs:	3 isolated outputs
Output current:	2W
Inputs:	3 isolated inputs
Operating temperature:	-40°C to +60°C
Frequency:	865.6 MHz - 867.6 MHz
Card read distance:	Up to 8m
Power consumption:	10W (max 12W)
Weight:	2.3kg
Operating voltage:	12-24VDC
Dimensions (L x W x H):	300 x 300 x 60 (mm)
