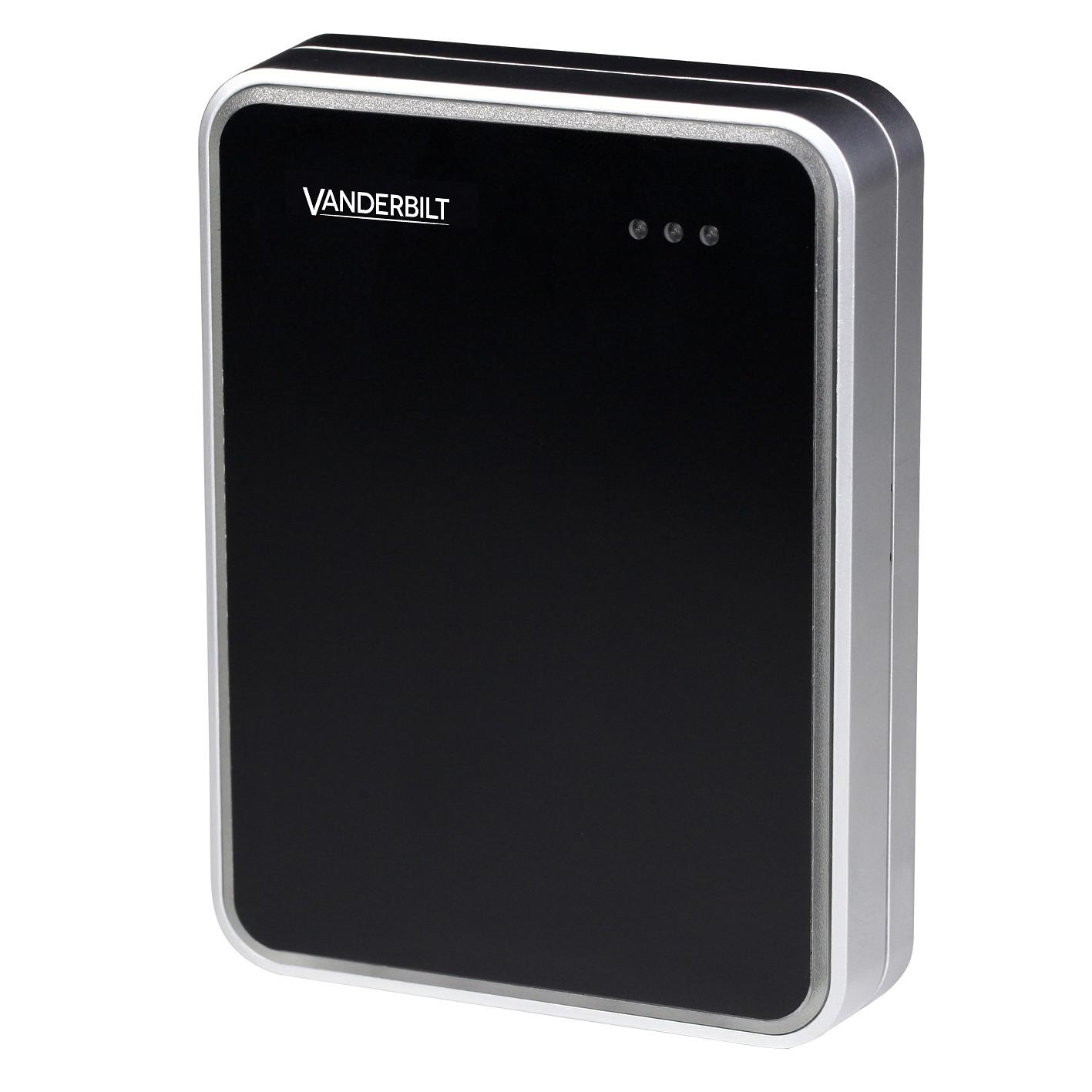

VR10S-MF NGCR MIFARE EV1 Card Reader

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V54504-F101-A100
  • 4025515469827
Produkt information "VR10S-MF NGCR MIFARE EV1 Card Reader"

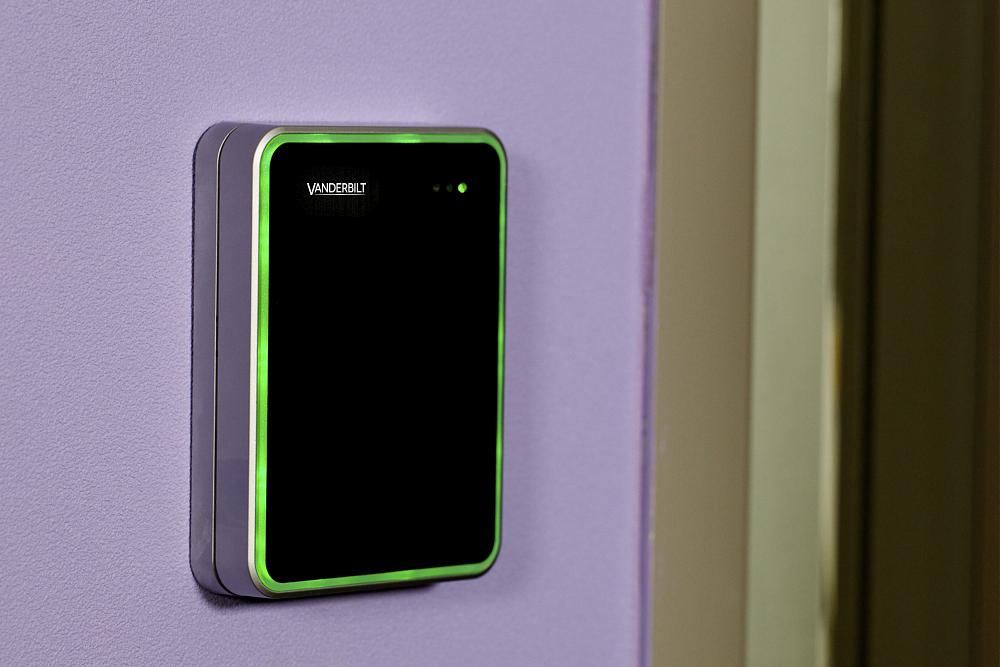

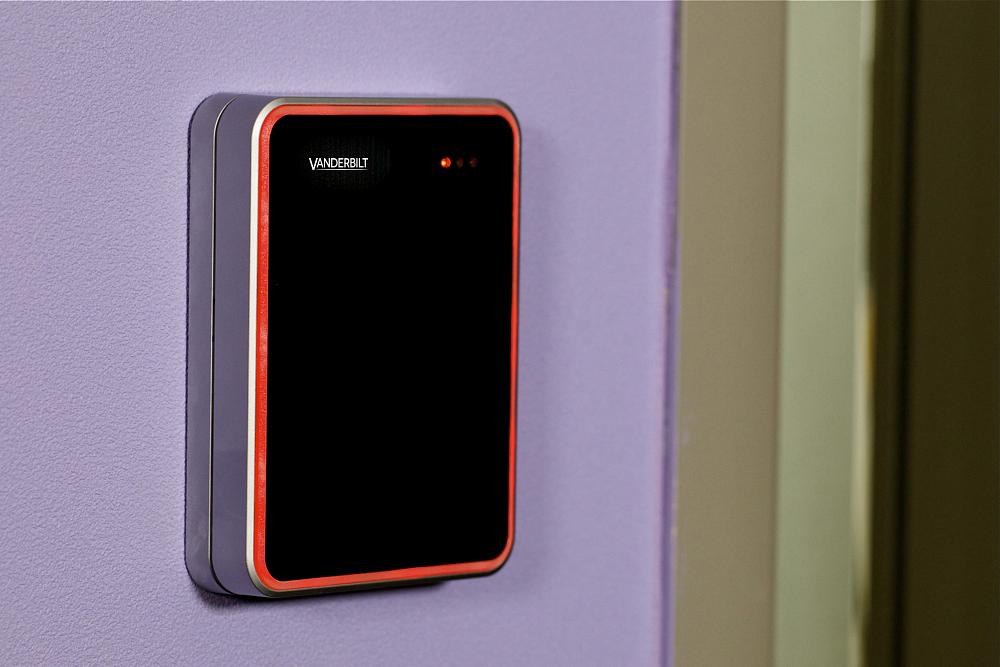

Designed for today’s bright, clean interiors, yet robust in service, the VR10S-MF is easy to install, use and maintain. The VR10S-MF has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options.
Bruttovægt (KG) 0.59
Købs Enhed PCE
EAN/UPC-Kode: 4025515469827
mindste bestilling 1
Statistisk kode 84719000
Oprindelsesland RO
Nettovægt 0.561
Materialekode V54504-F101-A100
ECCN EAR99
Operation temperature: -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted)
Operating voltage: 8.5 – 30.0 VDC
Current consumption: DC 12V 43mA Peak 168mA DC 24V 26mA Peak 100mA
Housing protection: IP55 (surface mounted) IP3X (back box mounted)
Colour: Black, matt chrome
Display: No
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Weight: 0.622kg
Interface to controller: RS485 OSDP
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Air humidity (EN 60721): 5-95% non-condensing
Impact rating: IK08
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Power consumption: DC 12V = 43mA (168mA Peak); DC 24V = 26mA (100mA Peak)
Dimensions (W x H x D): Surface mounted: 85mm x 114mm x 22mm; Back box mounted: 85mm x 114mm x 14mm
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
Card technology: MIFARE
Tamper protection: Yes
Card read distance: Up to 6 cm
Keypad: No
Environment: Indoor or outdoor use
