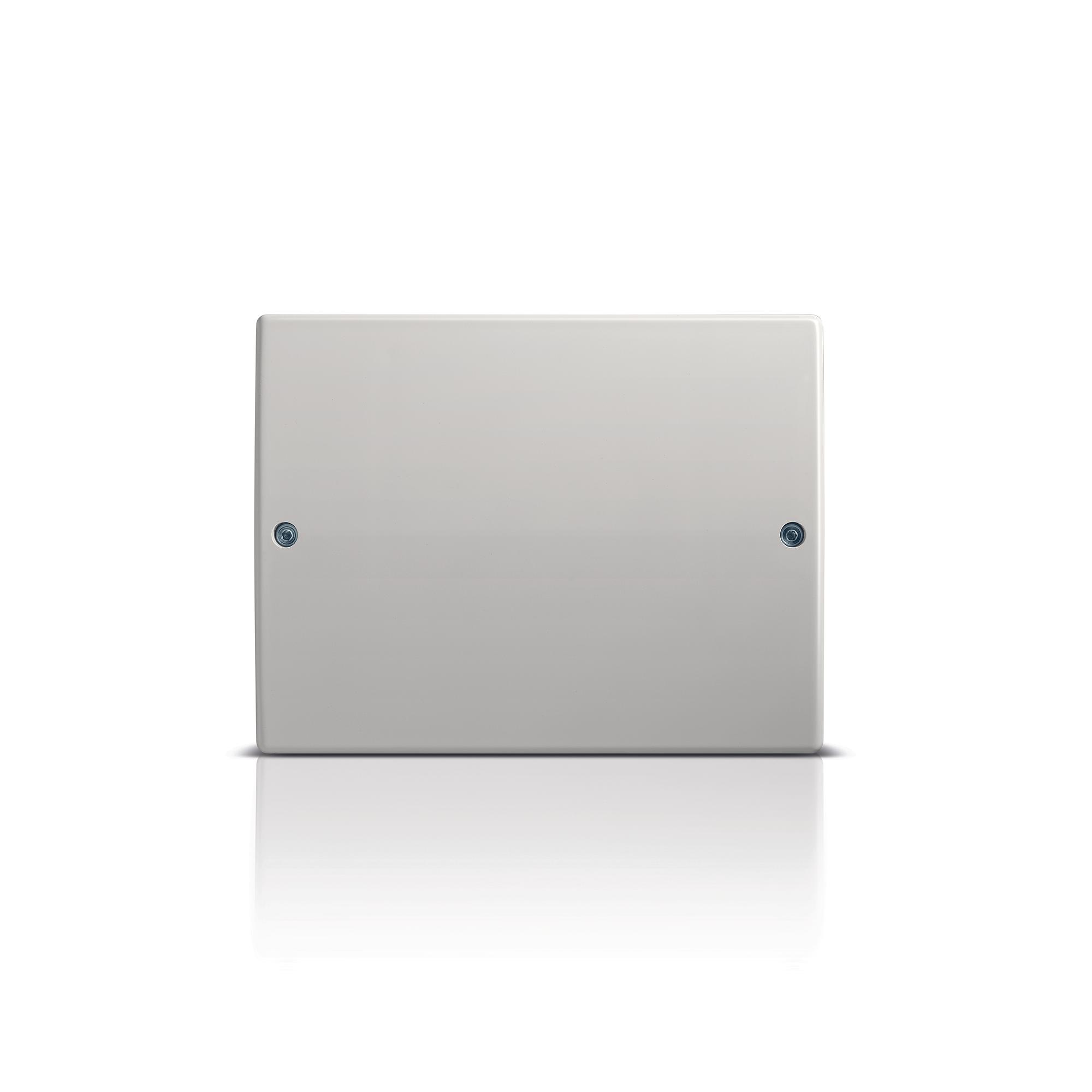

ACC-AP SiPass integrated IP Door Contr.

ACC-AP SiPass integrated IP Door Contr.
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54502-C160-A100
  • EAN/UPC-Kode: 7330082004805
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation nyttige links
Beskrivelse
Luk menu
Produkt information "ACC-AP SiPass integrated IP Door Contr."
The ACC-AP IP Door Controller is used for controlling up to two doors as part of the SiPass integrated Access Control system. The controller can be configured for 1 or 2 doors and can be programmed with up to 500‚000 cardholders. The ACC-AP offers the ability to connect 2 OSDP readers to be used for entry or exit and can be placed in different heights to accommodate for instance wheelchairs or garage barriers. The ACC-AP has 4 inputs, 2 relay outputs and 4 open-collector outputs. The inputs and outputs are user configurable to meet a majority of use cases. This controller is also capable of supporting FLN devices and of hosting units such as the 8IO, OPM and IPM.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.626
Købs Enhed PCE
EAN/UPC-Kode: 7330082004805
mindste bestilling 1
Statistisk kode 84715000
Materialekode V54502-C160-A100
Nettovægt 0.626
Oprindelsesland DK
ECCN EAR99
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Power consumption: Without reader Idle: 12V DC: 200 mA 24V DC: 125 mA Full on without readers 12V DC: 600mA 24V DC: 400 mA
