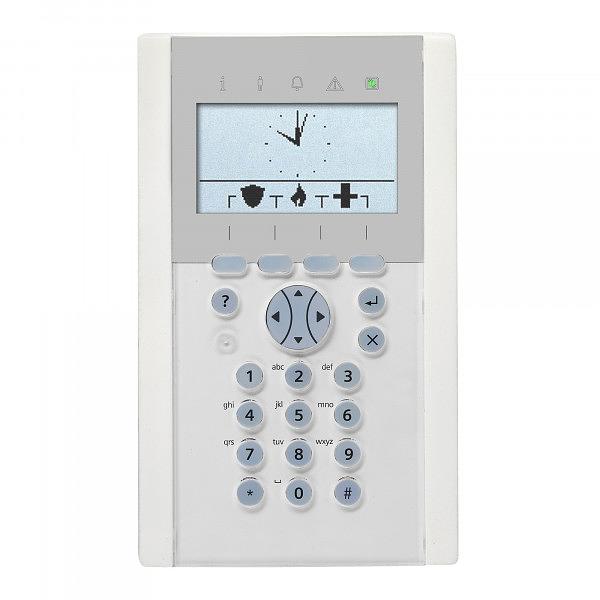

ATI5100 Intrusion arming terminal

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: V24246-F2605-A1
EAN/UPC-Kode: 4025515474449

Luk menu

Produkt information "ATI5100 Intrusion arming terminal"

ATI5100 is a field terminal designed for use with SiPass integrated. It acts as a local interface between an advanced central controller (AC5100‚ AC5102 or AC5200) and authorised cardholders‚ enabling them to carry out tasks such as arming and disarming intrusion alarm areas.

Luk menu

Bruttovægt (KG)	0.555
Købs Enhed	PCE
EAN/UPC-Kode:	4025515474449
mindste bestilling	1
Statistisk kode	84733020
ECCN	3A991
Materialekode	V24246-F2605-A1
Nettovægt	0.527
Oprindelsesland	PH

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Housing protection:	IP30
Operating voltage:	9.5 – 14 VDC
Current consumption:	Max. 155 mA at 12 VDC
Buzzer:	Integrated Sound
Approval:	CE- UL Pending
Dimensions (W x H x D):	112 x 185 x 28 mm
Housing:	Polycarbonate
Display:	LC: 128 x 64 dots Four lines with 16 characters per line
Interface:	To controller: RS485
Tamper switch:	Yes
Operating temperature:	5° ~ +40 °C
Weight:	0.38 kg
Colour:	RAL 9003
Firmware:	Flash upgradeable
Relative humidity:	Max. 90 % (non-condensing)
