AFO5200 8-Input/Output Module

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: V24246-A2600-A1
EAN/UPC-Kode: 4025515475323

Luk menu

Produkt information "AFO5200 8-Input/Output Module"

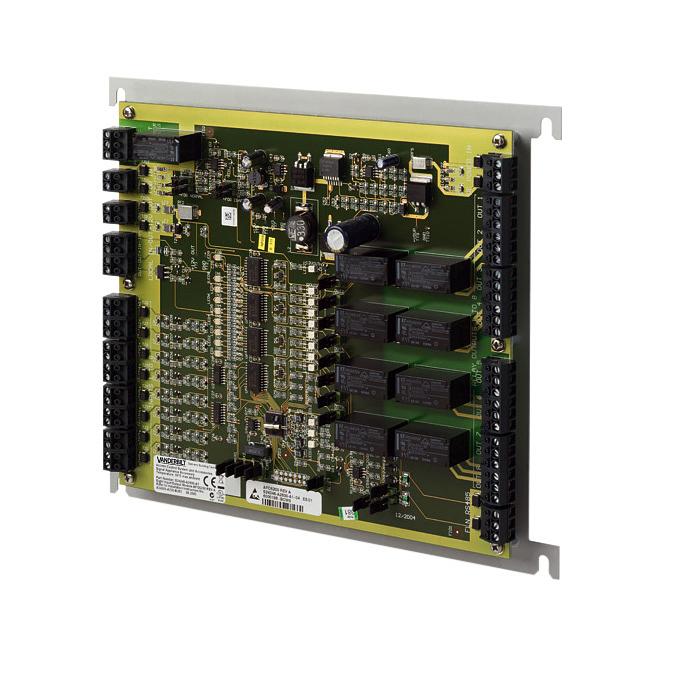

The AFO5200 is an advanced‚ multi-purpose module that provides an interface between field-level input devices (such as passive infrared detectors) and output devices (such as locking devices) to the advanced central controller (AC5100‚ AC5102 or AC5200).

Luk menu

Bruttovægt (KG)	1.1
Købs Enhed	PCE
EAN/UPC-Kode:	4025515475323
mindste bestilling	1
Oprindelsesland	HU
Materialekode	V24246-A2600-A1
Nettovægt	1.045
Statistisk kode	84733020
ECCN	EAR99

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Dimensions (W x H x D):	250 x 210 x 40 mm
Weight:	1 kg
Operating temperature:	0 to +50 °C (32 to 122 °F)
Indicators:	Power, Activity, Communication Inputs, Output Peripheral supplies Fire override
Outputs:	8 x Relays (30 VDC, 2 A) 1 x Local output (open-collector 9.7-12 VDC, 100 mA) 1 x Fire override relays (30 VDC, 2 A)
Inputs:	8 x Isolated (internally supplied, unsupervised or supervised) 1 x Local input 1 x Fire override (potential-free or internally supplied)
Approval:	CE, UL294, C-Tick
Current consumption:	Max. 2 A at 12 V, max. 1.5 A at 24 V
Operating voltage:	12 VDC ±10% or 24 VDC ±10%
Interface:	To controller: RS485
Interfaces:	Al controllore: RS485
Firmware:	Flash upgradeable
