GB-5000-IN Relay-Interface for GB

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: V54550-F112-A100
EAN/UPC-Kode: 4025515478911

Luk menu

Produkt information "GB-5000-IN Relay-Interface for GB"

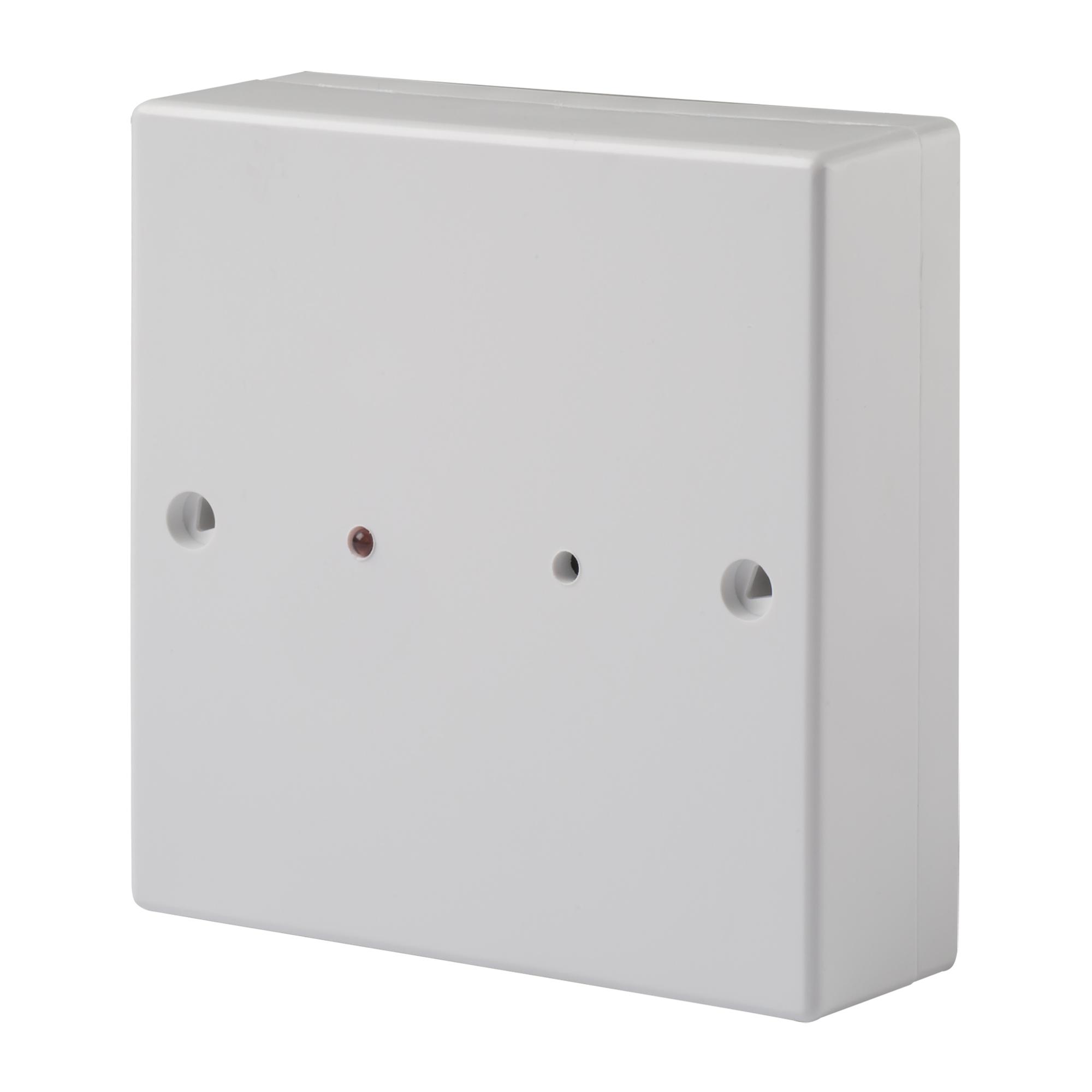

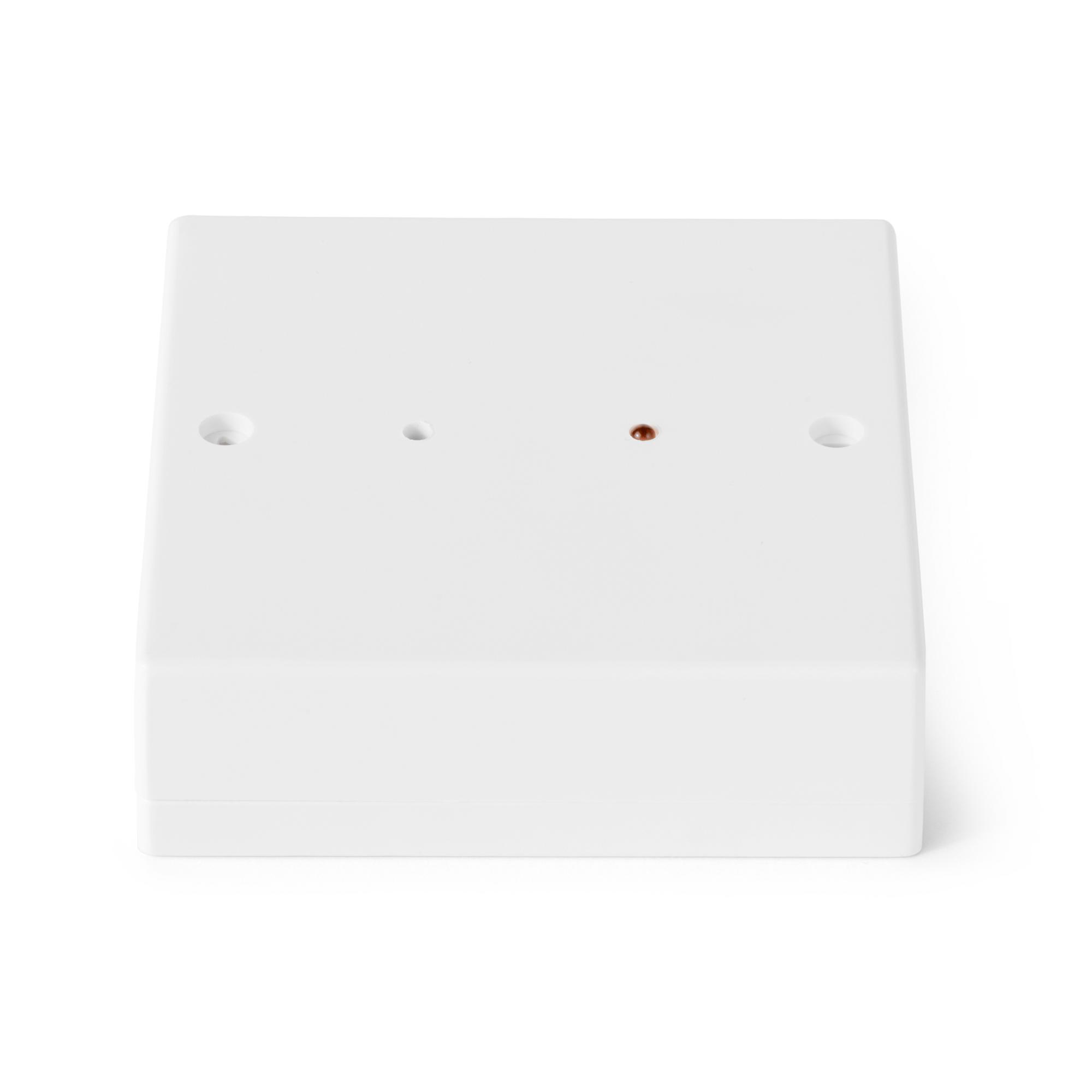

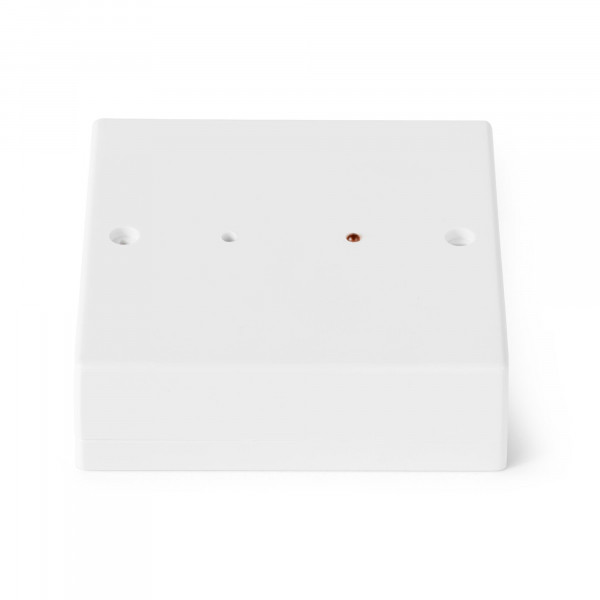

The Relay-Interface is needed, if the line doesn’t allow to connect glass break detectors. This could happen because of several reasons: At series-technology, digital supervision or if the line-voltage is below 3 V. As a connecting link between a glass break detector and the panel, the Relay-Interface can be connected at or in each loop because of it’s floating relay-contact. The electronic is placed in a plastic case. It allows the lead-in of wire on three sides. The housing-cover is monitored against unauthorized opening by a tamper-switch. Secondary Packaging: 25 Units

Luk menu

Bruttovægt (KG)	0.08
Købs Enhed	PCE
EAN/UPC-Kode:	4025515478911
mindste bestilling	1
ECCN	N
Materialekode	V54550-F112-A100
Statistisk kode	85311030
Nettovægt	0.076
Oprindelsesland	DE

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Quiescent current:	5 mA
EOL resistor:	2.2 kΩ
Approval:	VdS Klasse B (pending)
Housing material:	S-B, A-B-S
Operating temperature:	30 °C ~ 60 °C
Switching voltage:	Max. 24 VDC
Current consumption, quiescent:	5 mA
Current consumption:	13.5 mA
Environmental class:	II
Contact resistance:	5 Ω
Switching current:	Max. 200 mA
Supply voltage:	10 ~ 15 V DC
