GB-5300-6 Glassbreak detector,6m

Forhåndsvisning: GB-5300-6 Glassbreak detector,6m Forhåndsvisning: GB-5300-6 Glassbreak detector,6m
GB-5300-6 Glassbreak detector,6m
GB-5300-6 Glassbreak detector,6m

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54535-F102-A200
  • EAN/UPC-Kode: 4025515478461
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "GB-5300-6 Glassbreak detector,6m"

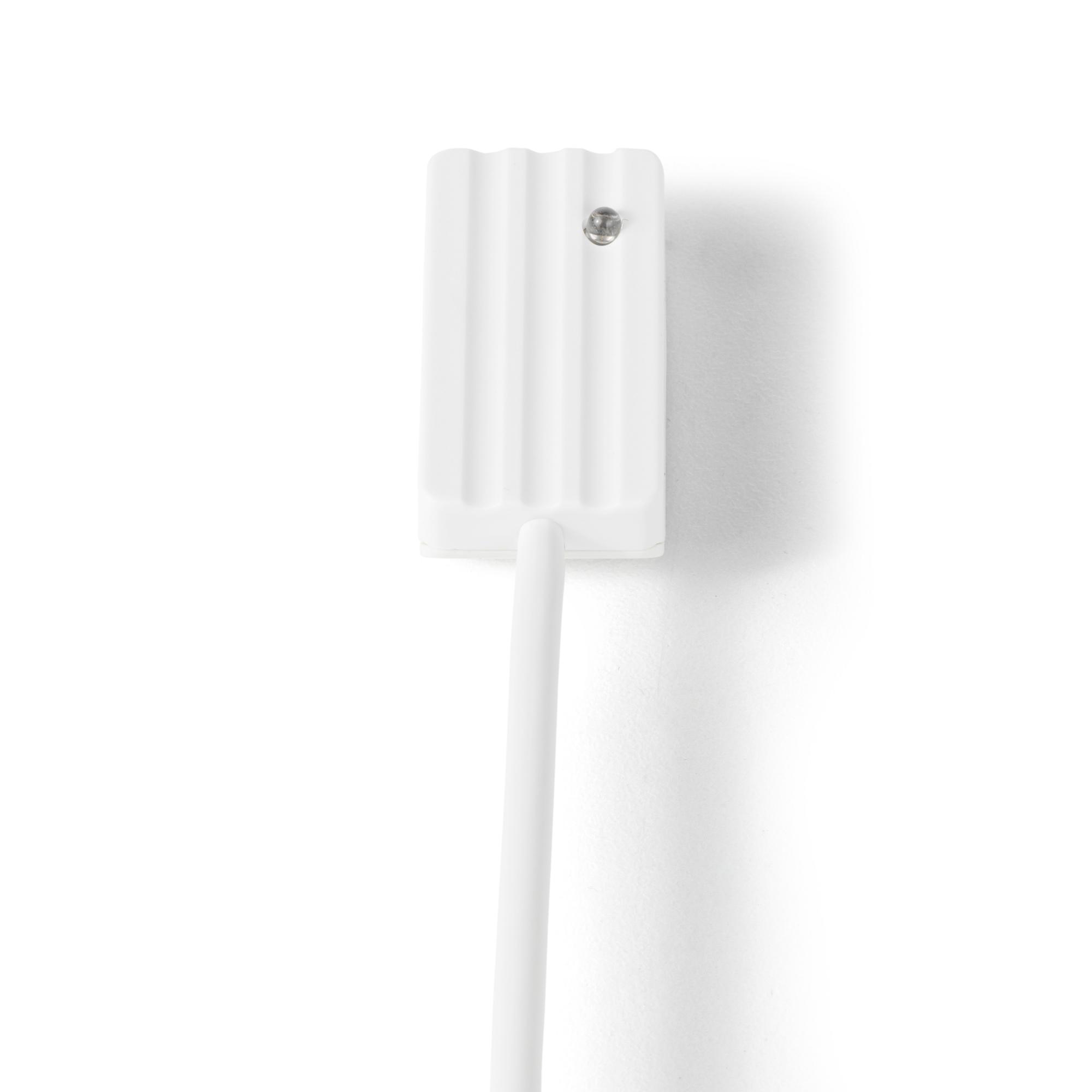

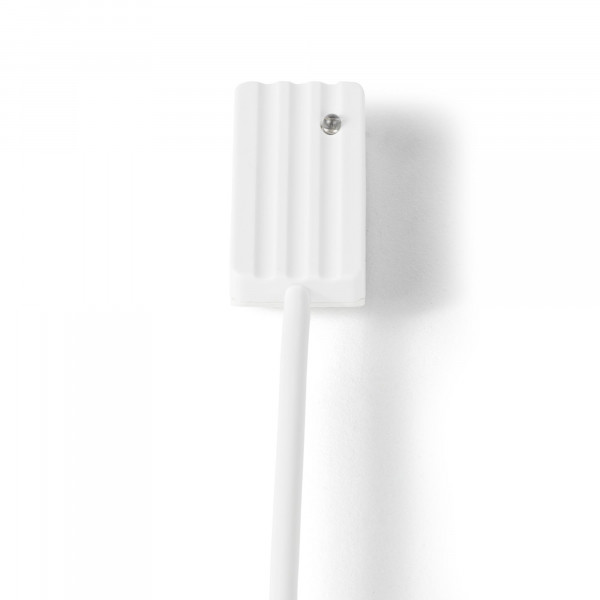

The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit. Secondary Packaging: 25 Units
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.17
Købs Enhed PCE
EAN/UPC-Kode: 4025515478461
mindste bestilling 1
ECCN N
Materialekode V54535-F102-A200
Nettovægt 0.102
Statistisk kode 85311030
Oprindelsesland DE
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Quiescent current: ˂1 µA (ca. 20 nA)
Reset voltage: Max. 1 V
Current consumption, quiescent: ˂1 µA (ca. 20 nA)
Supply voltage: 3 – 16 V DC
Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
Environmental class: III
Housing protection: IP67
Housing material: S-B
Operating temperature: -25 ~ 70 °C
Cable length: 6 m
Current consumption: 4 mA (6 VDC)
Dokumentation
