MAGS-S Glas break det. set.active,white

MAGS-S Glas break det. set.active,white
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: VDE6:9912400013
  • EAN/UPC-Kode: 4025515476801
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu

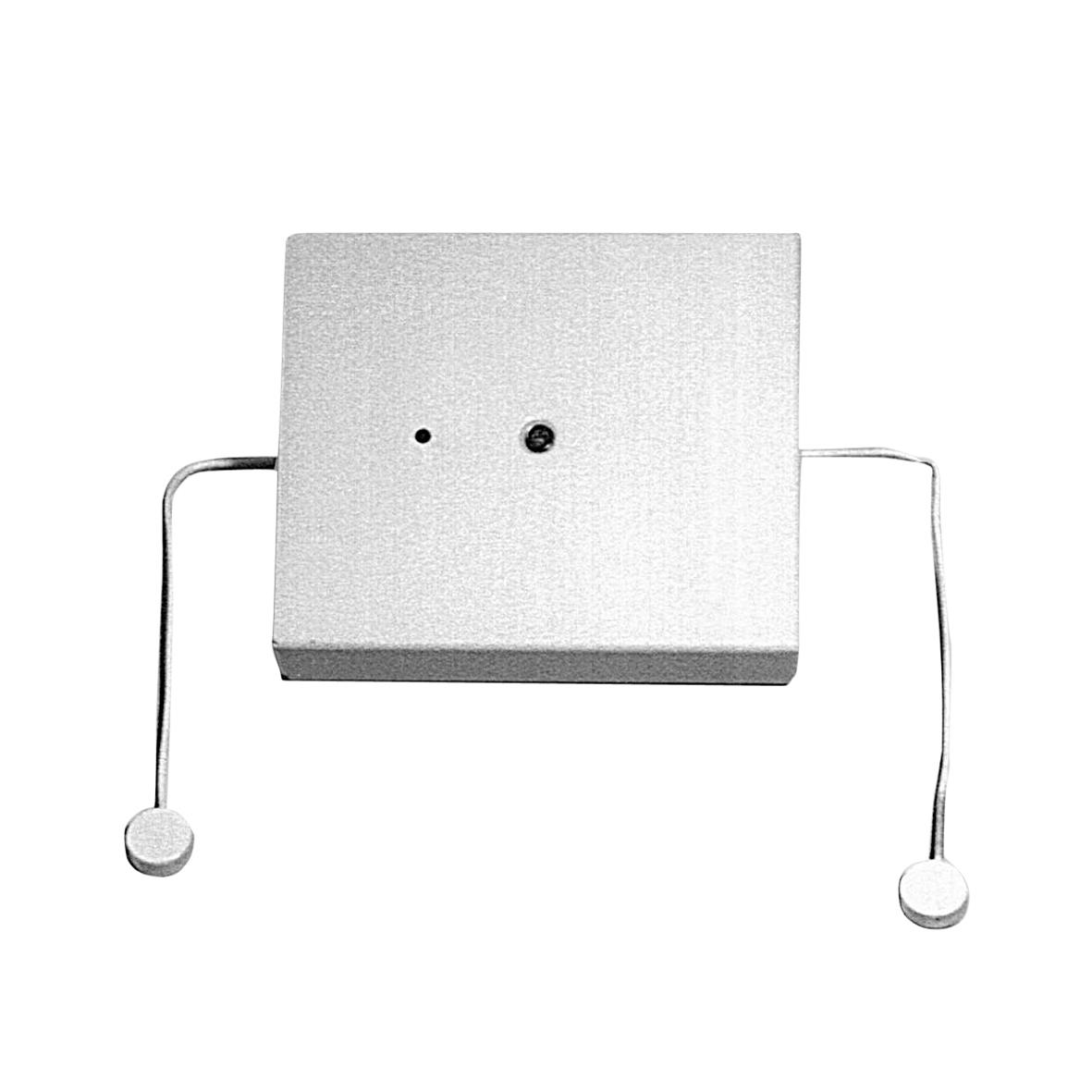

Produkt information "MAGS-S Glas break det. set.active,white"
The Active glass break detector MAGS-S consists of the evaluation unit and 2 equal sensors (transmitter and receiver) glued on the pane of glass. No adjustment works are necessary after the assembly. No false alarm is to be expected even at big alterations of the glass-, frame-construction caused by environmental influences like heat, cold and aging because of the automatic adjustment of the sensors to the pane of glass. The Active glass break detector MAGS-S is available for almost all types of glass within a frame construction with undamaged panes.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.47
Købs Enhed PCE
EAN/UPC-Kode: 4025515476801
mindste bestilling 1
ECCN N
Materialekode VDE6:9912400013
Statistisk kode 85311030
Nettovægt 0.456
Oprindelsesland DE
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Dimensions (L x W x H): 25 x 110 x 90 (mm)
Weight: 0.450 kg
Colour: RAL 9010 (white)
Operating temperature: -10 ~ +75 °C
Housing protection: IP31
Tamper contact: max. 25 VDC / 30 mA
Range: 25 m²
Alarm output: max. 25 VDC / 30 mA
Current consumption: 18 mA
Approval: VdS geprüft, Klasse C VSÖ geprüft, Klasse WS
Housing material: ABS
Supply voltage: 10.4 ~ 15 VDC
Dokumentation
