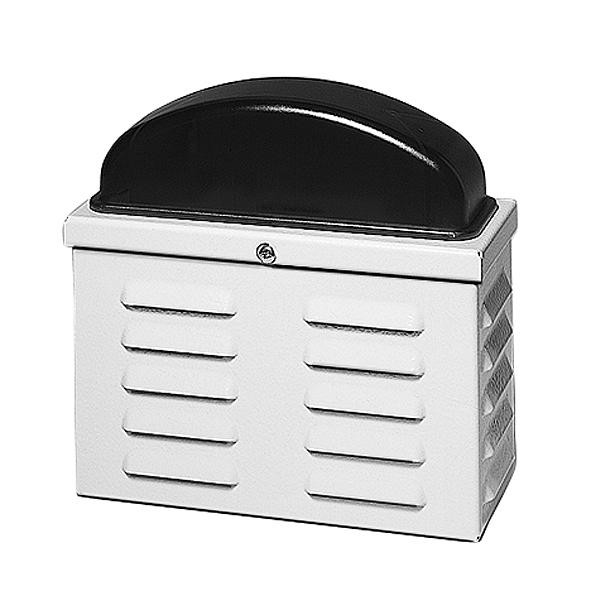

SG3200AK/OP Compact alerting

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • NDE6:9908440013
  • 4025515476597
Produkt information "SG3200AK/OP Compact alerting"
The protective housing is made of powder-coated aluminum (1.5 mm) with corrosion-resistant protective coating, an interior sheet as extra protection against sabotage and a cover contact. The siren is equipped with a range of tones for burglary and fire. Fully assembled and ready to connect to all Sintony and ACP panels.
Bruttovægt (KG) 1.31
Købs Enhed PCE
EAN/UPC-Kode: 4025515476597
mindste bestilling 1
ECCN N
Materialekode NDE6:9908440013
Oprindelsesland DE
Nettovægt 1.245
Statistisk kode 85311095
Weight: 1,600 kg
Sound level: 100 dB(A)
Power supply: 12 VDC
Housing material: Aluminium
Frequency: 1,2 Hz
Current consumption: Sirene ca. 350 mA Blitzleuchte ca. 200 mA
Colour: grauweiss (RAL 9002)
Approval: VdS Klasse C; G 199005
Environmental class: IV
Dimensions (L x W x H): 193 x 205 x 88 (mm)
