ECO560 Outdoor sounder/beacon

ECO560 Outdoor sounder/beacon
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: N54539-Z134-A100
  • EAN/UPC-Kode: 7330082000203
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "ECO560 Outdoor sounder/beacon"

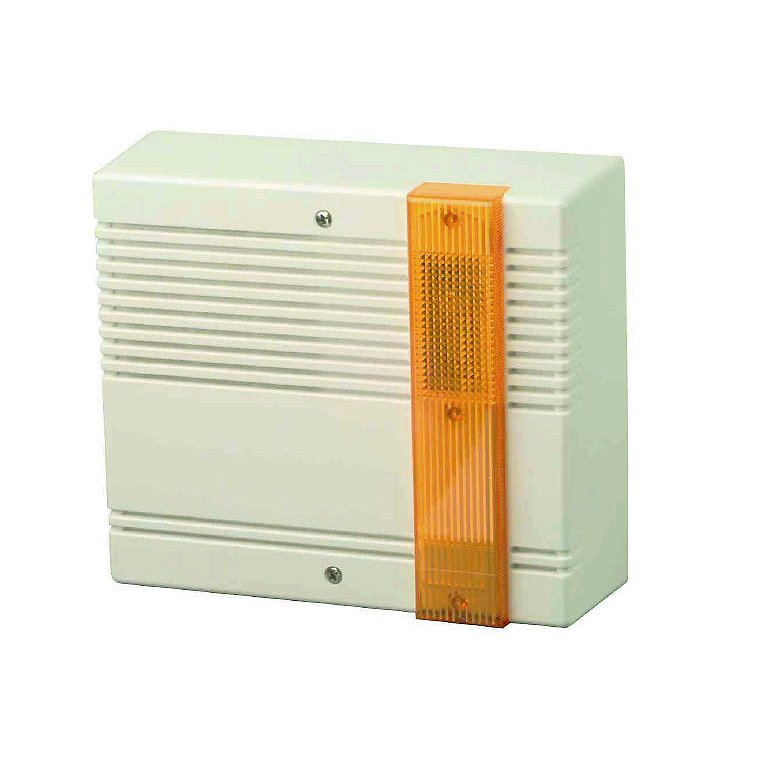

An outdoor acoustic alarm device with a beacon, which is protected against reverse polarity for the internal battery. The device is activated & monitored by the main control panel. Can operate with or without an internal battery.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 2.29
Købs Enhed PCE
EAN/UPC-Kode: 7330082000203
mindste bestilling 1
ECCN N
Oprindelsesland IT
Materialekode N54539-Z134-A100
Nettovægt 2.176
Statistisk kode 85311095
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Operating voltage: 9 ~ 13.8 VDC
Dimensions (L x W x H): 197 x 226 x 83 (mm)
Sound level: 106 dB at 1m
Quiescent current: 15mA Alarm siren & recharge 500mA +/-100mA Alarm - Siren from battery 1.3A +100/-300mA Alarm strobe - 90mA +/-10mA
Operating current: Siren - 500mA +/- 100mA from control panel
Housing: Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Housing material: Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Protection rating: IP44
Tamper protection: Front cover and removal
Weight: 2,500 kg
Approval: VSÖ: W 170227/04 E, Klasse WS
Battery: 12 V / 2 Ah
Frequency: 1474 Hz
Operation temperature: -25 ~ +55°C
Dokumentation
