EMK46LSA-W4M Instal.magn.cont.,white,4m

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • VDE6:9906360013
  • 4025515476719
Produkt information "EMK46LSA-W4M Instal.magn.cont.,white,4m"

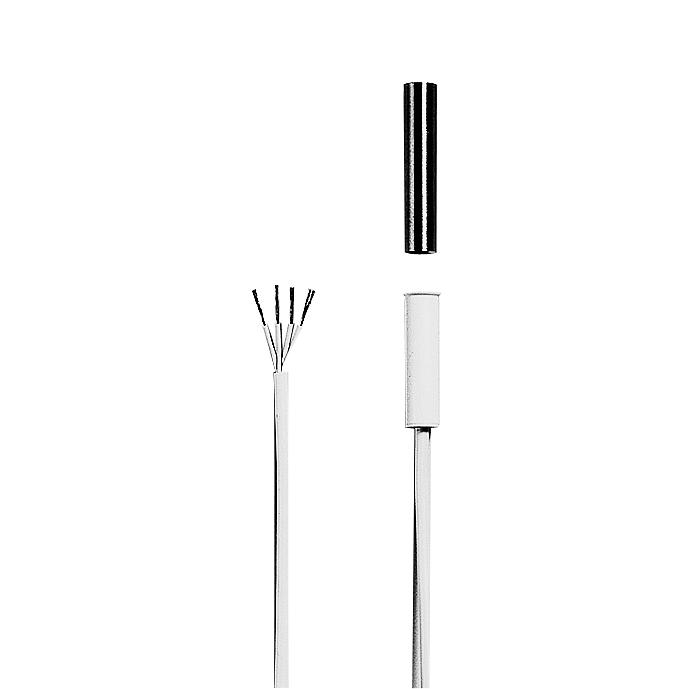

Recess mount magnetic contact suitable for doors and windows surveillance. High fuctional reliability through an integrained carrier board for the reed contact. For surface mounting the EMK-AT can be used.
Bruttovægt (KG) 0.065
Købs Enhed PCE
EAN/UPC-Kode: 4025515476719
mindste bestilling 1
ECCN N
Materialekode VDE6:9906360013
Oprindelsesland DE
Nettovægt 0.065
Statistisk kode 85365080
Contact resistance: 0.15 Ω
Cable length: 4 m
Supply voltage: max. 40 VDC
Housing material: SB, ABS
Colour: White
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Housing protection: IP67
Approval: VdS geprüft, Klasse B, Nr.: G 191563 VSÖ geprüft, Klasse GS-H, Nr.: G 020703/22
