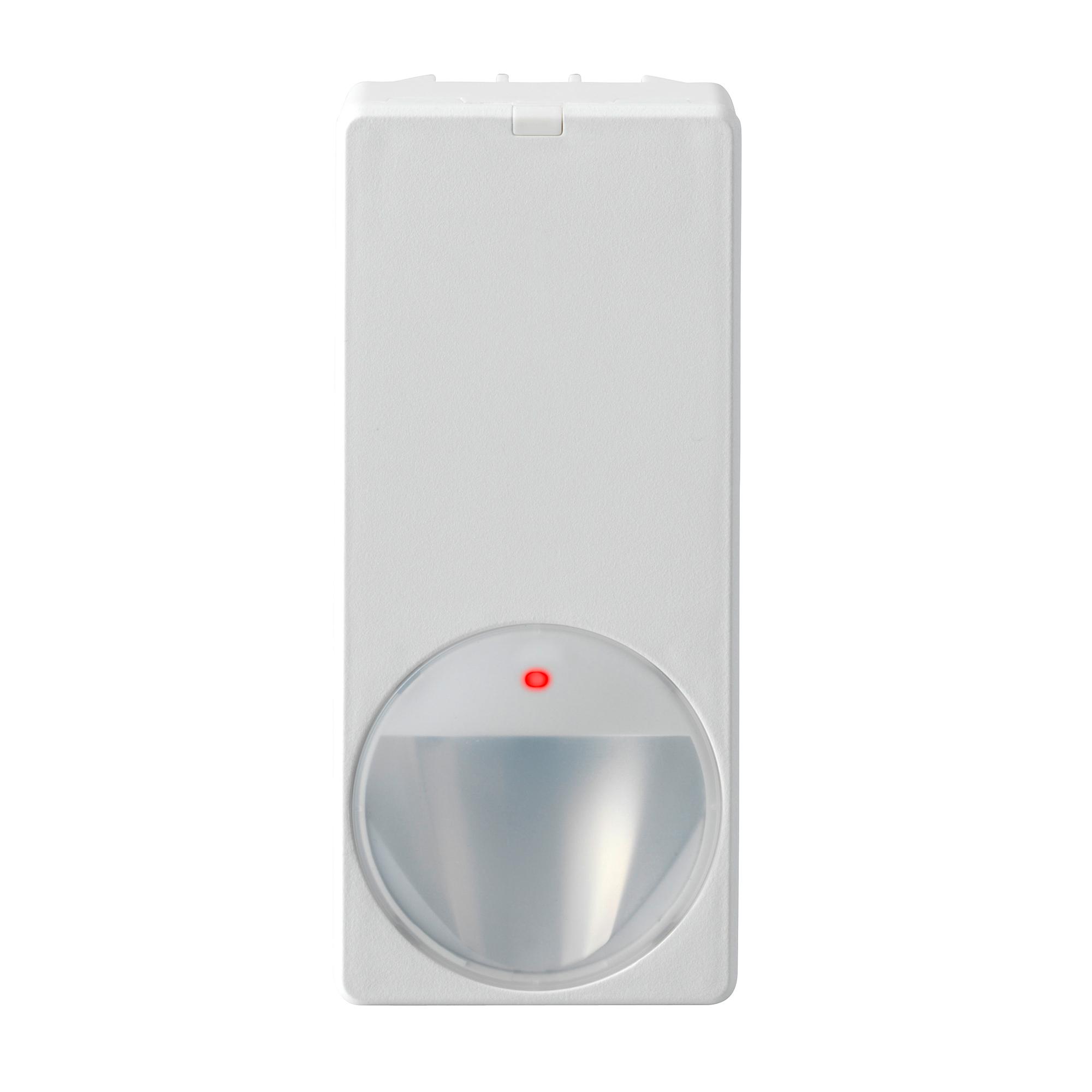

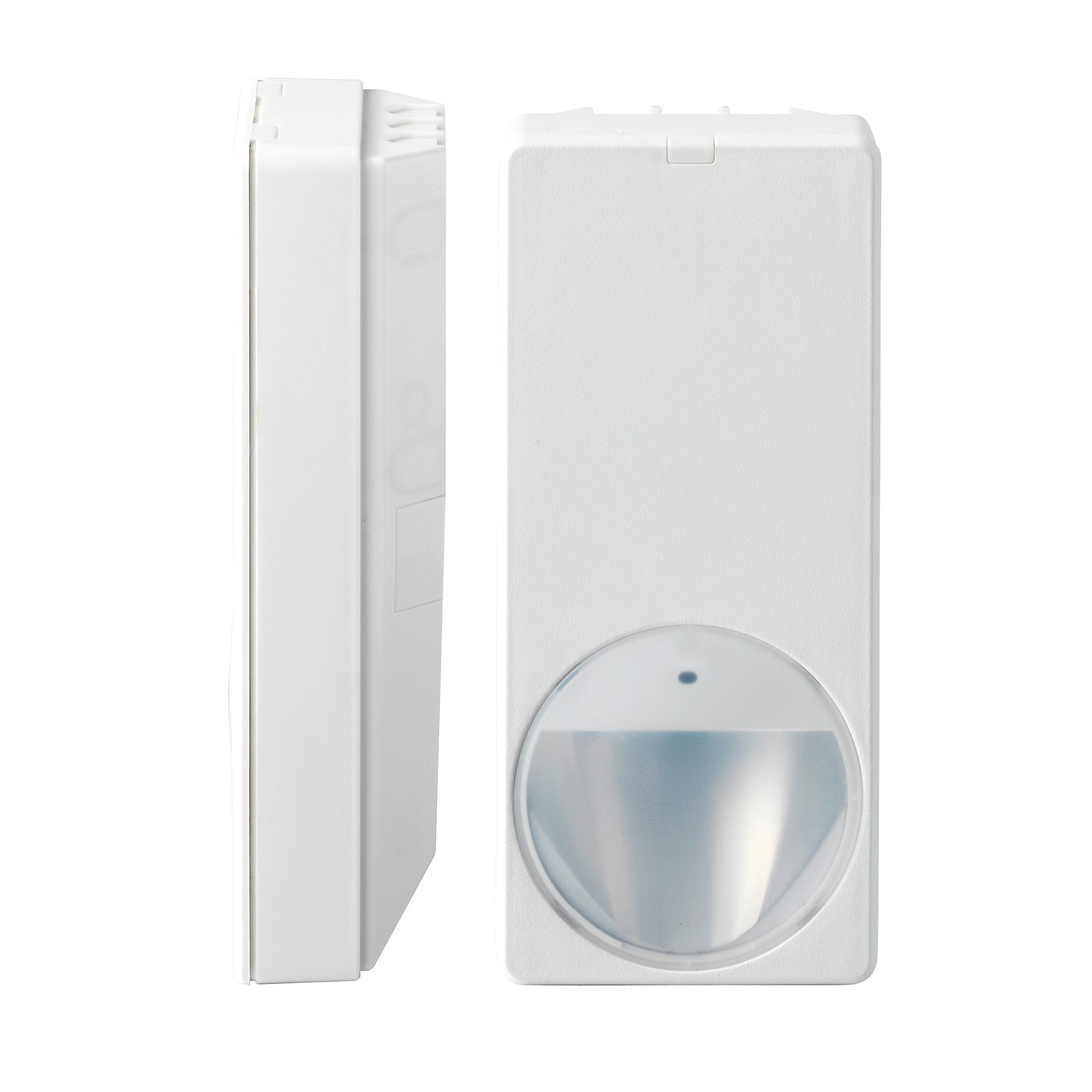

PDM-I12T(50) PIR AM detector (50pcs)

Forhåndsvisning: PDM-I12T(50) PIR AM detector (50pcs) Forhåndsvisning: PDM-I12T(50) PIR AM detector (50pcs)
PDM-I12T(50) PIR AM detector (50pcs)
PDM-I12T(50) PIR AM detector (50pcs)

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: L54543-F105-A100
Beskrivelse Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "PDM-I12T(50) PIR AM detector (50pcs)"
Product information "PDM-I12T PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Import og eksport
Bruttovægt (KG) 0.1
Købs Enhed
mindste bestilling 1
Statistisk kode 85311030
ECCN EAR99
Oprindelsesland RO
Nettovægt 0.100
Materialekode L54543-F105-A100
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Colour: RAL9003
Current consumption: 3.9mA (rms) 6.6mA (max peak)
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature: -10° ~ +55°C
Outputs: 30VDC / 100mA, NC
Sensitivity evaluation mode: 4 settings
Storage temperature: -20°C ~ +60°C
Supply voltage: 9 ~ 16VDC (12V nom.)
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Walking speed: 0.1 ~ 4m/s
Weight: 0.095kg
Dimensions (L x W x H): 57 x 128 x 32 (mm)
Housing protection: IP41 / IK02
Approval: EN50131-2-2 Grade 3 VdS Class C
Air humidity (EN 60721): < 85% RH, non-condensing
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Range: Volumetric / 12m
