GB-5100-6 Glassbreak detector,6m,relay

Forhåndsvisning: GB-5100-6 Glassbreak detector,6m,relay Forhåndsvisning: GB-5100-6 Glassbreak detector,6m,relay

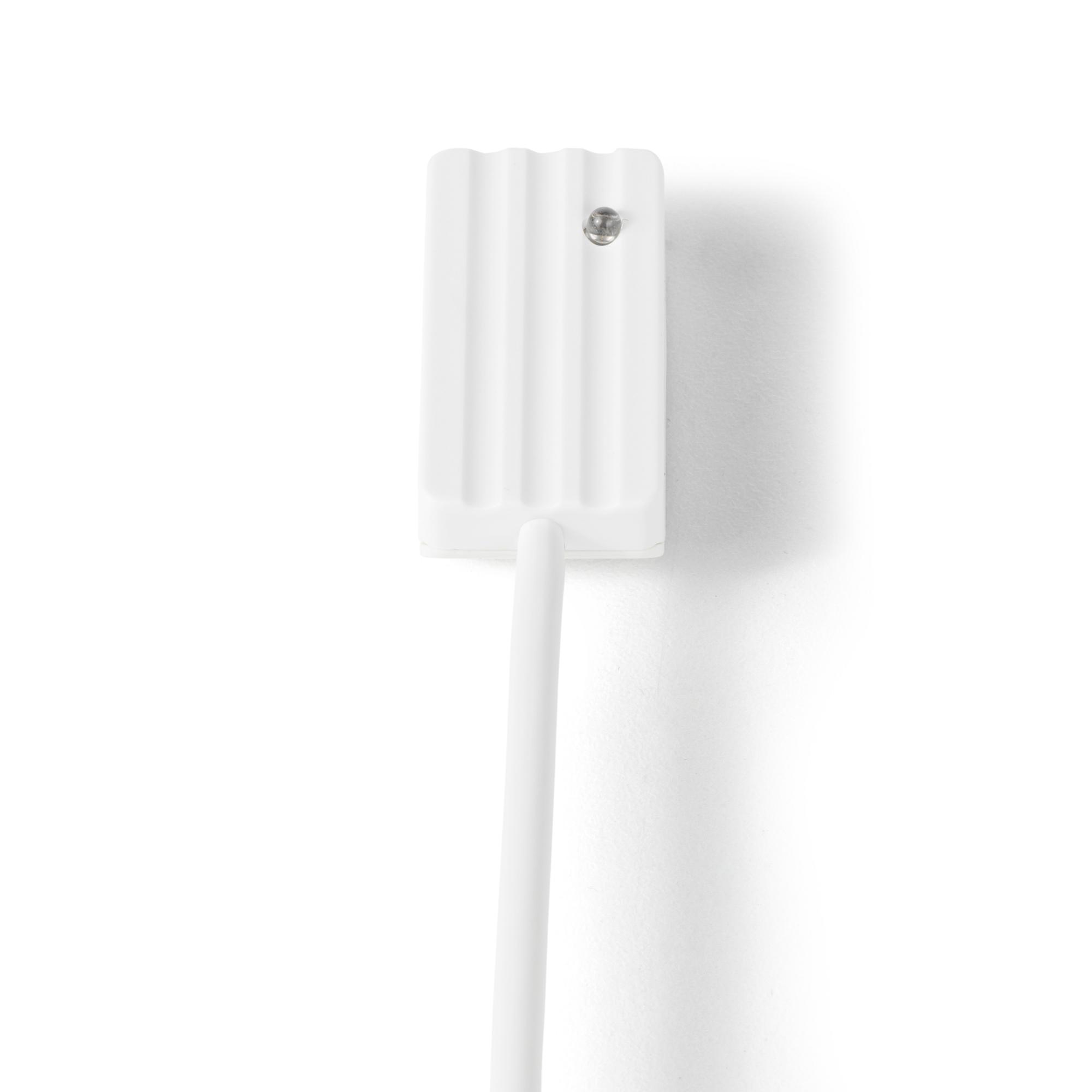

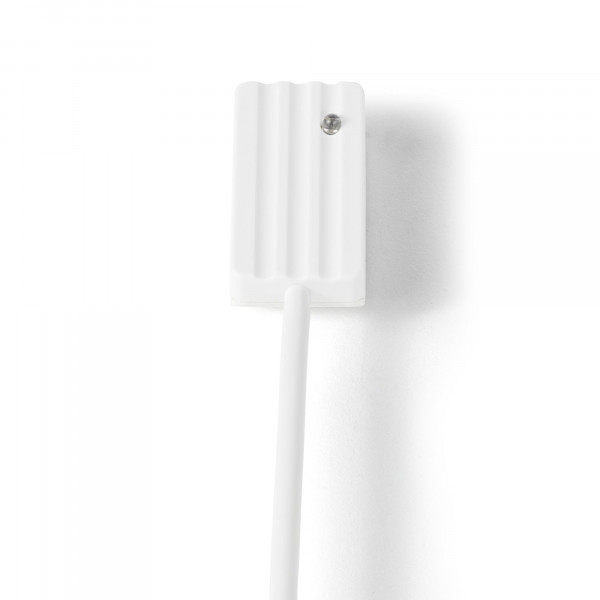

GB-5100-6 Glassbreak detector,6m,relay
GB-5100-6 Glassbreak detector,6m,relay

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54535-F101-A200
  • EAN/UPC-Kode: 4025515478447
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "GB-5100-6 Glassbreak detector,6m,relay"
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The GB-5100 detectors with relay output and LED indication can be used in smaller installations (1-5 pcs). Secondary Packaging: 25 Units
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.145
Købs Enhed PCE
EAN/UPC-Kode: 4025515478447
mindste bestilling 1
ECCN N
Materialekode V54535-F101-A200
Nettovægt 0.138
Statistisk kode 85311030
Oprindelsesland DE
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Environmental class: III
Housing protection: IP67
Housing material: S-B
Contact resistance: 5 Ω
Reset voltage: Max. 2 V
Operating temperature: -25 ~ 70 °C
Cable length: 6 m
Range: Radius: 2 m
Switching current: Max. 200 mA
Switching voltage: Max. 24 V DC
Supply voltage: 8 - 18 VDC
Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
