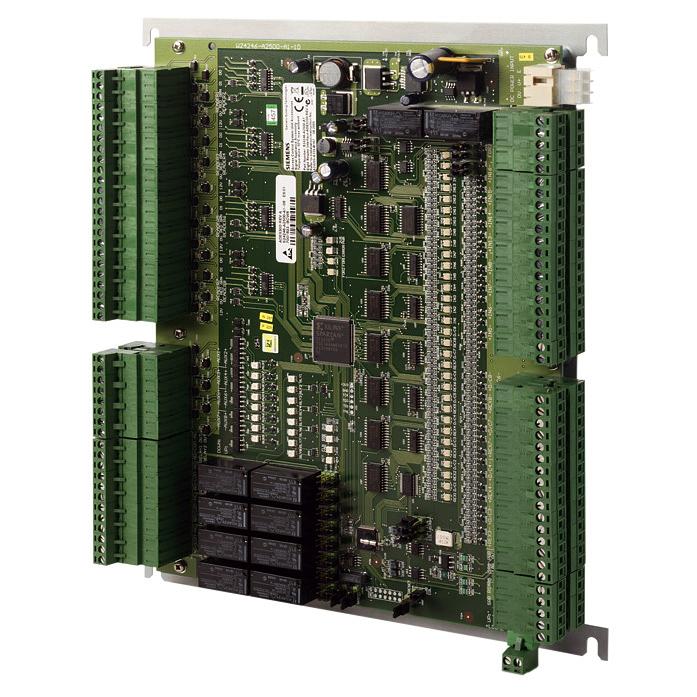

ADE5300 Eight Reader Interface

ADE5300 Eight Reader Interface
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V24246-A2500-A1
  • EAN/UPC-Kode: 4025515475316
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "ADE5300 Eight Reader Interface"
The ADE5300 provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and up to 8 card readers. From the ADE5300‚ the information held within the access cards is transmitted to the controller. Each time an access attempt is made the controller verifies the data on the ID card and will then either allow or deny access. The ADE5300 can be configured to control up to 8 doors separately or up to 4 doors that include both entry and exit readers. All variations are possible; for example‚ you can have six single-reader doors and 1 dual-reader door connected to one ADE5300.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 1.6
Købs Enhed PCE
EAN/UPC-Kode: 4025515475316
mindste bestilling 1
ECCN N
Oprindelsesland HU
Materialekode V24246-A2500-A1
Nettovægt 1.520
Statistisk kode 84733020
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Interface: FLN connection to controller: RS485 To readers: Support for eight readers via RS485 or Wiegand
Interfaces: FLN connection to central controller: RS485 Connection to readers: support for 8 RS485 or Wiegand readers
Approval: CE, UL294, C-Tick
Weight: 1.65 kg
Indicators: Power, Activity, FLN Communication, Reader bus communication, Input/output, Fire override
Inputs: 8 x Door contact 8 x Request-to-exit 16 x Auxiliary All inputs unsupervised or supervised 2 x Fire override (normal or enhanced mode)
Outputs: 8 x Lock output relay (30 VDC, 2 A) 8 x Open-collector output (100 mA, 9.7-12 VDC) 2 x Fire override relay (30 VDC, 2 A)
Current consumption: Max. 2 A at 12 V, max. 1.5 A at 24 V
Power output: Reader: 8 x 400 mA‚ 12 VDC Ancillary: 1 x 1.5 A‚ 12 VDC
Operating voltage: 12 VDC ±10 % or 24 VDC -± 10 %
Tamper switch: Optional, auxiliary input
Firmware: Flash upgradeable
Dimensions (W x H x D): 250 x 287 x 50 (mm)
