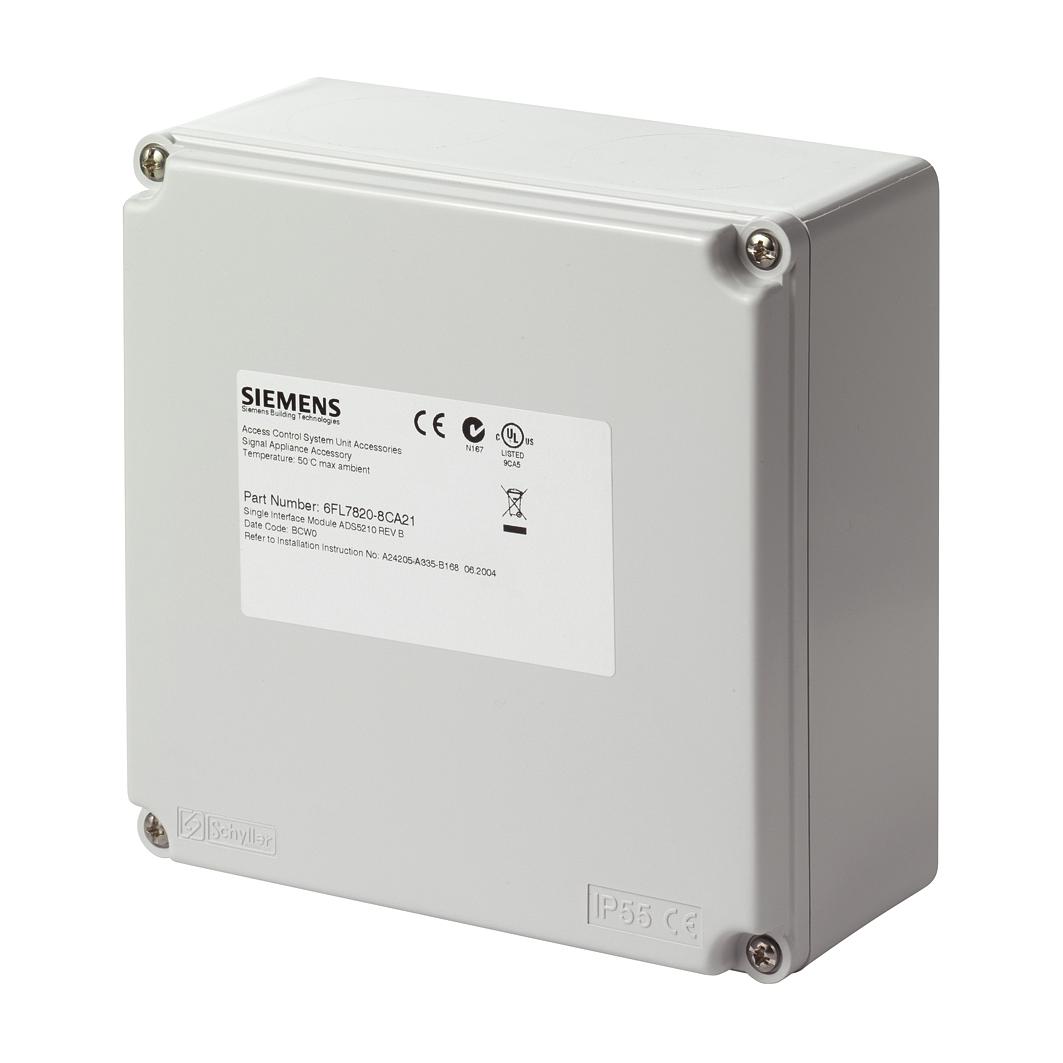

ADS5210 Single Reader Interface

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: V6FL7820-8CA21
EAN/UPC-Kode: 4025515475118

Luk menu

Produkt information "ADS5210 Single Reader Interface"

The ADS5210 provides a Clock&Data/Wiegand interface between a card reader and the advanced central controller (AC5100‚ AC5102 or AC5200) for one card reader. When a cardholder presents the access card at an entry or exit reader the ADS5210 reader interface interprets the encoded information and sends this data to the controller. The controller then checks the validity of the cardholder‚ and if the appropriate permissions have been assigned‚ the controller sends a message back to the reader interface allowing it to unlock the door and provide passage. It can also report the status of the door (locked or unlocked) at any time. Note: The ADS5210 does not have an RS485 interface for card readers. It supports Clock&Data or Wiegand readers only.

Luk menu

Bruttovægt (KG)	0.55
Købs Enhed	PCE
EAN/UPC-Kode:	4025515475118
mindste bestilling	1
Oprindelsesland	HU
ECCN	EAR99
Materialekode	V6FL7820-8CA21
Nettovægt	0.523
Statistisk kode	84733020

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Firmware:	Flash upgradeable
Interfaces:	FLN connection to central controller: RS485 Connection to readers: Clock & Data or Wiegand port
Housing material:	Plastic ABS
Interface:	FLN connection to controller: RS485 To readers: Clock&Data or Wiegand port
Inputs:	1 x REX-button 1 x Door contact 2 x Auxiliary All inputs unsupervised or supervised
Outputs:	1 x Lock output relay (30 VDC‚ 2 A) 1x Open-collector output (100 mA‚ 12 VDC)
Power consumption:	12 W
Operating voltage:	12 VDC ±20 %
Approval:	CE
Weight:	0.55 kg
Housing:	ABS plastic
Housing protection:	IP55
Indicators:	Power‚ Activity‚ Communication
Tamper switch:	Optional‚ auxiliary input
Dimensions (W x H x D):	150 x 150 x 76 (mm)
