AC5200 SiPass integrated ACC-Lite

Forhåndsvisning: AC5200 SiPass integrated ACC-Lite Forhåndsvisning: AC5200 SiPass integrated ACC-Lite

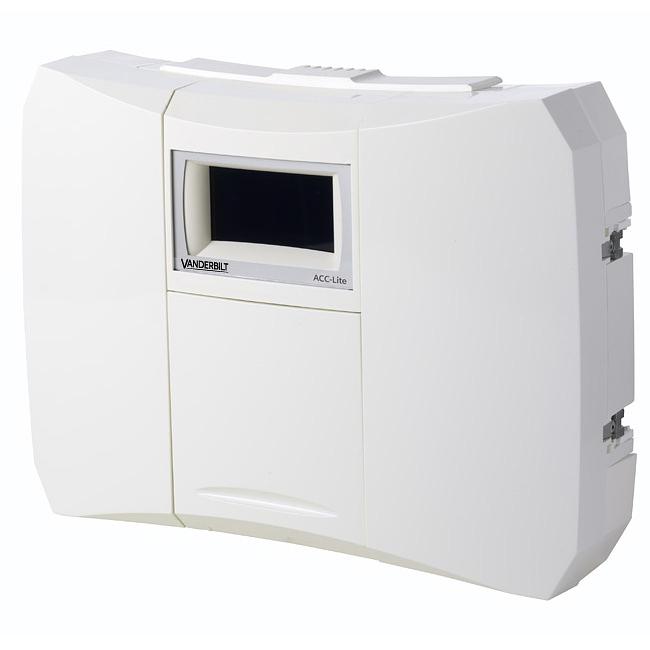

AC5200 SiPass integrated ACC-Lite
AC5200 SiPass integrated ACC-Lite

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54507-C5-A1
  • EAN/UPC-Kode: 4025515474005
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "AC5200 SiPass integrated ACC-Lite"
The AC5200 is a smaller version of Vanderbilt’ high-performance IP-based advanced central controller models (AC5100 and AC5102). It can manage up to 40‚000 cardholders. The ACC-Lite has been specially designed to provide a low-cost alternative for smaller or branch installations. It provides one field level network (FLN) channel which is capable of hosting up to 8 doors for access control, monitoring input devices or controlling output devices. Firmware can be easily downloaded or updated via TCP/IP connection without having to visit the controller cabinets. Communication with the host system occurs via a two-port Ethernet switch which provides 10/100Mb LAN connection. This makes it possible to “daisy chain” controllers. TCP/IP communication ensures the fastest possible transaction times between the host system and the field panels. In case of power failure the database on the ACC-Lite is protected in battery-backed memory. This maintains the integrity of the access control data and ensures that the ACC-Lite is back online as soon as power is restored.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.98
Købs Enhed PCE
EAN/UPC-Kode: 4025515474005
mindste bestilling 1
Oprindelsesland PH
ECCN 5A992
Statistisk kode 84715000
Nettovægt 0.931
Materialekode V54507-C5-A1
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Housing: Plastic housing for wall mounting
Power consumption: 24 W
Door capacity: Eight
Card capacity: 40,000
LCD Display: Alphanumeric
Keypad: 4 x 4 matrix
Tamper switch: Integrated
Weight: 0.70 kg
Interface: Communication interfaces: RS232, RS485, TC/IP for LAN/WAN - RJ45: 2 x Points, 10/100 MB Ethernet (Switched) - RS485: FLN interface, two-wire, max. eight devices per FLN bus. - RS232 modem communications
Approval: CE, C-Tick
Interfaces: Interfacce di comunicazione: RS232, RS485, LAN/WAN TCP/IP - TCP/IP (RJ45): 2x punti, Ethernet 10/100 MB (Switched) - RS485: interfaccia FLN , due fili, max. 8 dispositivi. - RS232: comunicazione modem
Housing material: Contenitore in plastica per montaggio a parete
Operating temperature: 0 ~ +50 °C
Dimensions (W x H x D): 248 x 182 x 66 (mm)
Current consumption: 100 mA @24V DC 200 mA @12V DC
Environment: Indoor use only
Colour: White
Operating voltage: 8 ~ 40 VDC‚ 8 ~ 30 VAC
