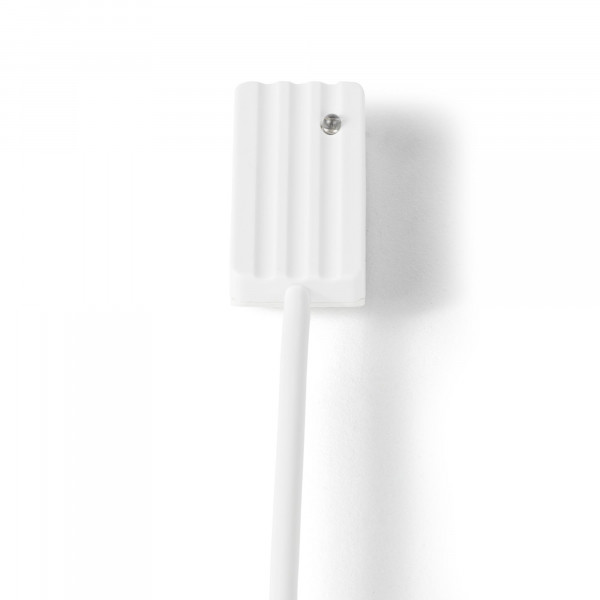

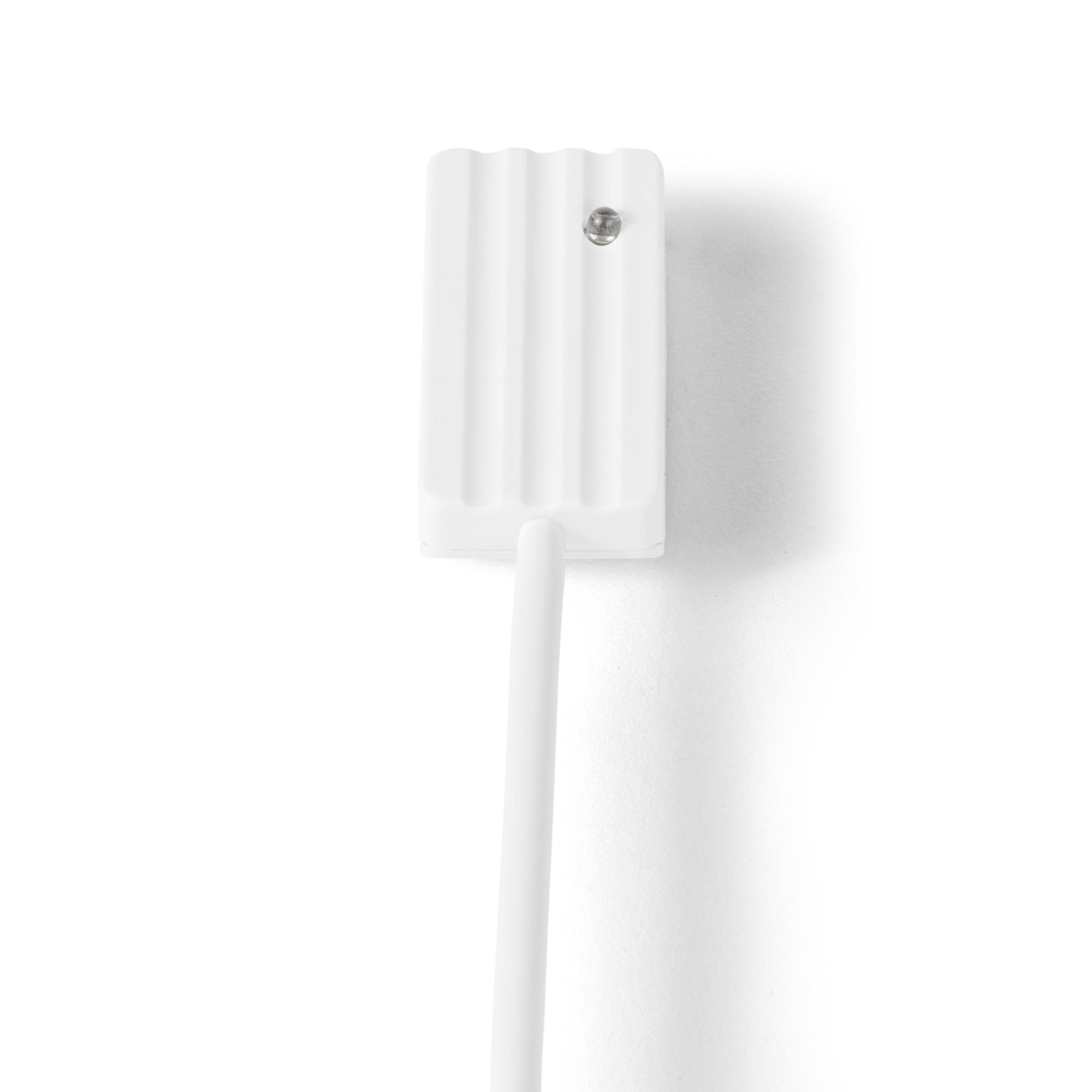

Product information "GB-5100-6 Glassbreak detector,6m,relay"
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The GB-5100 detectors with relay output and LED indication can be used in smaller installations (1-5 pcs). Secondary Packaging: 25 Units
|Contact resistance:||5 Ω|
|Reset voltage:||Max. 2 V|
|Operating temperature:||-25 ~ 70 °C|
|Cable length:||6 m|
|Range:||Radius: 2 m|
|Switching current:||Max. 200 mA|
|Switching voltage:||Max. 24 V DC|
|Supply voltage:||8 - 18 VDC|
|Approval:||VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)|
- Datasheet (German) - gb51006
- Datasheet (English) - gb51006
- Datasheet (Swedish) - gbgb51006
- Installation instructions (Multilingual) - gb51006
- Certificate (CE) - Issued by Vanderbilt, on 26/09/2018
- Certificate - Issued by VdS, on 04/09/2019
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VSÖ, on 30/07/2020
