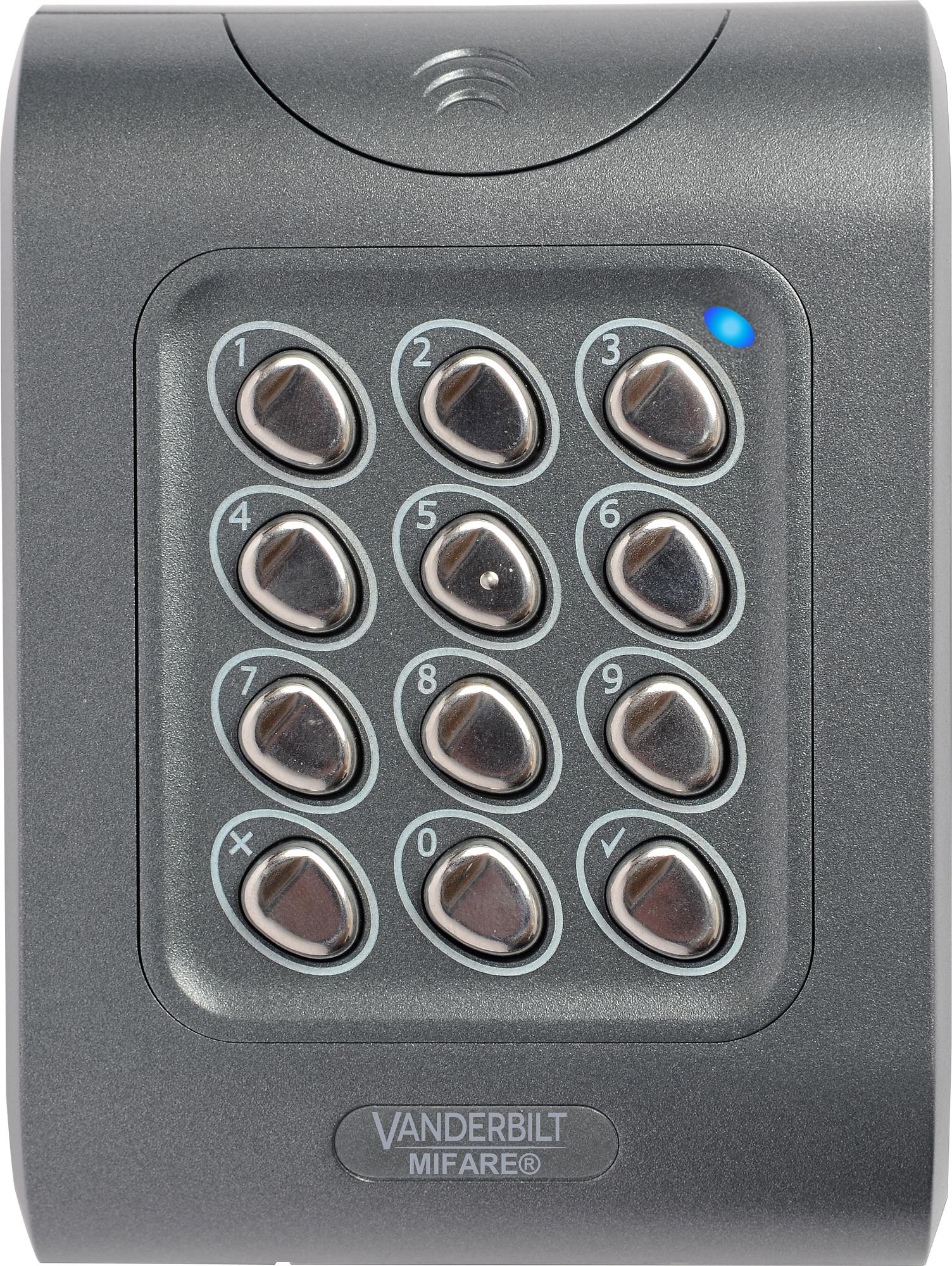

EV1050e ACTpro EV1 Reader with keypad

Preview: EV1050e ACTpro EV1 Reader with keypad Preview: EV1050e ACTpro EV1 Reader with keypad
EV1050e ACTpro EV1 Reader with keypad
EV1050e ACTpro EV1 Reader with keypad

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F124-A100
  • EAN/UPC-Code: 7330082004515
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "EV1050e ACTpro EV1 Reader with keypad"
MIFARE DESFire EV1 cards are smartcards that contain memory that enable multiple applications to read and write data to and from the card. MIFARE DESFire EV1 card technology is highly secure and is widely used for access control, cashless vending, corporate ID cards, smart printing / copying, transportation and stadium ticketing. MIFARE DESFire EV1 features mutual three pass authentication using 128 bit AES encryption. DESFire EV1 cards can hold up to 28 different applications and 32 files per application. Each MIFARE DESFire EV1 card has a unique serial number.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.33
Purchase unit PCE
EAN/UPC-Code: 7330082004515
Minimum order 1
Statistical code 84719000
Material code V54504-F124-A100
Net weight 0.290
Country of origin CN
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Weight: 0.31kg
Impact rating: IK08
Dimensions (L x W x H): 95mm x 128mm x 21mm
Mounting: Surface/Flush
Connectors: Connector Block
Compatibility: MIFARE ISO 14443A Compatible
Operating voltage: 12 - 24 Volt DC
Keypad: Yes
Operating temperature: -40°C to +70°C
Environment: Indoor & outdoor
Housing protection: IP55
