SPC5320.320-L1 Intrusion CP,G2
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54541-C106-B100
- EAN/UPC-Code: 4025515470731
Description
Certificates
Import & Export
Resources
Technical data
Documentation
Software
Useful Links
Product information "SPC5320.320-L1 Intrusion CP,G2"

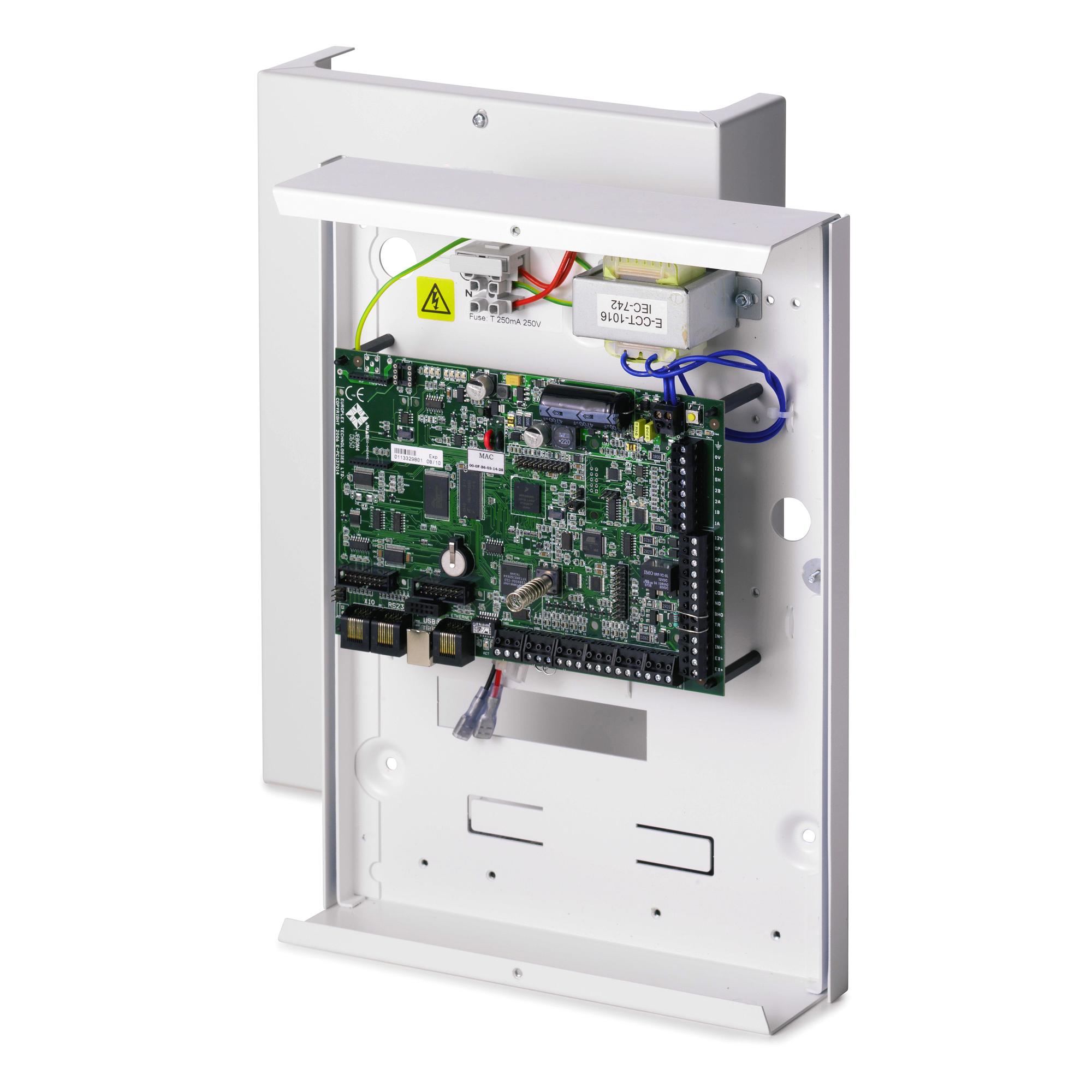

The SPC5320.320 control panel combines in an optimal way intrusion and
access functionality in one system and can be expanded according to
specific customers and project needs with up to 128 zones (8 on-board),
128 outputs (6 on-board), 16 system keypads, 16 doors, 8 verification
zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16
areas, 500 users with different access levels, memory for 10’000
intrusion and 10'000 access events, integrated Web Server, 2 terminals
for the pluggable PSTN and GSM/GPRS communication options, on-board
Ethernet interface. The system is expandable with wireless receivers and
supports up to 64 detectors (mixed with wired zones). The panel comes in
a tamper protected metal housing with space for optional 7 Ah battery
and 1 additional expander.
- Certificate (CE) - Issued by Vanderbilt, on 07/09/2020
- Certificate - Issued by CNPP, on 23/11/2021
- Certificate - Issued by IMQ, on 04/02/2015
- Certificate - Issued by INCERT, on 18/12/2020
- Certificate - Issued by INCERT, on 14/12/2020
- Certificate - Issued by SBSC, on 29/09/2021
- Certificate - Issued by SBSC, on 29/09/2021
- Certificate - Issued by SBSC, on 26/10/2020
- Certificate - Issued by SBSC, on 26/10/2020
- Certificate - Issued by SBSC, on 17/12/2019
- Certificate - Issued by SBSC, on 17/12/2019
- Certificate - Issued by VdS, on 29/11/2019
- Certificate - Issued by KVALITET, on 06/05/2019
- Certificate (PD6662) - Issued by Vanderbilt, on 29/03/2019
- Certificate (PD6662) - Issued by Vanderbilt, on 25/02/2022
- Certificate (MSDS) - Issued by Supplier, on 10/01/2020
- Certificate (UN38.3) - Issued by Supplier, on 19/12/2019
Verification: | 8 verification zones with max. 4 IP-cameras and 8 audio devices. |
Operating current: | Max. 190 mA at 12 VDC |
Quiescent current: | Max. 170 mA at 12 VDC |
Output voltage: | 13-14 VDC in normal conditions (mains powered and fully charged battery) |
Operating temperature: | 0 ~ +40 °C |
Power output: | Max. 750 mA bei 12 VDC |
Remote controls: | Up to 50 |
Max. number of hardwired zones: | 128 |
Door capacity: | Max. 16 entry doors or 8 entry/exit doors |
Video: | Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.) |
Interfaces: | 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45) |
Tamper contact: | Front spring tamper, 2 auxiliary tamper contact inputs |
Weight: | 4.500 kg |
Housing: | Small metal housing (1.2 mm mild steel) |
Approval: | EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 |
IP-Communication: | Yes |
Language: | Multi-language support (en + 4 imported language files).Available language files: de, en, es, fr, it, nl, sv. |
Max. number of wireless zones: | 64 (take away wired zones) |
Firmware: | 3.8.5 |
Mains voltage: | 230 VAC, + 10%/ -15%, 50 Hz |
Audio: | Up to 60 sec. pre / 60 sec. post audio recording |
Number of on-board relays: | 1 strobe (30 VDC / 1 A resistive switching current) |
Colour: | RAL 9003 (signal white) |
Event memory: | 10'000 intrusion events, 10'000 access events |
Number of on-board zones: | 8 |
EOL resistor: | Dual 4K7 (default), other resistor combinations selectable |
Dimensions (W x H x D): | 264 x 357 x 81 (mm) |
- Datasheet (German) - spc5320
- Datasheet (French) - spc5320
- Datasheet (Swedish) - spc5320
- Datasheet (English) - spc5320
- Datasheet (Spanish) - spc5320
- Wiring (German) - spc4xxx5xxx6xxxwiring
- Wiring (English) - spc4xxx5xxx6xxxwiring
- Wiring (Spanish) - spc4xxx5xxx6xxxwiring
- Wiring (French) - spc4xxx5xxx6xxxwiring
- Wiring (Italian) - spc4xxx5xxx6xxxwiring
- Wiring (Dutch) - spc4xxx5xxx6xxxwiring
- Wiring (Swedish) - spc4xxx5xxx6xxxwiring
- Installation instructions (Italian) - InstallAndConfig_PDF
- Installation instructions (Dutch) - InstallAndConfig_PDF
- Installation instructions (Danish) - InstallAndConfig_PDF
- Installation instructions (German) - InstallAndConfig_PDF
- Installation instructions (English) - InstallAndConfig_PDF
- Installation instructions (Spanish) - InstallAndConfig_PDF
- Installation instructions (French) - InstallAndConfig_PDF
- Installation instructions (Swedish) - InstallAndConfig_PDF
- Install manual (German) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Spanish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (French) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Italian) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Dutch) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Swedish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - 220_SPC Install and Config_A6V10276959-f_EN_I-200338
- Install manual (Multilingual) - 220_SPC Install and Config_A6V10276959-g_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.5_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.7_EN
- Planning guide (French) - SPC Matrix 3.13.7_FR
- Planning guide (Italian) - SPC Matrix 3.13.7_IT
- Software (Multilingual - Version 04) - spcfwv3.8.5
- Software (English - Version 02) - SPC Power Calculation V3.0
- Software (German - Version 01) - SPC Stromberechnung V3.0
- Firmware (Multilingual - Version 02) - Firmware SPC 3.13.1
- Firmware (Multilingual - Version ) - Firmware (Multilingual - Version 01) - Firmware SPC 3.13.7
- Firmware (Multilingual - Version ) - SPC Firmware 3.14.1_20230904
- Software (Multilingual - Version 01) - SPC Connect Pro 3.14.1 Configuration Tool
