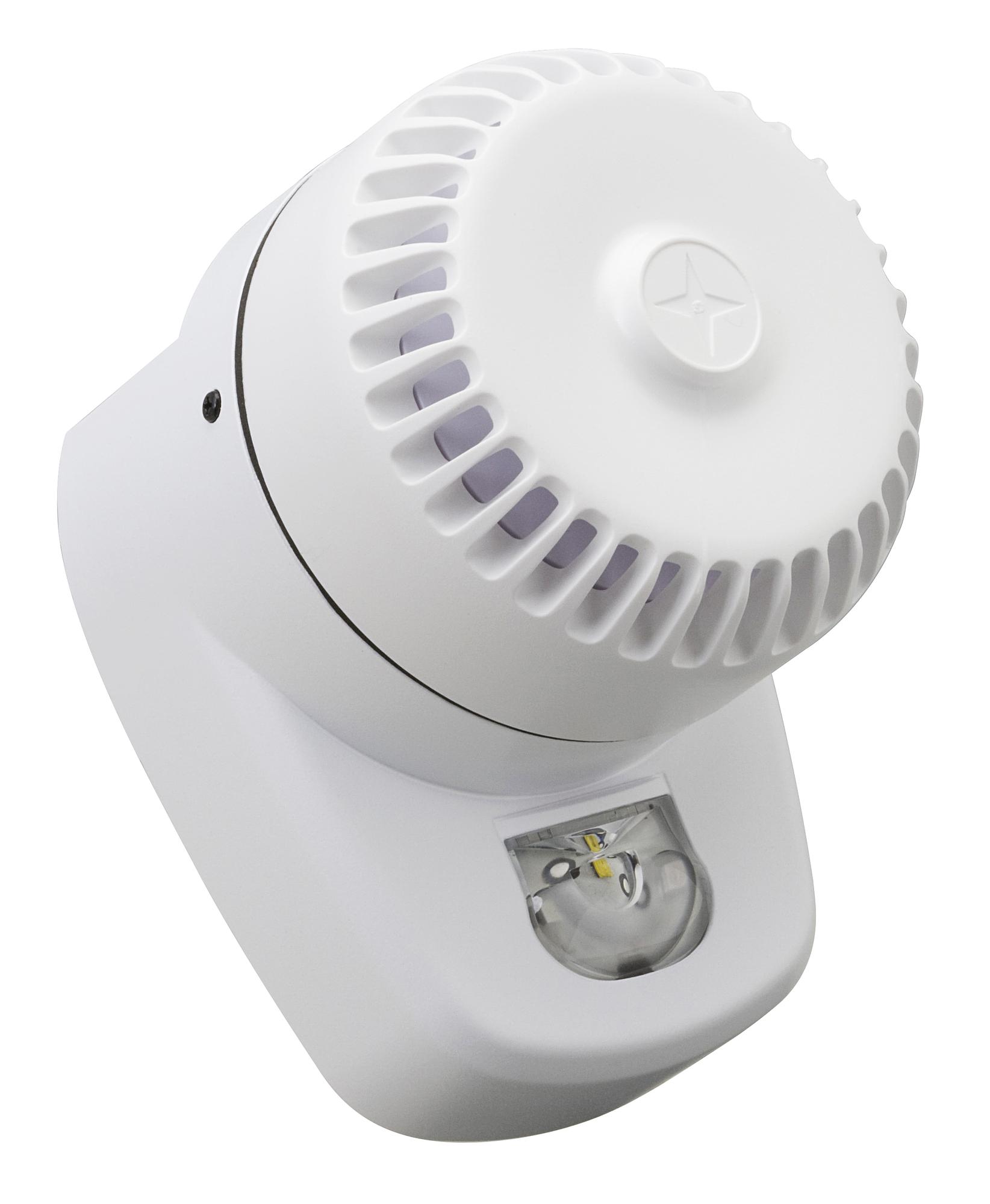

ROLP-LX-W Sounder beacon,wall,white

Preview: ROLP-LX-W Sounder beacon,wall,white Preview: ROLP-LX-W Sounder beacon,wall,white
ROLP-LX-W Sounder beacon,wall,white
ROLP-LX-W Sounder beacon,wall,white

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54539-Z287-A100
  • EAN/UPC-Code: 4025515477785
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ROLP-LX-W Sounder beacon,wall,white"
The RoLP LX Wall base is ideal for dual use applications where a visual alarm device is required in addition to an audible alarm. It is recommended for wall use and requiring just one installation point.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.34
Purchase unit PCE
EAN/UPC-Code: 4025515477785
Minimum order 1
Country of origin GB
ECCN EAR99
Material code N54539-Z287-A100
Net weight 0.323
Statistical code 85311095
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Colour: White (body and flash)
Operating temperature: -25 ~ +70 °C
Range: 135 m^3 (15 m^3)
Frequency: 1 Hz (0.5 Hz)
Current consumption: maximum: 37 mA
Sound level: 102 dB (tone 3)
Power supply: 9 ~ 15 VDC
Weight: 0.2 kg
Housing protection: IP65
Dimensions (W x H x D): 95 x 135 x 95 (mm)
Documentation
