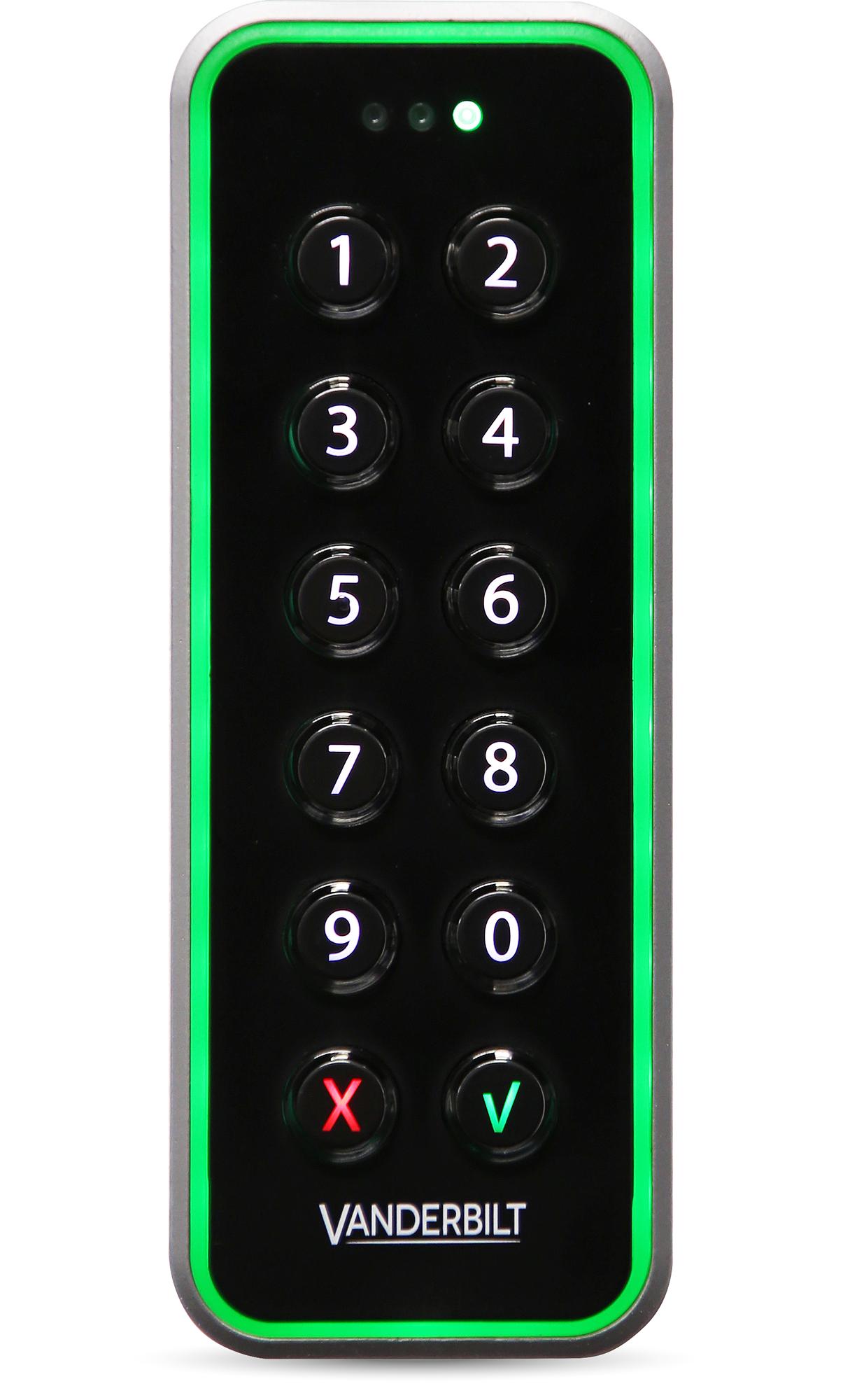

Product information "VR50M-MF NGCR MIFARE EV1 Mullion+keypad"
VR Mullion reader - Modern attractive looking reader with hardwearing materials which endure the most challenging weather conditions. Multicolour programmable light frame on all readers which enhance the look and functionality of the reader. The customer can choose colours for each outcome and rest state. OSDP or Wiegand connectivity supporting MIFARE card technology including EV1 and EV2.
|Air humidity (EN 60721):||5-95% non-condensing|
|Colour:||Black, matt chrome|
|Housing material:||Zinc casted metal bezel with polycarbonate plastic front|
|Approval:||CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)|
|Dimensions (L x W x H):||50mm x 130mm x 22mm|
|Indicators:||3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame|
|Interface to controller:||RS485 / Wiegand|
|Power consumption:||DC 12V = 50mA (150mA Peak); DC 24V = 30mA (100mA Peak)|
|Operating temperature:||-40°C to +70°C (surface mounted) -10°C to +70°C (back box mounted)|
|Housing protection:||IP66 (surface mounted) IP3X (back box mounted)|
|Card compatibility:||MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)|
|Operating voltage:||8.5 – 30.0 VDC|
|Card read distance:||Up to 6 cm|
|Environment:||Indoor or outdoor use|
- Datasheet (Danish) - NGCR Readers Datasheet DA
- Datasheet (French) - NGCR Readers Datasheet FR
- Datasheet (German) - NGCR Readers Datasheet - German
- Datasheet (English) - NGCR Readers Datasheet - English
- Datasheet (Spanish) - NGCR Readers Datasheet - Spanish
- Datasheet (Swedish) - NGCR Readers Datasheet - Swedish
- Quick start guide
- User manual (English) - VR20M_VR50M User manual
- User manual (French) - VR20M_VR50M User manual
- User manual (Swedish) - VR20M_VR50M User manual
- User manual (German) - VR20M_VR50M User manual
- User manual (Spanish) - VR20M_VR50M User manual
- User manual (Danish) - VR20M_VR50M User manual
