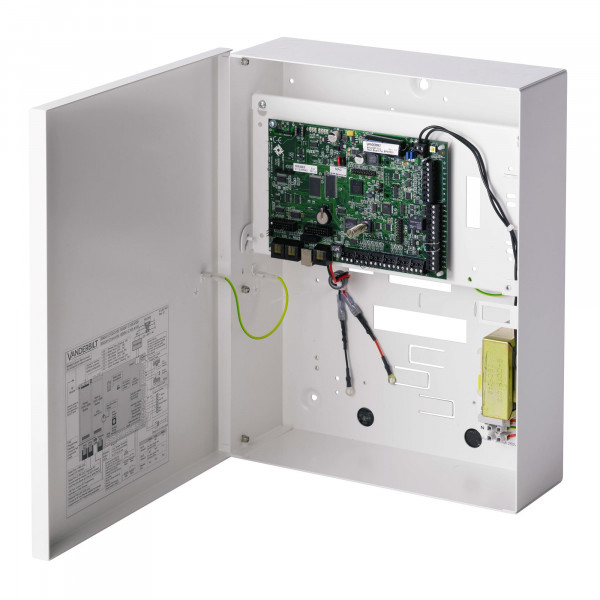

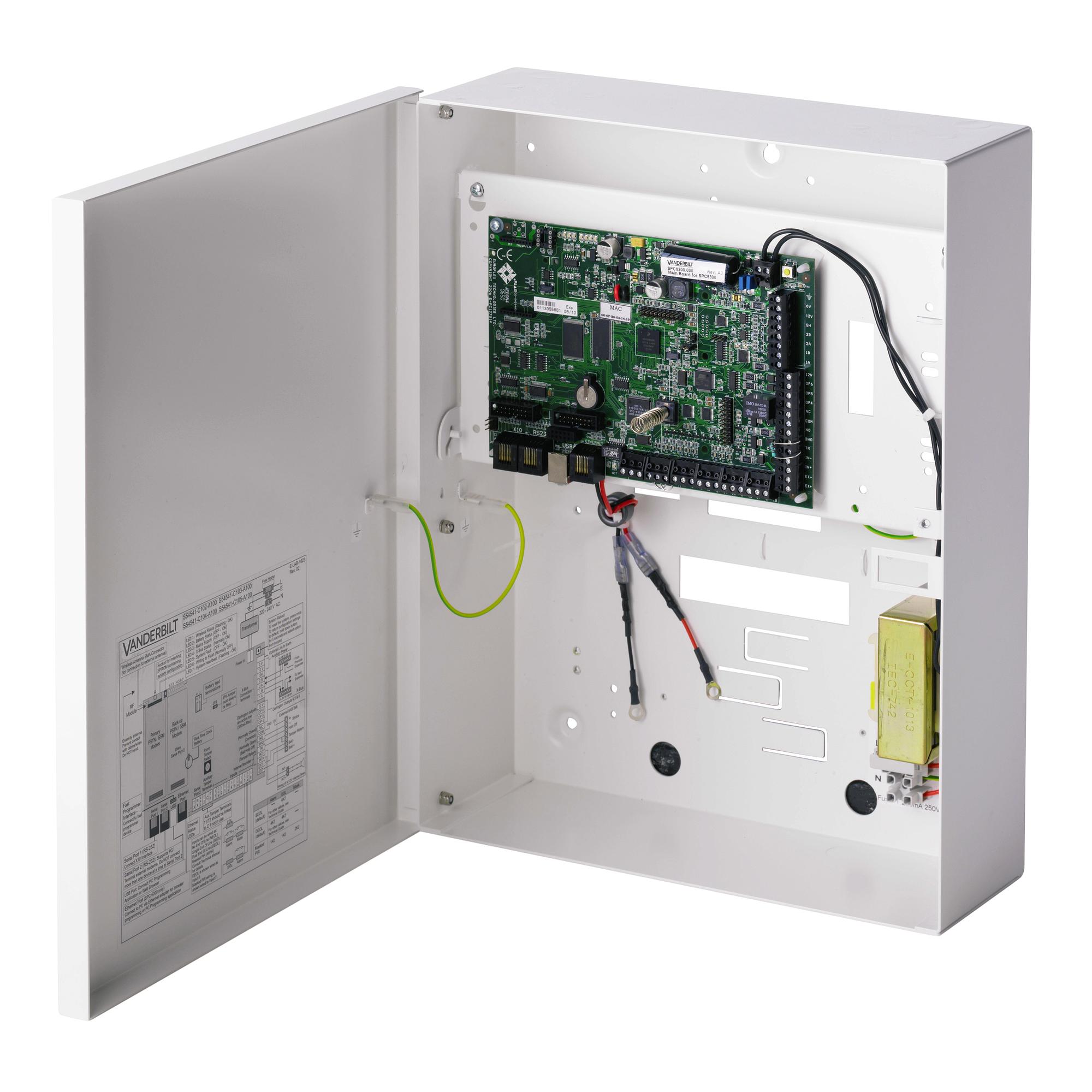

SPC5330.320-L1 Intrusion CP,G3

Esikatselu: SPC5330.320-L1 Intrusion CP,G3 Esikatselu: SPC5330.320-L1 Intrusion CP,G3
SPC5330.320-L1 Intrusion CP,G3
SPC5330.320-L1 Intrusion CP,G3

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54541-C107-B100
  • EAN/UPC-Code: 4025515470748
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Software
Kuvaus
Sulje valikko
Tuotetiedot "SPC5330.320-L1 Intrusion CP,G3"
The SPC5330.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (8 on-board), 128 outputs (6 on-board), 16 system keypads, 8 door controllers, 8 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16 areas, 500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on- board Ethernet interface. The system is expandable with 2-way wireless receivers and supports up to 64 Intrunet wireless detectors (mixed with wired zones). The panel comes in a tamper protected and hinged metal housing with space for optional 17 Ah battery and 4 additional expanders.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 7.45
Osta yksikkö PCE
EAN/UPC-Code: 4025515470748
Mindestabnahme 1
ECCN N
Net weight 7.000
Statistical code 85311030
Country of origin PH
Material code V54541-C107-B100
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Door capacity: Max. 16 entry doors or 8 entry/exit doors
Quiescent current: Max. 170 mA at 12 VDC
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Operating temperature: 0 ~ +40 °C
Weight: 6.400 kg
Housing: Hinged metal housing (1.2 mm mild steel)
Power output: Max. 750 mA bei 12 VDC
Remote controls: Up to 50
Max. number of hardwired zones: 128
Verification: 8 verification zones with max. 4 IP-cameras and 8 audio devices.
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
IP-Communication: Yes
Language: Multi-language support (en + 4 imported language files).Available language files: de, en, es, fr, it, nl, sv.
Approval: EN50131-1 / EN50131-3 / EN50131-6, Grade 3, Class IIUK: PD6662:2010BE: INCERTSE: SFF1014, Larmklass 2
Max. number of wireless zones: 64 (take away wired zones)
Firmware: 3.8.5
Operating current: Max. 190 mA at 12 VDC
Tamper contact: Front spring tamper, back tamper, 1 auxiliary tamper contact input
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Colour: RAL 9003 (signal white)
Event memory: 10'000 intrusion events, 10'000 access events
Number of on-board zones: 8
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Number of on-board relays: 1 strobe (30 VDC / 1 A resistive switching current)
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Dimensions (W x H x D): 326 x 415 x 114 (mm)
