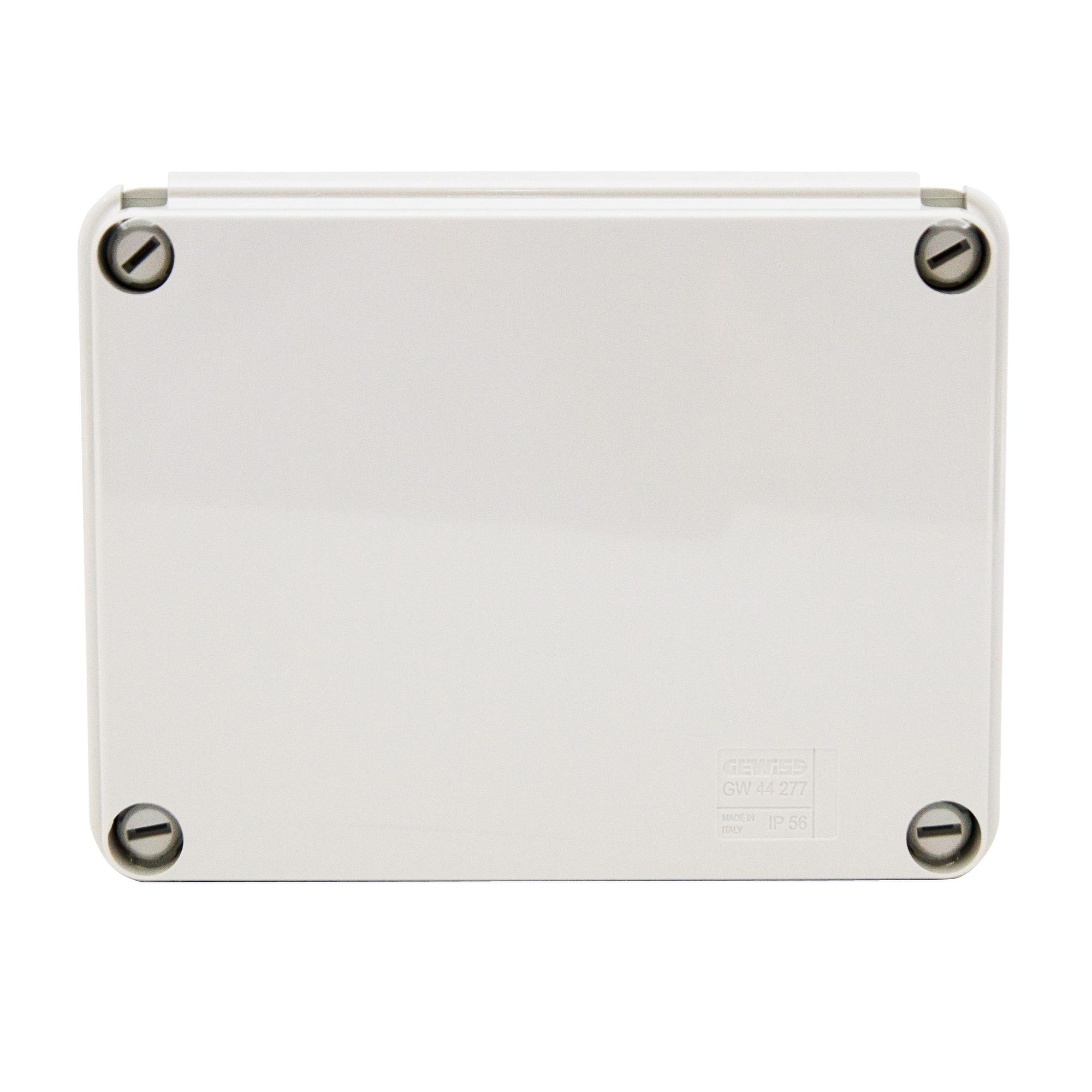

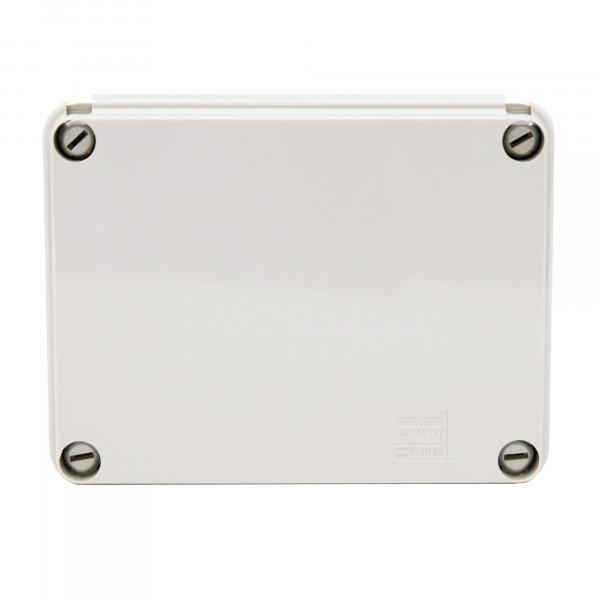

ADD5110 Dual Reader Interface

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V6FL7820-8CA11
  • 4025515475088
Tuotetiedot "ADD5110 Dual Reader Interface"
The ADD5110 provides an interface between a card reader and the advanced central controller (AC5102 or AC5200) for up to two card readers. When a cardholder presents the access card at an entry or exit reader the ADD5110 reader interface interprets the encoded information and sends this data to the controller. The controller then checks the validity of the cardholder‚ and if the appropriate permissions have been assigned‚ the controller sends a message back to the reader interface allowing it to unlock the door and provide passage. It can also report the status of the door (locked or unlocked) at any time.
Gross weight (KG) 0.582
Osta yksikkö PCE
EAN/UPC-Code: 4025515475088
Mindestabnahme 1
Country of origin HU
ECCN EAR99
Material code V6FL7820-8CA11
Net weight 0.553
Statistical code 84733020
Operating voltage: 24 VDC ±20 %
Housing material: Plastic ABS
Interfaces: FLN connection to central controller: RS485 Connection to readers: RS485 bus for max 2 CerPass readers or 2 Clock & Data / Wiegand ports
Approval: CE
Weight: 0.55 kg
Housing: ABS plastic
Housing protection: IP55
Indicators: Power‚ Activity‚ Communication
Firmware: Flash upgradeable
Tamper switch: Optional‚ auxiliary input
Inputs: 1 x REX-button 1 x Door contact 3 x Auxiliary All inputs unsupervised or supervised
Outputs: 1 x Lock output relay (30 VDC‚ 2 A) 1 x Auxiliary relay (30 VDC‚ 2 A)
Power consumption: 25 W
Power output: Reader: 300 mA Ancillary: 1 A
Interface: FLN connection to controller: RS485 To reader: One RS485 bus for up to two RS485 readers (CerPass protocol) OR two Wiegand/Clock&Data ports
Dimensions (W x H x D): 150 x 150 x 76 (mm)
