GM760 Seismic detector

GM760 Seismic detector
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54534-F108-A100
  • EAN/UPC-Code: 4025515469643
Description Certificates Import & Export Resources Technical data Documentation Useful Links
Description
Close menu

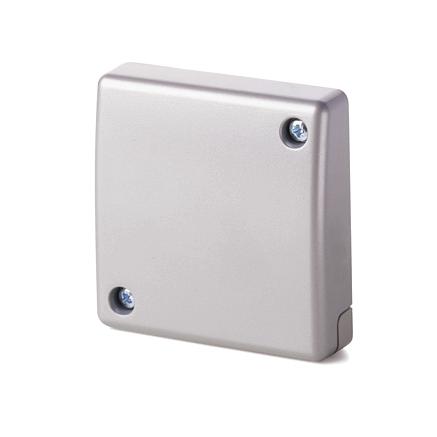

Product information "GM760 Seismic detector"
The GM760 seismic detector is the all-purpose unit in the Vanderbilt`s GM7xx- series. It is perfectly suited for applications on steel, concrete as well as lightweight synthetic materials. Intelligent signal processing enables the level of detection sensitivity to be custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector, and the anti-tamper on the back of the detector will detect forcible removal. Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high concentration of valuable assets or dangerous goods. All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that environmental disturbances are ignored, and false alarms eliminated.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.26
Purchase unit PCE
EAN/UPC-Code: 4025515469643
Minimum order 1
Statistical code 85311030
ECCN EAR99
Material code V54534-F108-A100
Net weight 0.247
Country of origin HU
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (W x H x D): 89 x 89 x 22 (mm)
Power supply: 8 - 16 VDC (12 V nominal)
Approval: UL, CCC, RCM, CNPP, IMQ, INCERT, REQ, NBÚ, PIE, MABISZ, PD6662
DIP switch settings: 3 fixed DIP settings
Weight: 0.285 kg
Alarm output relay: Opens on alarm, 30 VDC / 100 mA
Housing protection (EN 60529): IP43
Operating temperature: -40°C ~ +70°C
