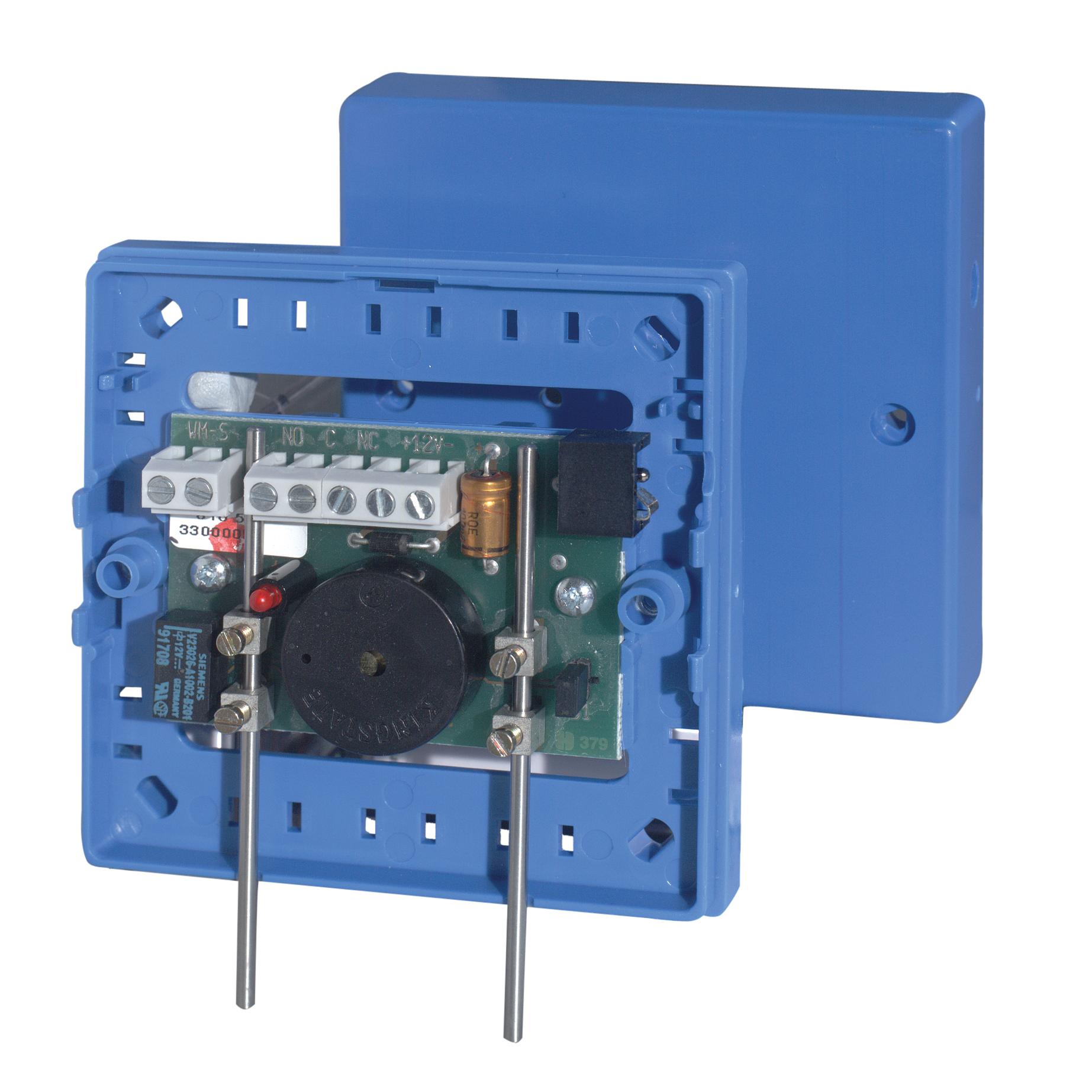

WM-2 Water detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • VDE6:9902500013
  • 4025515479819
Product information "WM-2 Water detector"
Direct current water probe for all conductive non-combustible liquids. For indoor applications.
Gross weight (KG) 0.09
Purchase unit PCE
EAN/UPC-Code: 4025515479819
Minimum order 1
ECCN N
Net weight 0.086
Material code VDE6:9902500013
Statistical code 85311030
Country of origin DE
Dimensions (L x W x H): 85 x 85 x 26 mm
Housing protection: VdS environmental class ll
Housing material: S-B or A-B-S
LED Indicators: yes
Alarm output: Changeover contact, max. 30 V / 1 A
Sound level: 75 dB (30 cm)
Power supply: 9 ~ 16 V
Operating temperature: -10 ~ +55 °C
Current consumption: 8 mA
