Product information "SPC4320.320-K2 Comp. keypad,CR, 2xIB44"

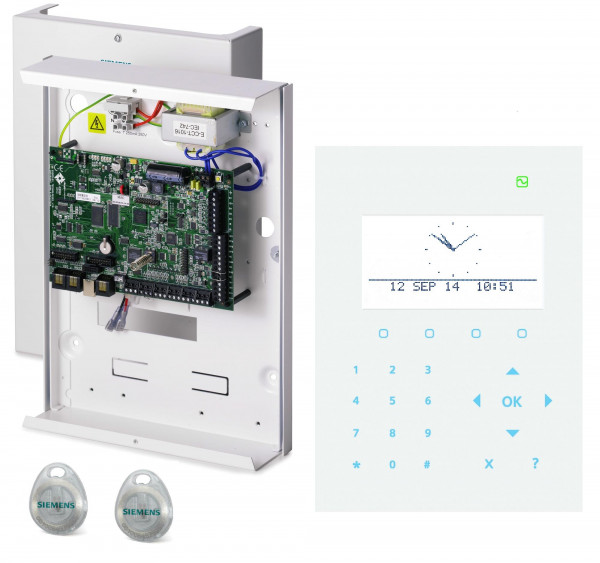

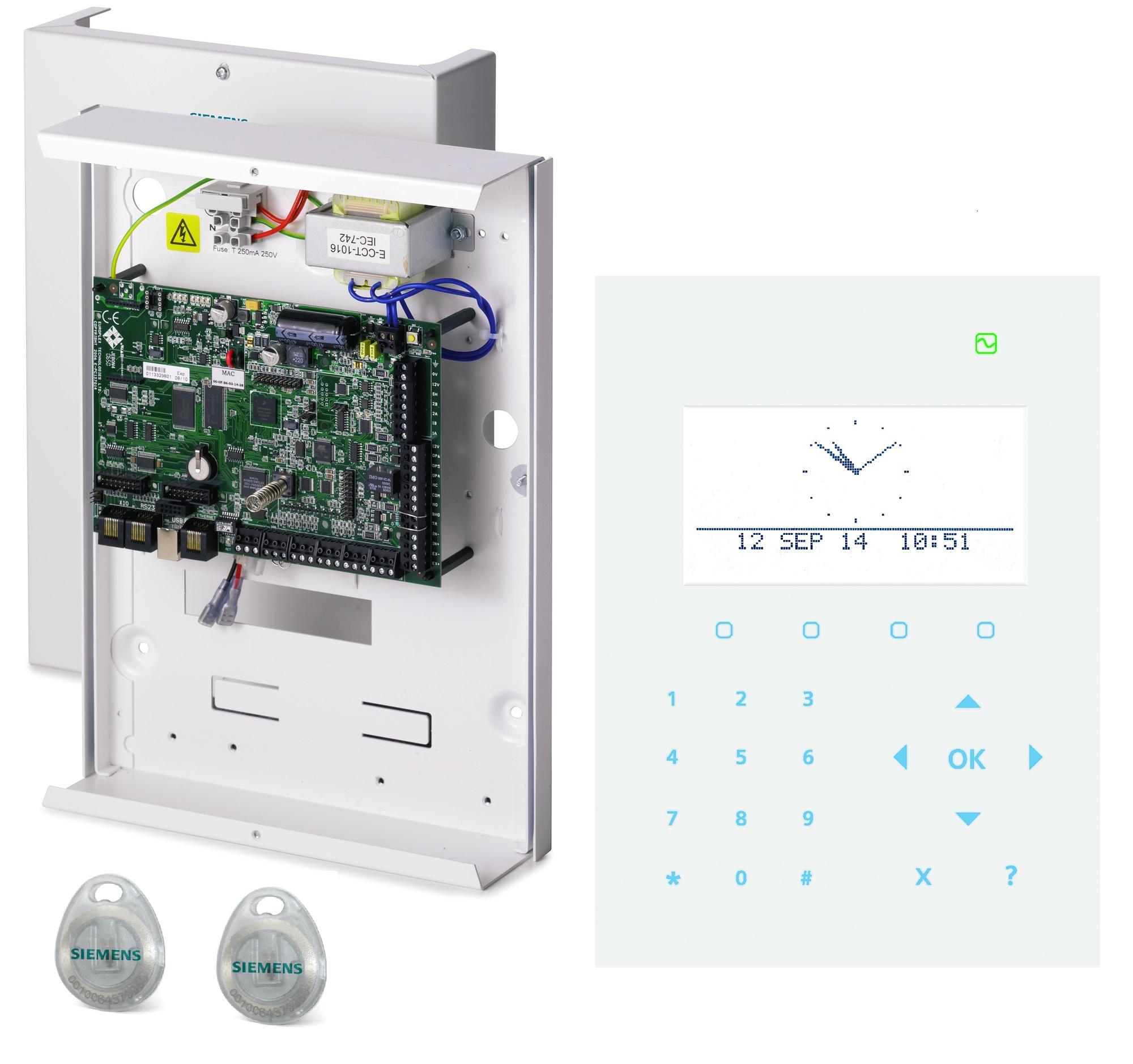

The SPC4320.320 Kit consists of a SPC4320.320 control panel, a SPCK521.100-N keypad & 2 X EM4102 proximity tags. The kit is available for the UK only. The SPC4320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones. The controller provides 1 X-BUS ports (1 stub), 4 areas, 32 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 32 Intrunet wireless detectors (mixed with wired zones) and 1 remote control per user. The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
|Interfaces:||1 X-Bus (1 spur) 1 RS232 1 USB (PC connection) 1 SPC Fast Programmer 1 Ethernet (RJ45)|
|Max. number of hardwired zones:||32|
|Door capacity:||Max. 4 entry doors or 2 entry/exit doors|
|Color:||RAL 9003 (signal white)|
|Event memory:||1000 intrusion events, 1000 access events|
|Housing:||Small metal housing (1.2mm mild steel)|
|Number of on-board relays:||1 strobe (30 VDC / 1A resistive switching circuit)|
|Operating temperature:||0 ~ +40 degC|
|Output voltage:||13-14 VDC in normal conditions (mains powered & fully charged battery)|
|Verification:||4 verification zones with max. 4 IP-cameras and 4 audio devices|
|Video:||Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max 1 frame per sec.)|
|Remote controls:||Up to 32|
|Operating current:||Max. 190 mA at 12 VDC|
|Audio:||Up to 60 sec. pre / 60 sec. post audio recording|
|Language:||Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.|
|Number of on-board zones:||8|
|EOL resistor:||Dual 4K7 (default), other resistor combinations selectable|
|Dimensions (W x H x D):||264 x 357 x 81mm|
- Software (English - Version 02) - SPC Power Calculation V3.0
- Software (German - Version 01) - SPC Stromberechnung V3.0
- Firmware (Multilingual - Version 02) - Firmware SPC 3.12.0
- Firmware (Multilingual - Version 02) - Firmware SPC 3.13.1
- Firmware (Multilingual - Version ) - Firmware (Multilingual - Version 01) - Firmware SPC 3.13.7
- Software (Multilingual - Version 01) - SPC Connect Pro 3.13.7 Configuration Tool
