PRO-E-100H Ext long rng curtain/heater

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54533-Z116-A100
  • 4025515476894
Product information "PRO-E-100H Ext long rng curtain/heater"

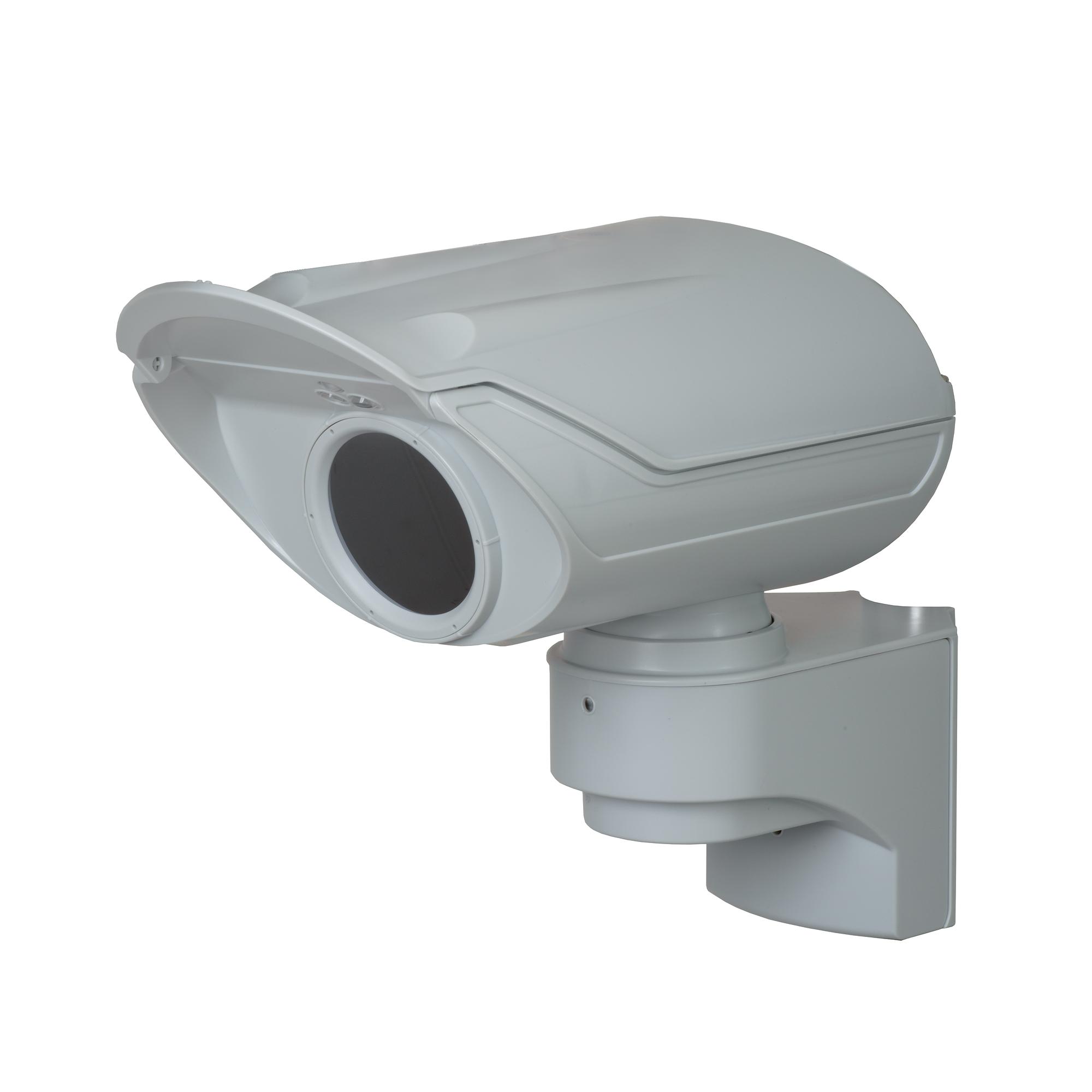

The PRO-E-100H is suitable for outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional settings. Heater for harsh environments.
Gross weight (KG) 1.975
Purchase unit PCE
EAN/UPC-Code: 4025515476894
Minimum order 1
Statistical code 85319000
Material code V54533-Z116-A100
Net weight 1.650
Country of origin CN
ECCN EAR99
Switching voltage: 10.5 - 30 VDC, 24VAC+/- 15% auto-sensing
Alarm output: Programmable 1 x fault = power supply, temperature, heating, anti-mask, watchdog. Programmable 1 x tamper = housing cover, alignment, cable management cover, removal Programmable 2 x 360Protect = anti-mask, zone, or other events
Detection characteristics / range: 150m x 3.3m (Lx W) -1m and up to +8m near surrounding area
Housing material: Luran® S (ASA)
Sensitivity: Default 40%, 75% , 100% (standard sensitivity)
Mounting: Wall and pole mounting, cable management bracket included
Cable entry: diameter 2 x 4-7mm
Dimensions (L x W x H): 358mm x 188mm x 290mm
Weight: 0.98Kg
Sensitivity adjustment: 20% - 140% (% of standard)
Housing protection: IP65
