SPCV410.000 Combi Audio Satellite

Preview: SPCV410.000 Combi Audio Satellite Preview: SPCV410.000 Combi Audio Satellite
SPCV410.000 Combi Audio Satellite
SPCV410.000 Combi Audio Satellite

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F119-A100
  • EAN/UPC-Code: 4025515470915
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SPCV410.000 Combi Audio Satellite"

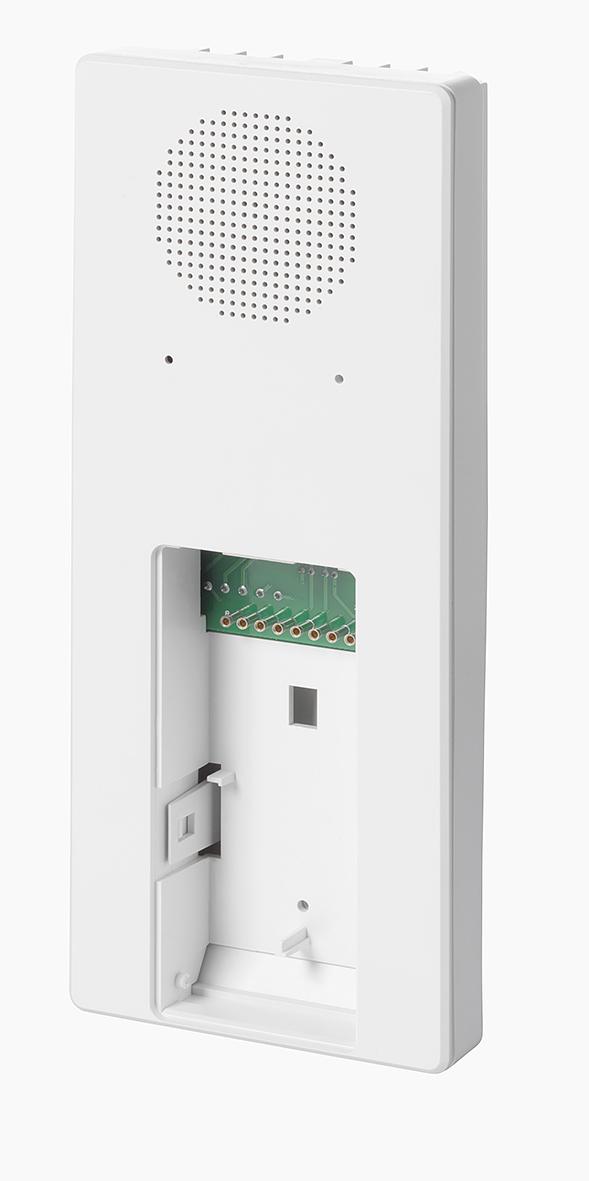

The SPCV410.000 Combi Audio Satellite is connected to an Audio Expander (SPCV440) and expands the audio verification zone with an additional speaker, microphone. In addition any of the MAGIC motion detectors (12m version) seamlessly fit into the prewired device to allow full use of the superb MAGIC motion detector benefits.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.54
Purchase unit PCE
EAN/UPC-Code: 4025515470915
Minimum order 1
Statistical code 85311030
ECCN 3A991
Material code V54542-F119-A100
Net weight 0.513
Country of origin RO
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -10 ~ +50 °C
Weight: 0.550 kg
Quiescent current: 7 mA (incl. LED, without motion detector)
Operating current: 1 mA (without motion detector
Operating voltage: Powered via audio expander
Interfaces: Audio (A+, A-)
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Tamper contact: Front / back tamper switch
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Dimensions (W x H x D): 106 × 261 × 42 (mm)
