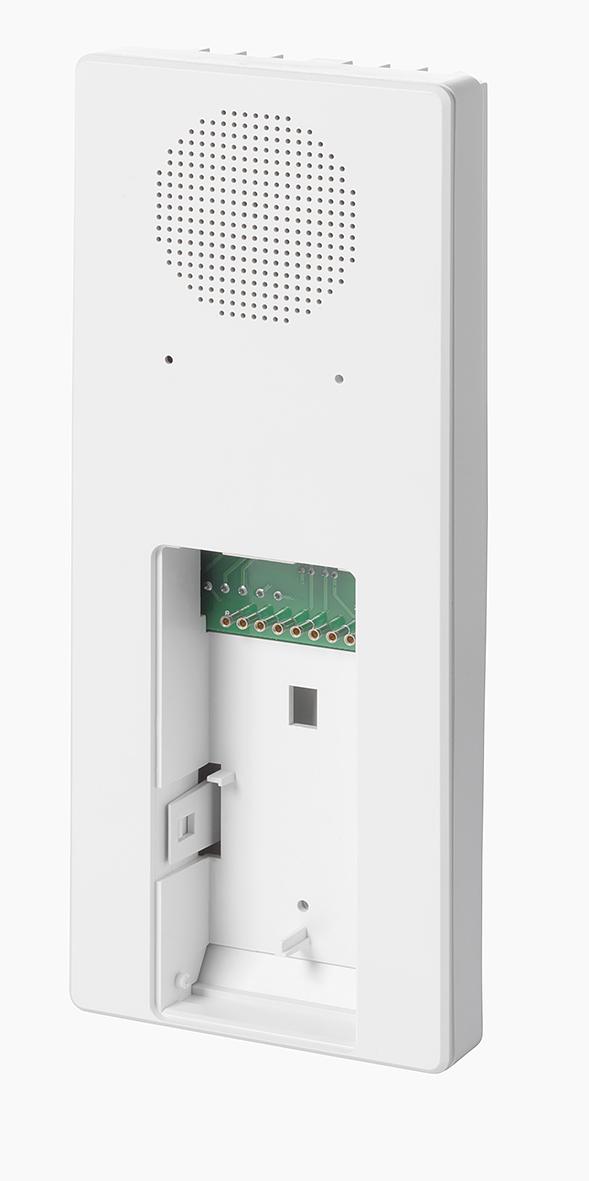

SPCV440.000 Combi Audio Exp. 4 In/1 Out

Preview: SPCV440.000 Combi Audio Exp. 4 In/1 Out Preview: SPCV440.000 Combi Audio Exp. 4 In/1 Out
SPCV440.000 Combi Audio Exp. 4 In/1 Out
SPCV440.000 Combi Audio Exp. 4 In/1 Out

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F118-A100
  • EAN/UPC-Code: 4025515470908
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SPCV440.000 Combi Audio Exp. 4 In/1 Out"
The SPCV440.000 Combi Audio Expander extends the acre Intrusion system via X-BUS with an audio verification zone, 4 wired zones and 1 open collector output. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the acre Intrusion system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander. In addition any of the MAGIC motion detectors (12m version) seamlessly fit into the prewired device to allow full use of the superb MAGIC motion detector benefits.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.5
Purchase unit PCE
EAN/UPC-Code: 4025515470908
Minimum order 1
Statistical code 85311030
ECCN 3A991
Material code V54542-F118-A100
Net weight 0.475
Country of origin RO
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -10 ~ +50 °C
Tamper switch: Front / back spring tamper
Weight: 0.580 kg
Quiescent current: Max. 60 mA at 12 VDC (without satellites or motion detector)
Operating current: Max. 75 mA at 12 VDC (without satellites or motion detector)
Number of on-board zones: 4 (the MAGIC motion detector takes away 1 zone)
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 106 × 261 × 42 (mm)
