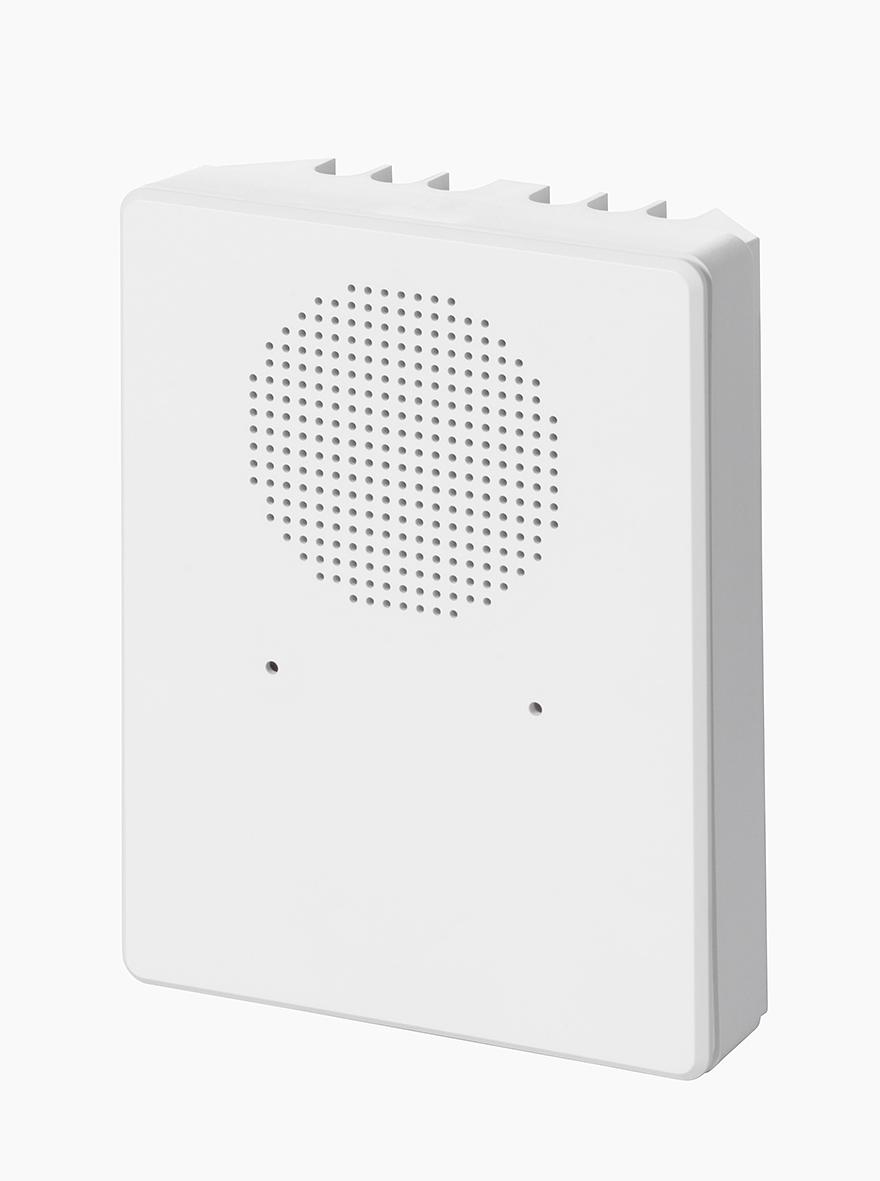

Product information "SPCV341.000 Audio Exp. 4 In/1 LineOut"
The SPCV341.000 Audio Expander extends the SPC system via X-BUS with an audio verification zone, 4 wired zones and 1 line output to drive an external audio pre-amplifier. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the SPC system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.
|Operating voltage:||9.5 ~ 14 VDC|
|Audio outputs:||1 line output (100 Ω / 0.775V RMS, suitable for connection to audio pre-amplifier).|
|Mounting:||Flat surface, wall-mounted or corner-mounted at 45 °|
|Quiescent current:||Max. 60 mA at 12 VDC (without satellites)|
|Operating current:||Max. 75 mA at 12 VDC (without satellites)|
|Tamper contact:||Front / back tamper switch|
|Interfaces:||X-BUS (in, out), Audio (A+, A-)|
|Audio:||Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone|
|LED Indicators:||1 (red)|
|Number of on-board zones:||4|
|Housing:||Plastic housing (ABS)|
|Colour:||RAL 9003 (signal white)|
|Operating temperature:||-10 ~ +50 °C|
|Dimensions (W x H x D):||106 × 141 × 42 (mm)|
