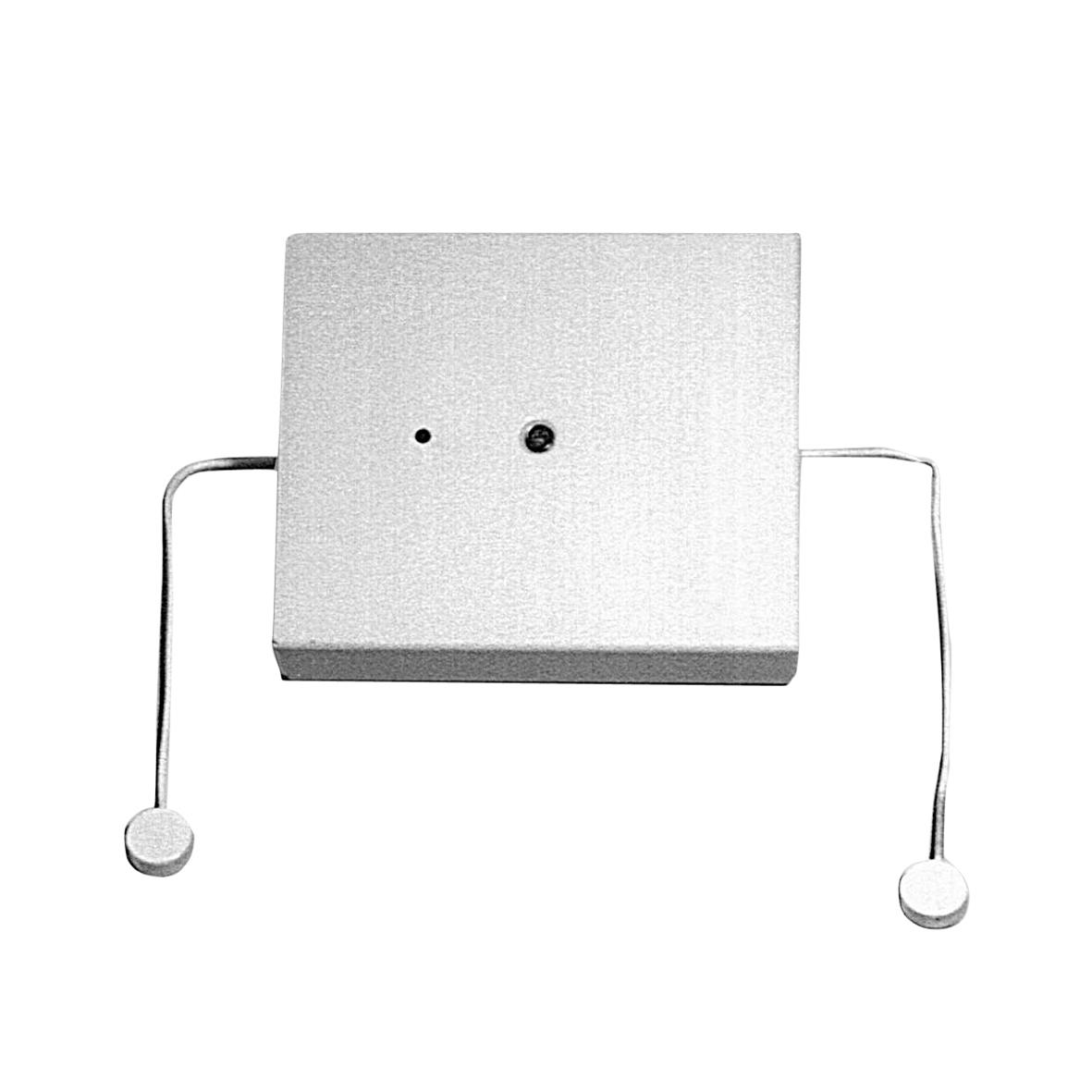

MAGS-S Glas break det. set.active,white

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: VDE6:9912400013
EAN/UPC-Code: 4025515476801

Close menu

Product information "MAGS-S Glas break det. set.active,white"

The Active glass break detector MAGS-S consists of the evaluation unit and 2 equal sensors (transmitter and receiver) glued on the pane of glass. No adjustment works are necessary after the assembly. No false alarm is to be expected even at big alterations of the glass-, frame-construction caused by environmental influences like heat, cold and aging because of the automatic adjustment of the sensors to the pane of glass. The Active glass break detector MAGS-S is available for almost all types of glass within a frame construction with undamaged panes.

Close menu

Gross weight (KG)	0.47
Purchase unit	PCE
EAN/UPC-Code:	4025515476801
Minimum order	1
ECCN	N
Material code	VDE6:9912400013
Statistical code	85311030
Net weight	0.456
Country of origin	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Dimensions (L x W x H):	25 x 110 x 90 (mm)
Weight:	0.450 kg
Colour:	RAL 9010 (white)
Operating temperature:	-10 ~ +75 °C
Housing protection:	IP31
Tamper contact:	max. 25 VDC / 30 mA
Range:	25 m²
Alarm output:	max. 25 VDC / 30 mA
Current consumption:	18 mA
Approval:	VdS geprüft, Klasse C VSÖ geprüft, Klasse WS
Housing material:	ABS
Supply voltage:	10.4 ~ 15 VDC
