SP203 Indoor sounder

Preview: SP203 Indoor sounder Preview: SP203 Indoor sounder

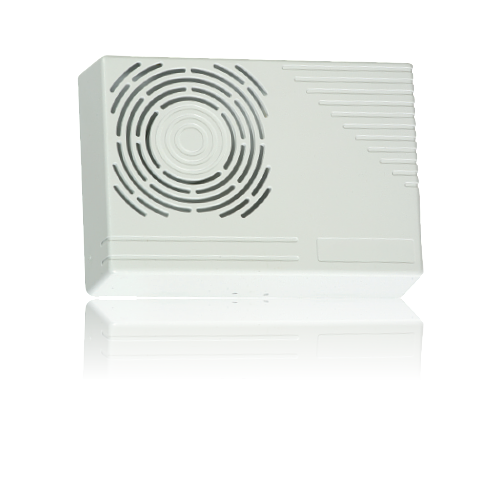

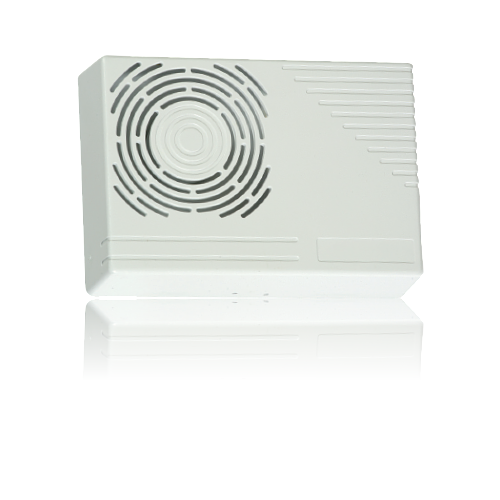

SP203 Indoor sounder
SP203 Indoor sounder

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54539-Z147-A100
  • EAN/UPC-Code: 4025515477518
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SP203 Indoor sounder"
Indoor sounders suitable for security system because they can be equipped with tamper signal in case of wall removal and cover opening. The electronic circuit can be encapsulated in protective resin as protection against bad environmental conditions and increases resistance to shock and vibration.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.18
Purchase unit PCE
EAN/UPC-Code: 4025515477518
Minimum order 1
Country of origin SE
Material code N54539-Z147-A100
Net weight 0.171
Statistical code 85311095
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Weight: 0.170 kg
Sound level: 20 ~ 105 dB, valbart
Power supply: 9 ~ 14 V
Housing protection: IP31
Housing material: ABS
Dimensions (L x W x H): 97 x 135 x 36 mm
Current consumption: 80 ~ 140 mA
Approval: SBSC
Operating temperature: -10 ~ +55 °C
Colour: Vit
Documentation
Close menu
