Ready to ship
Delivery time appr. 1-3 workdays
- Article number: V54543-F102-A100
- EAN/UPC-Code: 4025515470953

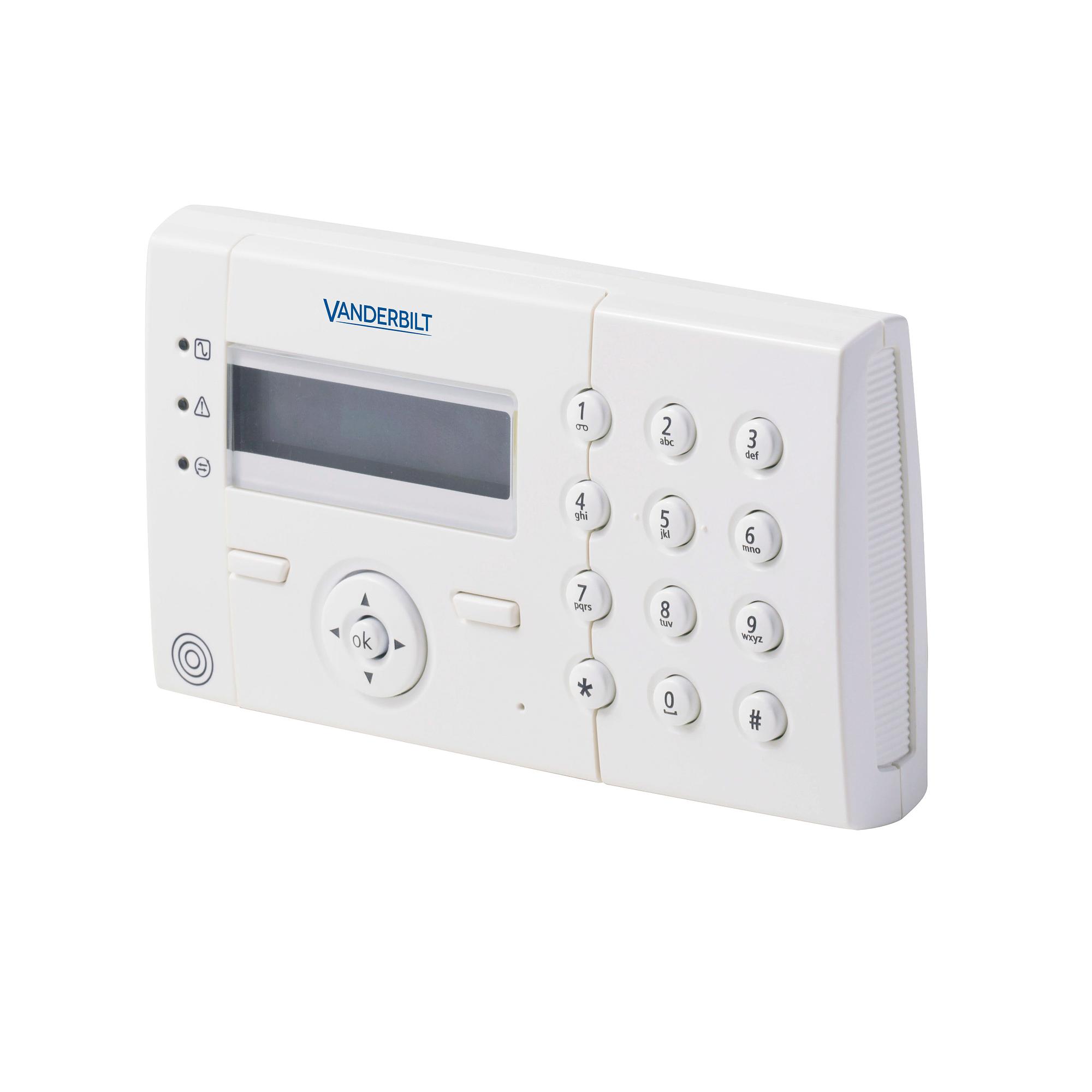

Product information "SPCK421.100 LCD keypad.2x16 Char,CR"
The SPCK421.100 LCD keypad with integrated card reader provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN.
|Tamper switch:||Front / back spring tamper|
|Operating temperature:||-5 ~ +40 °C|
|Quiescent current:||Max. 80 mA at 12 VDC|
|Operating current:||Max. 110 mA at 12 VDC (backlight, LEDs, sounder, reader operated)|
|Housing:||Plastic housing (ABS)|
|Colour:||RAL 9003 (signal white)|
|Mounting:||Flat surface, wall-mounted|
|Operating voltage:||9.5 ~ 14 VDC|
|Interfaces:||X-BUS (in, out)|
|LED Indicators:||3 status LEDs|
|LCD Display:||2 x 16 characters|
|Dimensions (W x H x D):||148 x 85 x 33 mm|
- Datasheet (English) - SPCE420
- Datasheet (German) - spck420
- Datasheet (English) - SPCK420/SPCK421 datasheet_EN
- Installation instructions (Multilingual) - spck420421
- User manual (German) - spck420421
- User manual (English) - spck420421
- User manual (Spanish) - spck420421
- User manual (French) - spck420421
- User manual (Italian) - spck420421
- User manual (Dutch) - spck420421
- User manual (Swedish) - spck420421
