SPCK420.100-N LCD-KP 2x16 Char, Neutr.

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54543-F101-B100
  • 4025515470946
Product information "SPCK420.100-N LCD-KP 2x16 Char, Neutr."

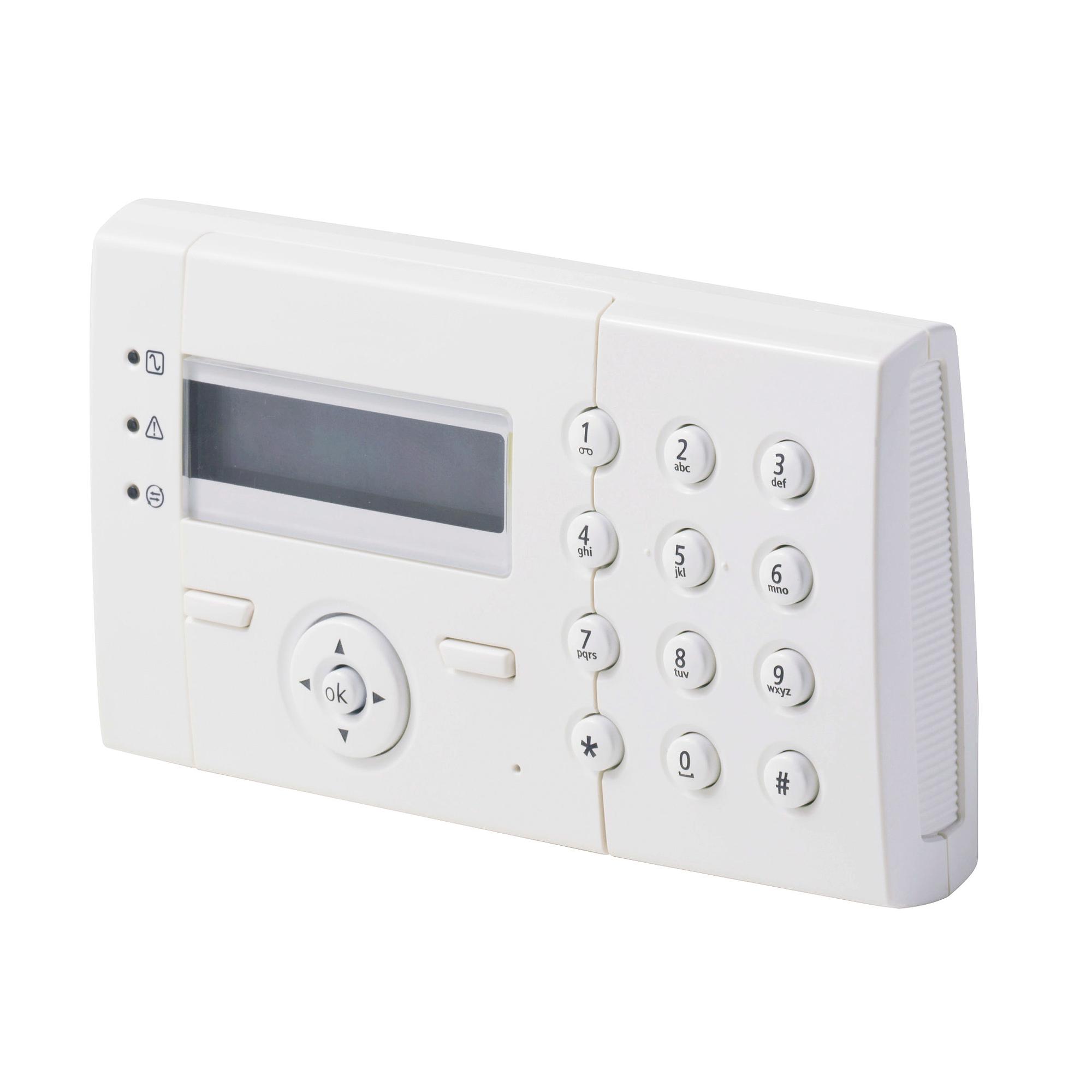

The SPCK420.100 LCD keypad provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The keypad comes as neutral version without printed logo.
Gross weight (KG) 0.25
Purchase unit PCE
EAN/UPC-Code: 4025515470946
Minimum order 1
ECCN N
Material code V54543-F101-B100
Statistical code 85311030
Net weight 0.238
Country of origin PH
Approval: AT: VSÖ Klasse GS-N, Nr.: GS-N 130603/77 E mit SPC5330.320
Housing: Plastic housing (ABS), no logo
Tamper protection: Front / back spring tamper
Weight: 0.210 kg
Colour: RAL 9003 (signal white)
Operating temperature: 5° ~ +40 °C
Mounting: Flat surface, wall-mounted
Quiescent current: Max. 45 mA at 12 VDC
Operating current: Max. 90 mA at 12 VDC (backlight, LEDs, sounder operated)
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
LED Indicators: 3 status LEDs
LCD Display: 2 x 16 characters
Dimensions (W x H x D): 148 x 85 x 33 mm
