temporarily out of stock, please check availability with your local Customer Service team.
- Article number: V54542-F107-A100
- EAN/UPC-Code: 4025515470861

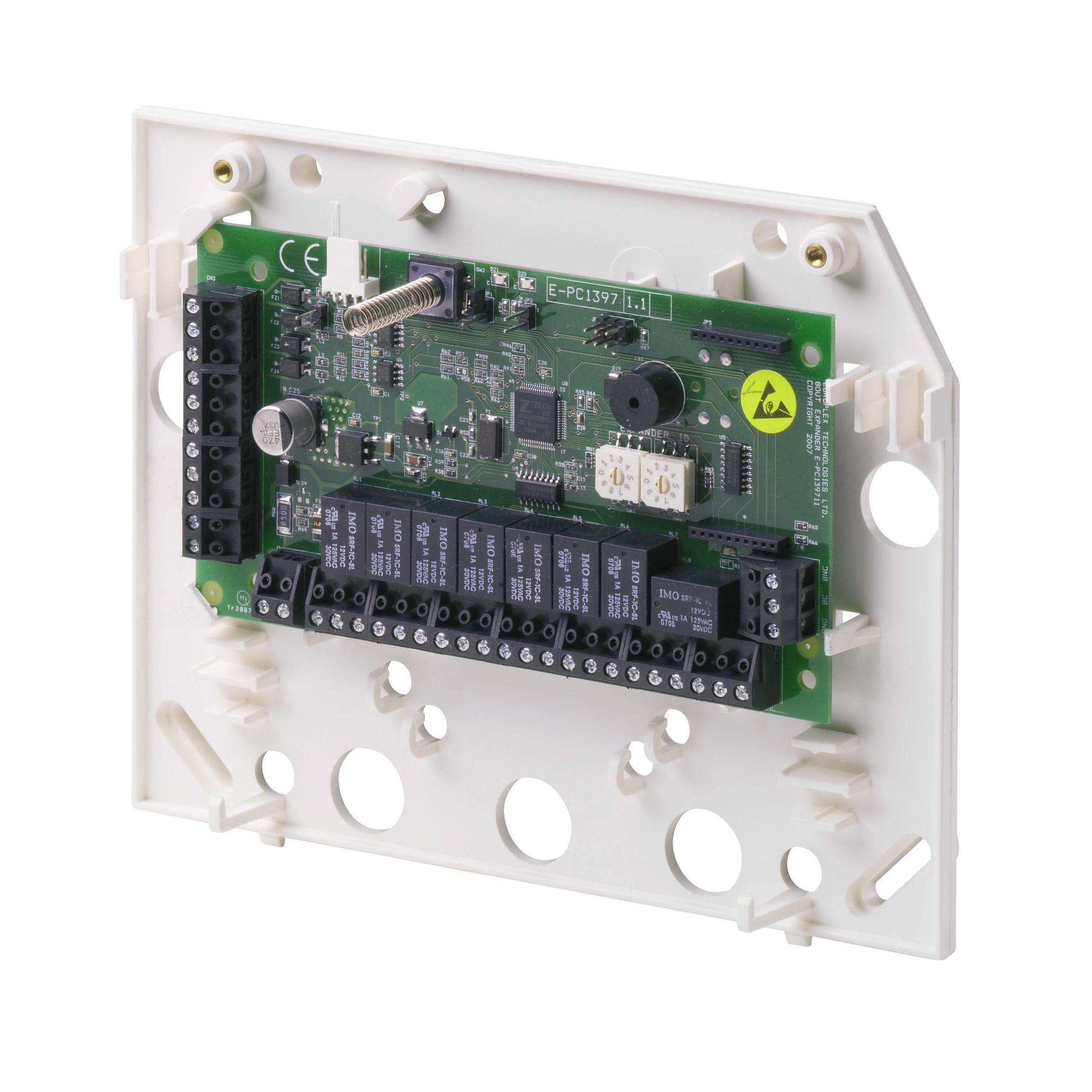

Product information "SPCE452.100 Expander.8 relays,backtamp."
The SPCE452.100 expander extends the SPC system via X-BUS with 8 fully programmable relay outputs. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front and back tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
|Quiescent current:||Max. 40 mA at 12V DC|
|Operating current:||Max. 190 mA at 12 VDC (all relays activated)|
|Number of on-board relays:||8 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)|
|Tamper contact:||Front spring tamper, back tamper|
|Interfaces:||X-BUS (in, out, branch)|
|Housing:||Plastic housing (ABS)|
|Colour:||RAL 9003 (signal white)|
|Mounting:||Flat surface, wall-mounted|
|Operating voltage:||9.5 ~ 14 VDC|
|Operating temperature:||-10 ~ +50 °C|
|Dimensions (W x H x D):||200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)|
