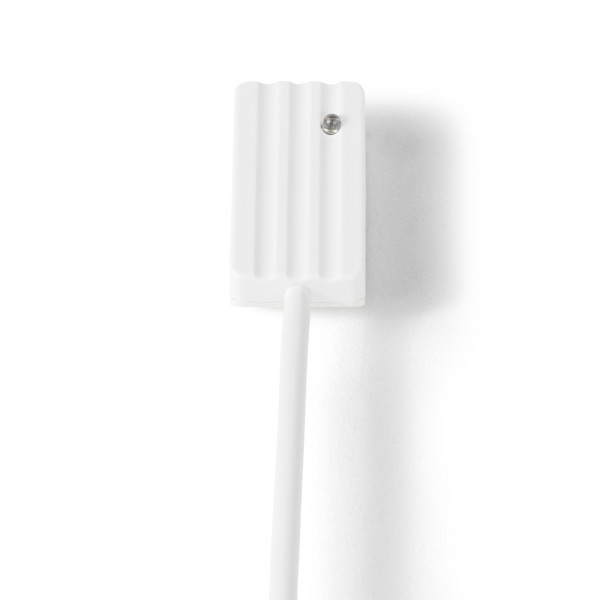

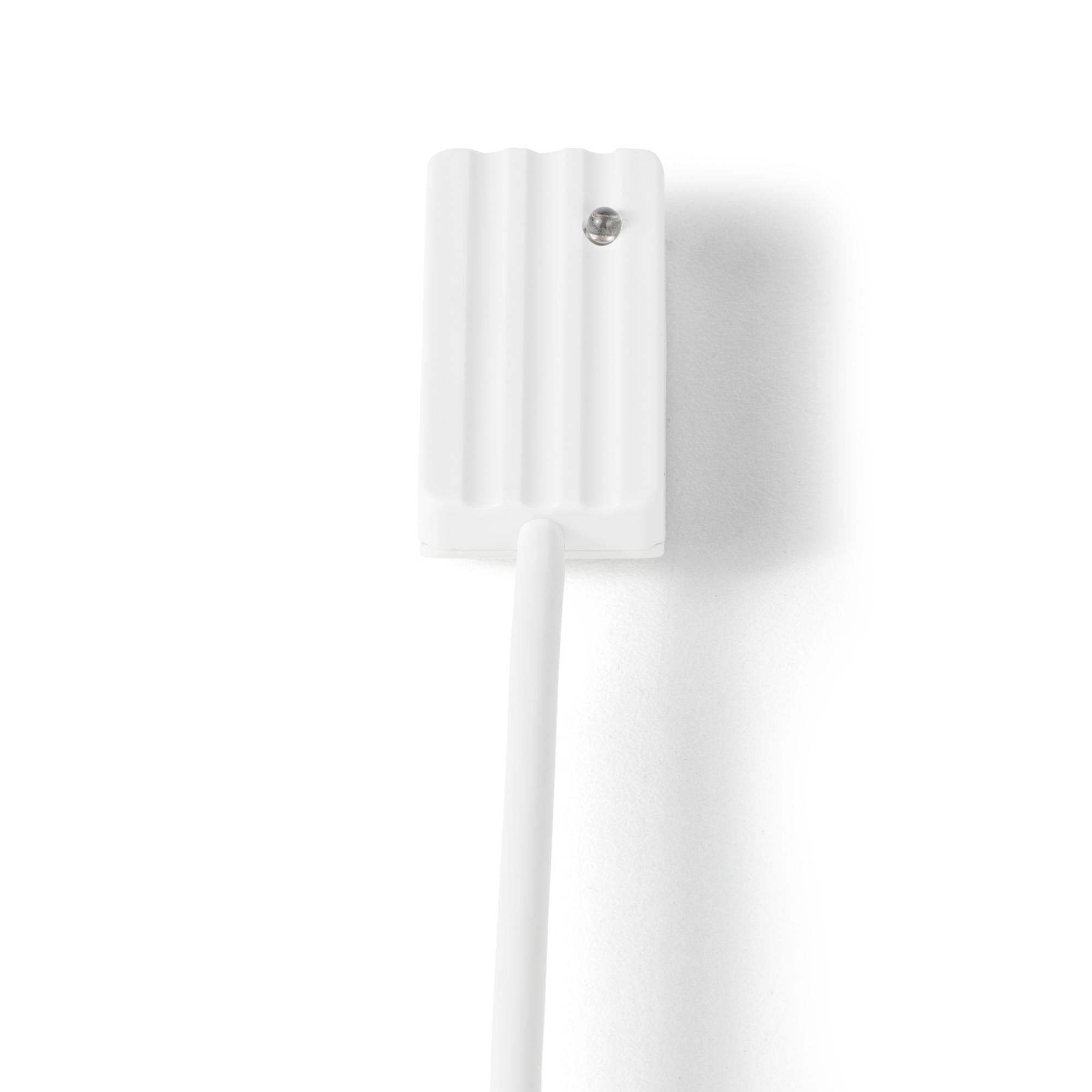

GB-5100-6 Glassbreak detector,6m,relay

Preview: GB-5100-6 Glassbreak detector,6m,relay Preview: GB-5100-6 Glassbreak detector,6m,relay
GB-5100-6 Glassbreak detector,6m,relay
GB-5100-6 Glassbreak detector,6m,relay

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54535-F101-A200
  • EAN/UPC-Code: 4025515478447
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "GB-5100-6 Glassbreak detector,6m,relay"
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The GB-5100 detectors with relay output and LED indication can be used in smaller installations (1-5 pcs). Secondary Packaging: 25 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.145
Purchase unit PCE
EAN/UPC-Code: 4025515478447
Minimum order 1
ECCN N
Material code V54535-F101-A200
Net weight 0.138
Statistical code 85311030
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Environmental class: III
Housing protection: IP67
Housing material: S-B
Contact resistance: 5 Ω
Reset voltage: Max. 2 V
Operating temperature: -25 ~ 70 °C
Cable length: 6 m
Range: Radius: 2 m
Switching current: Max. 200 mA
Switching voltage: Max. 24 V DC
Supply voltage: 8 - 18 VDC
Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
