SPC5330.320-L1 Intrusion CP,G3
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54541-C107-B100
- EAN/UPC-Code: 4025515470748
Product information "SPC5330.320-L1 Intrusion CP,G3"
The SPC5330.320 control panel combines in an optimal way intrusion and
access functionality in one system and can be expanded according to
specific customers and project needs with up to 128 zones (8 on-board),
128 outputs (6 on-board), 16 system keypads, 8 door controllers, 8
verification zones. The controller provides 2 X-BUS ports (2 stubs or 1
loop), 16 areas, 500 users with different access levels, memory for
10’000 intrusion and 10'000 access events, integrated Web Server, 2
terminals for the pluggable PSTN and GSM/GPRS communication options, on-
board Ethernet interface. The system is expandable with 2-way wireless
receivers and supports up to 64 Intrunet wireless detectors (mixed with

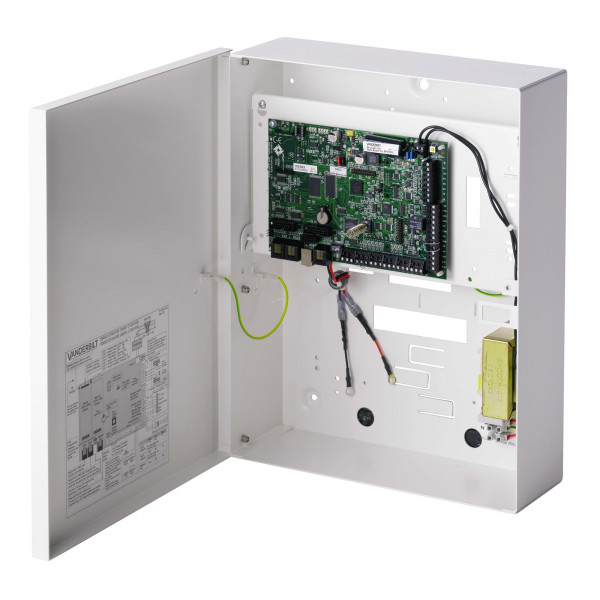

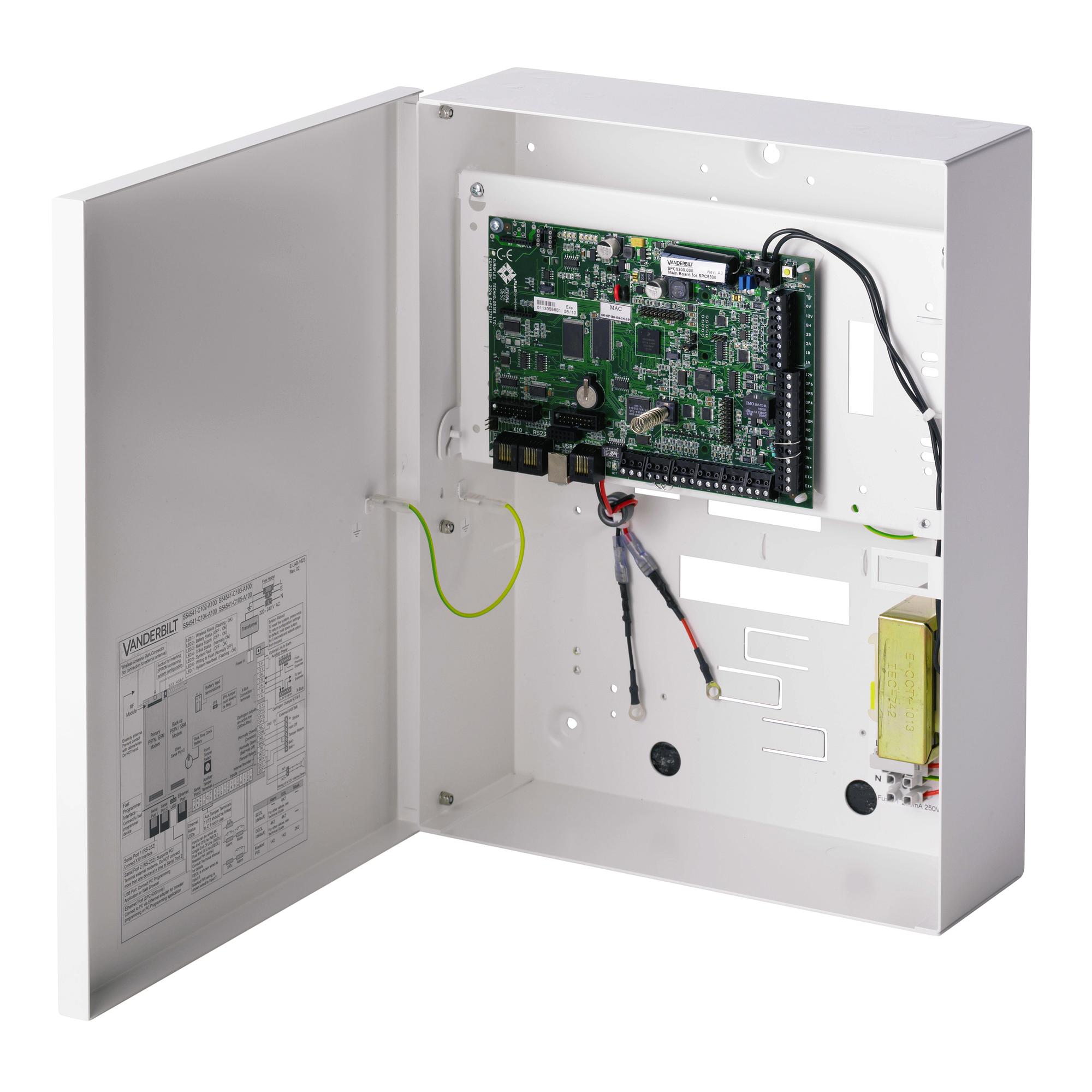

wired zones). The panel comes in a tamper protected and hinged metal
housing with space for optional 17 Ah battery and 4 additional
expanders.
- Certificate (CE) - Issued by Vanderbilt, on 07/09/2020
- Certificate - Issued by CNPP, on 23/11/2021
- Certificate - Issued by IMQ, on 04/02/2015
- Certificate - Issued by Telefication, on 18/12/2020
- Certificate - Issued by INCERT, on 14/12/2020
- Certificate - Issued by SBSC, on 01/01/2021
- Certificate - Issued by SBSC, on 01/01/2021
- Certificate - Issued by SBSC, on 17/12/2019
- Certificate - Issued by SBSC, on 17/12/2019
- Certificate - Issued by SBSC, on 29/09/2021
- Certificate - Issued by SBSC, on 29/09/2021
- Certificate - Issued by VdS, on 29/11/2019
- Certificate - Issued by VSÖ, on 06/08/2019
- Certificate - Issued by KVALITET, on 06/05/2019
- Certificate (PD6662) - Issued by Vanderbilt, on 25/02/2022
- Certificate (PD6662) - Issued by Vanderbilt, on 29/03/2019
- Certificate (MSDS) - Issued by Supplier, on 10/01/2020
- Certificate (UN38.3) - Issued by Supplier, on 19/12/2019
- Certificate - Issued by CNPP, on 02/11/2022
- Certificate - Issued by SBSC, on 20/02/2023
- Certificate - Issued by SBSC, on 20/02/2023
Door capacity: | Max. 16 entry doors or 8 entry/exit doors |
Quiescent current: | Max. 170 mA at 12 VDC |
Output voltage: | 13-14 VDC in normal conditions (mains powered and fully charged battery) |
Operating temperature: | 0 ~ +40 °C |
Weight: | 6.400 kg |
Housing: | Hinged metal housing (1.2 mm mild steel) |
Power output: | Max. 750 mA bei 12 VDC |
Remote controls: | Up to 50 |
Max. number of hardwired zones: | 128 |
Verification: | 8 verification zones with max. 4 IP-cameras and 8 audio devices. |
Mains voltage: | 230 VAC, + 10%/ -15%, 50 Hz |
Video: | Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.) |
IP-Communication: | Yes |
Language: | Multi-language support (en + 4 imported language files).Available language files: de, en, es, fr, it, nl, sv. |
Approval: | EN50131-1 / EN50131-3 / EN50131-6, Grade 3, Class IIUK: PD6662:2010BE: INCERTSE: SFF1014, Larmklass 2 |
Max. number of wireless zones: | 64 (take away wired zones) |
Firmware: | 3.8.5 |
Operating current: | Max. 190 mA at 12 VDC |
Tamper contact: | Front spring tamper, back tamper, 1 auxiliary tamper contact input |
Interfaces: | 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45) |
Colour: | RAL 9003 (signal white) |
Event memory: | 10'000 intrusion events, 10'000 access events |
Number of on-board zones: | 8 |
EOL resistor: | Dual 4K7 (default), other resistor combinations selectable |
Number of on-board relays: | 1 strobe (30 VDC / 1 A resistive switching current) |
Audio: | Up to 60 sec. pre / 60 sec. post audio recording |
Dimensions (W x H x D): | 326 x 415 x 114 (mm) |
- Datasheet (German) - spc5330
- Datasheet (French) - spc5330
- Datasheet (Swedish) - spc5330
- Datasheet (English) - spc5330
- Datasheet (Spanish) - spc5330
- Wiring (German) - spc4xxx5xxx6xxxwiring
- Wiring (English) - spc4xxx5xxx6xxxwiring
- Wiring (Spanish) - spc4xxx5xxx6xxxwiring
- Wiring (French) - spc4xxx5xxx6xxxwiring
- Wiring (Italian) - spc4xxx5xxx6xxxwiring
- Wiring (Dutch) - spc4xxx5xxx6xxxwiring
- Wiring (Swedish) - spc4xxx5xxx6xxxwiring
- Installation instructions (Italian) - InstallAndConfig_PDF
- Installation instructions (Dutch) - InstallAndConfig_PDF
- Installation instructions (Danish) - InstallAndConfig_PDF
- Installation instructions (German) - InstallAndConfig_PDF
- Installation instructions (English) - InstallAndConfig_PDF
- Installation instructions (Spanish) - InstallAndConfig_PDF
- Installation instructions (French) - InstallAndConfig_PDF
- Installation instructions (Swedish) - InstallAndConfig_PDF
- Install manual (German) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Spanish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (French) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Italian) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Dutch) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Swedish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - 220_SPC Install and Config_A6V10276959-f_EN_I-200338
- Install manual (Multilingual) - 220_SPC Install and Config_A6V10276959-g_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.5_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.7_EN
- Planning guide (French) - SPC Matrix 3.13.7_FR
- Planning guide (Italian) - SPC Matrix 3.13.7_IT
- Marketing flyer (Multilingual) - SPC Connect Price List 4.0
- Software (Multilingual - Version 04) - spcfwv3.8.5
- Software (English - Version 02) - SPC Power Calculation V3.0
- Software (German - Version 01) - SPC Stromberechnung V3.0
- Firmware (Multilingual - Version 02) - Firmware SPC 3.13.1
- Firmware (Multilingual - Version ) - Firmware (Multilingual - Version 01) - Firmware SPC 3.13.7
- Firmware (Multilingual - Version ) - SPC Firmware 3.14.1_20230904
- Software (Multilingual - Version 01) - SPC Connect Pro 3.14.1 Configuration Tool
