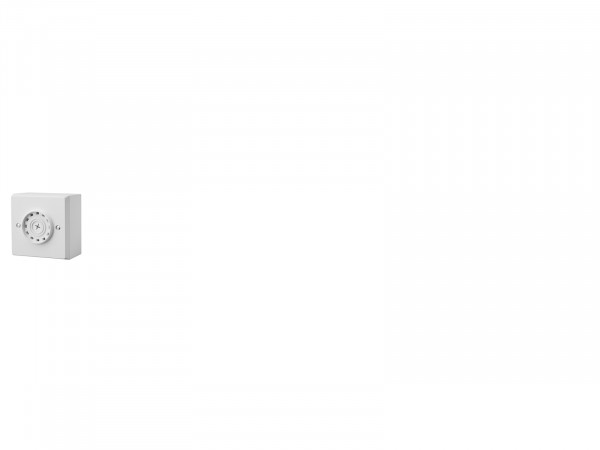

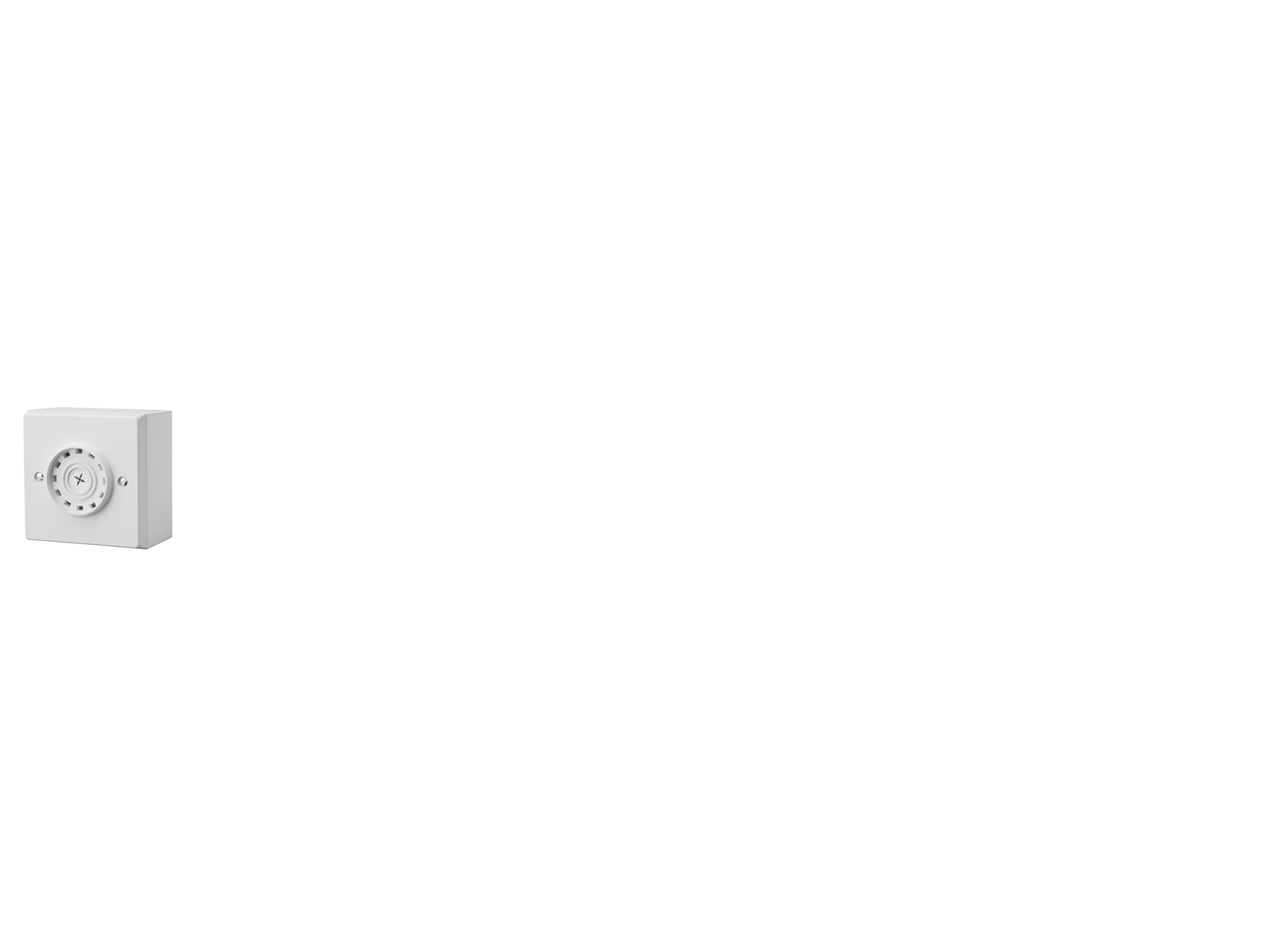

ACW8BB Stand.sounder, 12/24V, 0.8-25kHz

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • N54539-Z120-A100
  • 4025515477433
Product information "ACW8BB Stand.sounder, 12/24V, 0.8-25kHz"
A discreet sounder that is available for flush or surface fixing. The sounder provides an excellent combination of high sound output and neat appearance, ideal for retail, hotel and residential applications such as sheltered housing.
Gross weight (KG) 0.2
Purchase unit PCE
EAN/UPC-Code: 4025515477433
Minimum order 1
Material code N54539-Z120-A100
Country of origin GB
Net weight 0.190
Statistical code 85311095
Weight: 0.110 kg
Tones: 32
Sound level: 95 dB (tone 8)
Power supply: 9 ~ 28 VDC
Housing protection: IP21C
Current consumption: 16 mA (tone 8)
Housing material: ABS
Operating temperature: -10 ~ +55 °C
Colour: White
Dimensions (L x W x H): 86 x 86 x 42 (mm)
