PSU240538 24V PSU 5A, SPACE - 38Ah BATS

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • N54545-Z161-A100
Product information "PSU240538 24V PSU 5A, SPACE - 38Ah BATS"

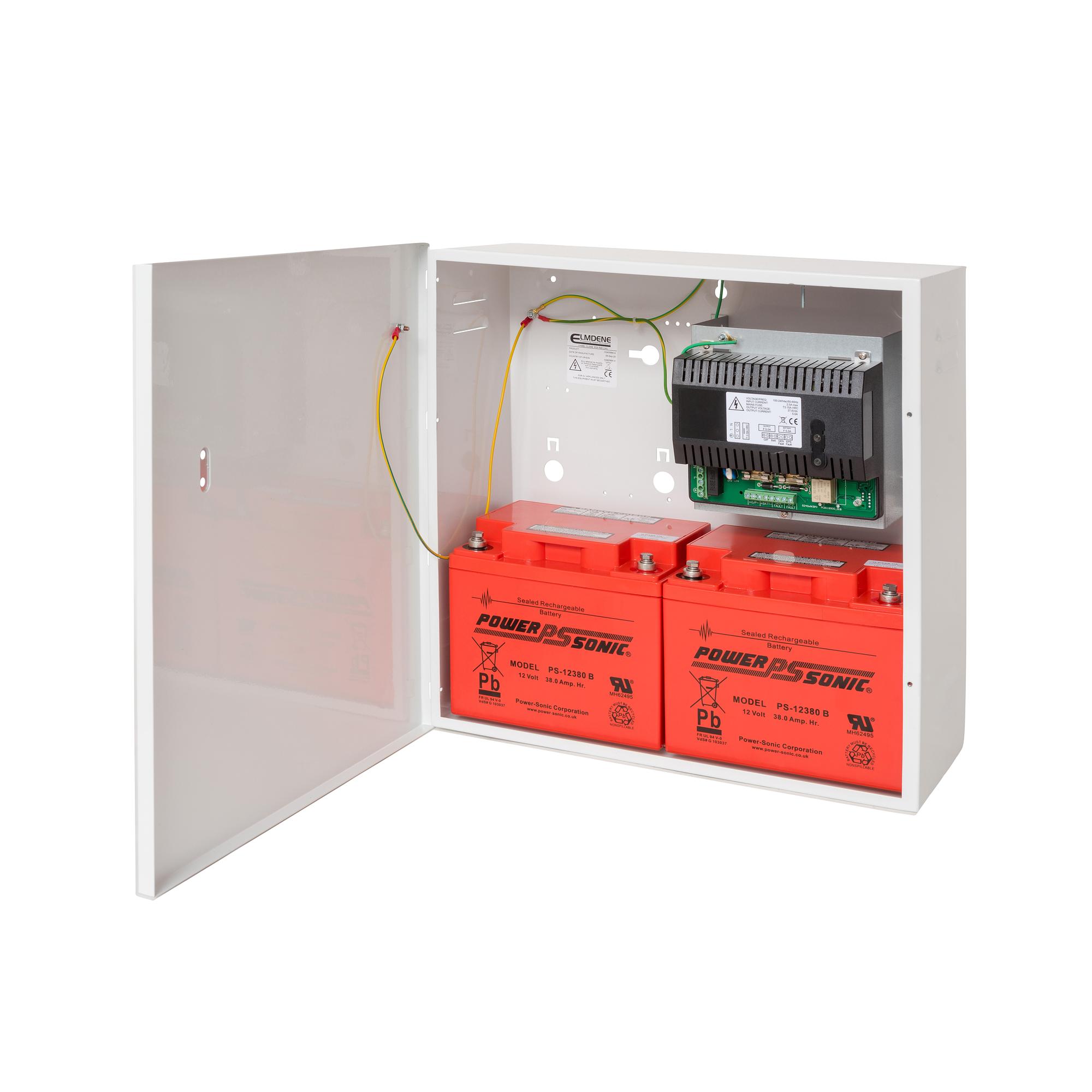

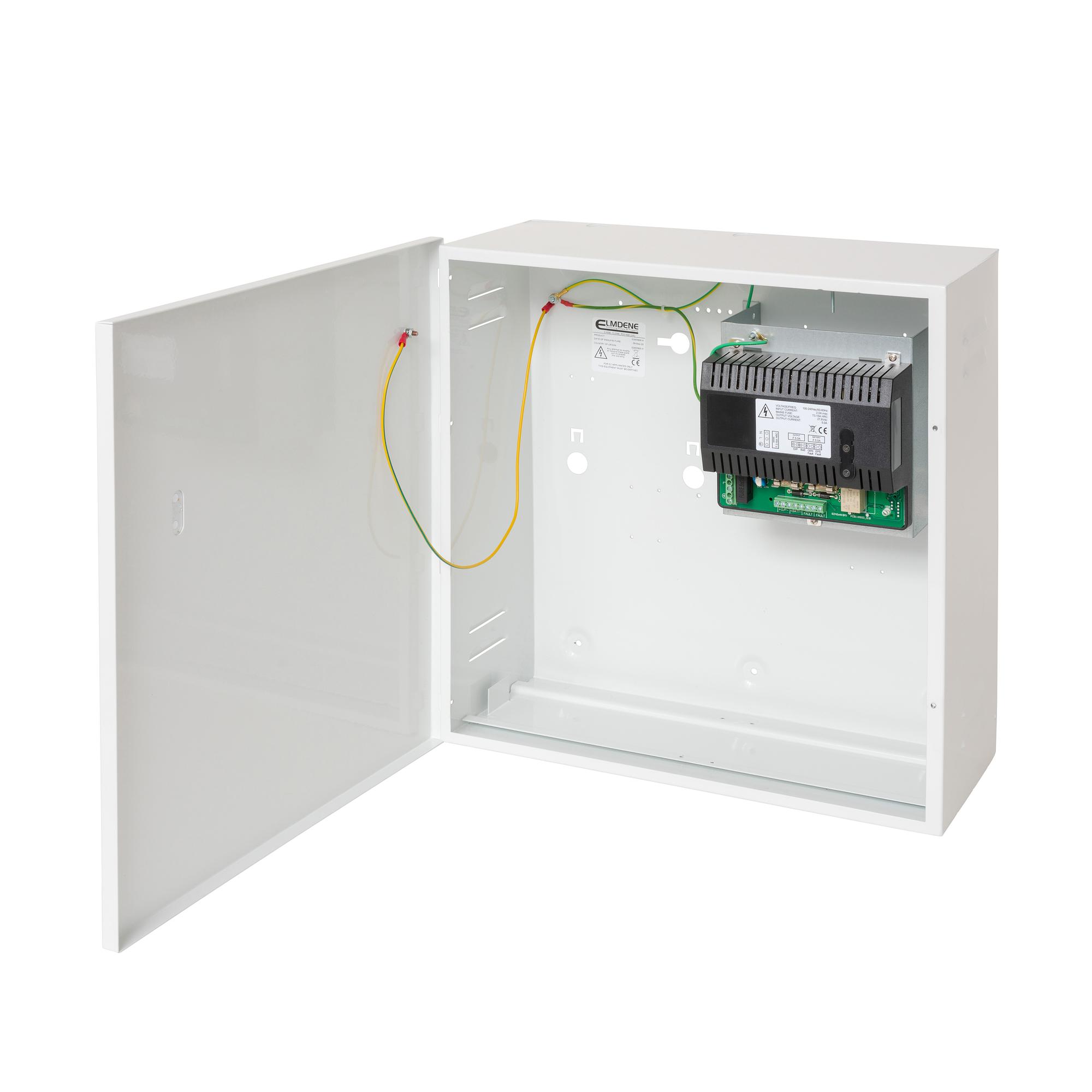

The PSU240538 is a self contained switch mode 24v 5.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection and space for 2x 38Ah sealed lead acid batteries. Housed in a mild steel enclosure with space for various interface cards.
Gross weight (KG) 8.67
Purchase unit PCE
Minimum order 1
ECCN N
Material code N54545-Z161-A100
Statistical code 85044060
Country of origin GB
Net weight 8.150
Storage temperature: -20°C ~ +80°C
Weight (without battery): 8.67Kg (Gross) / 8.15Kg (Nett)
Output voltage: 24v DC
Operating temperature: 10°C to +40°C, 75% RH
Material: 1.2mm mild steel
LED Indicators: External
Installation: Internal
Input voltage: 100-240vAC
Battery: Max Capacity 2 x 12v 38Ah
Dimensions (W x H x D): 425 x 425 x 185 (mm)
