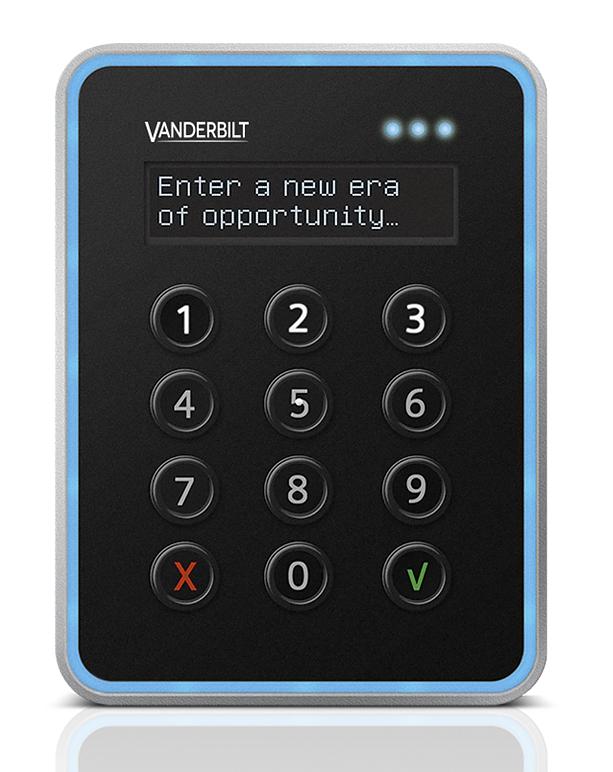

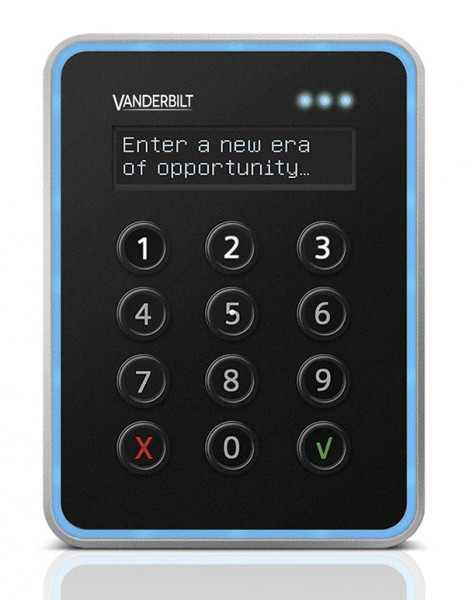

VR40S-MF NGCR MIFARE EV1 Reader +keypad

Please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54504-F102-A100
  • 4025515469841
Product information "VR40S-MF NGCR MIFARE EV1 Reader +keypad"

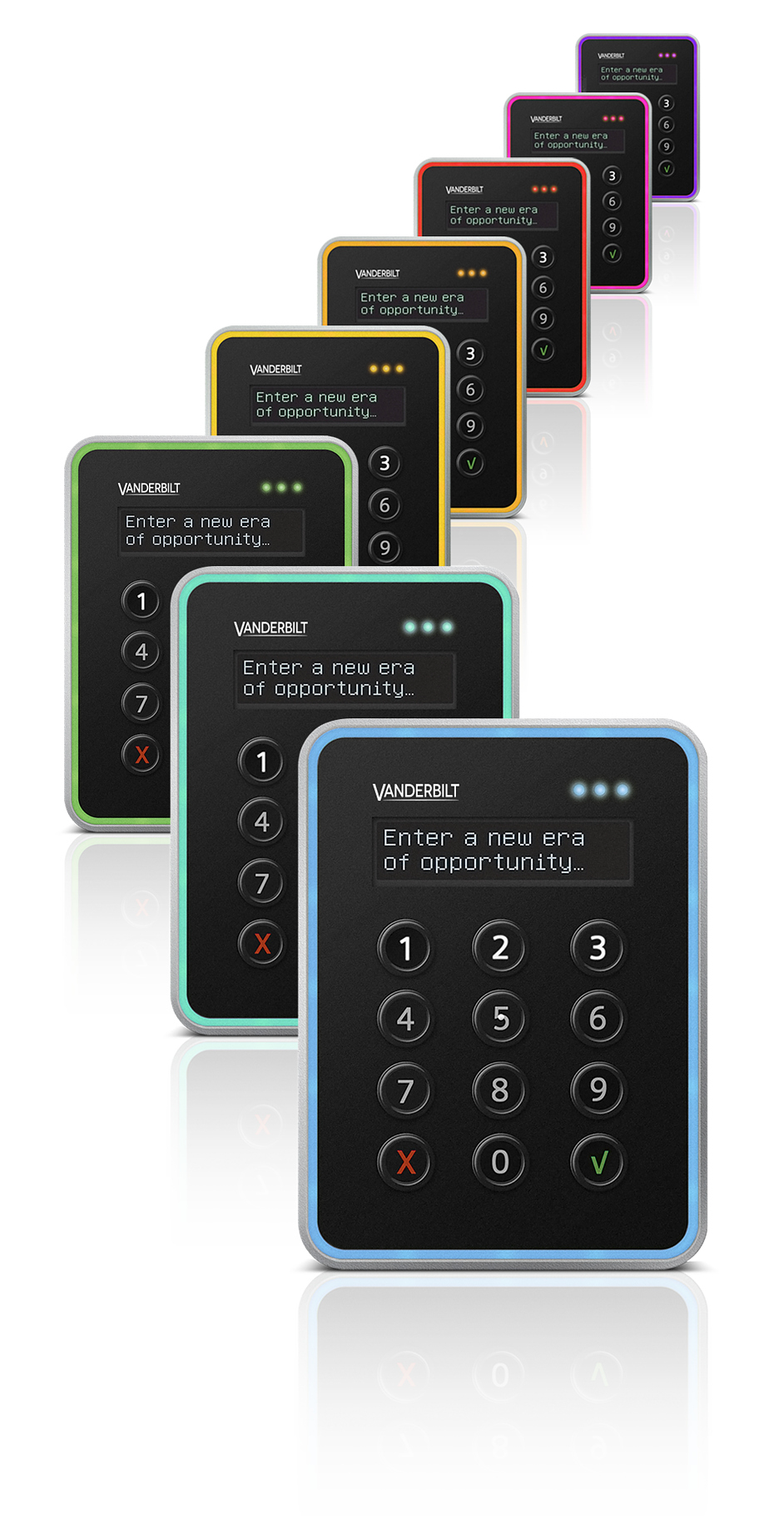

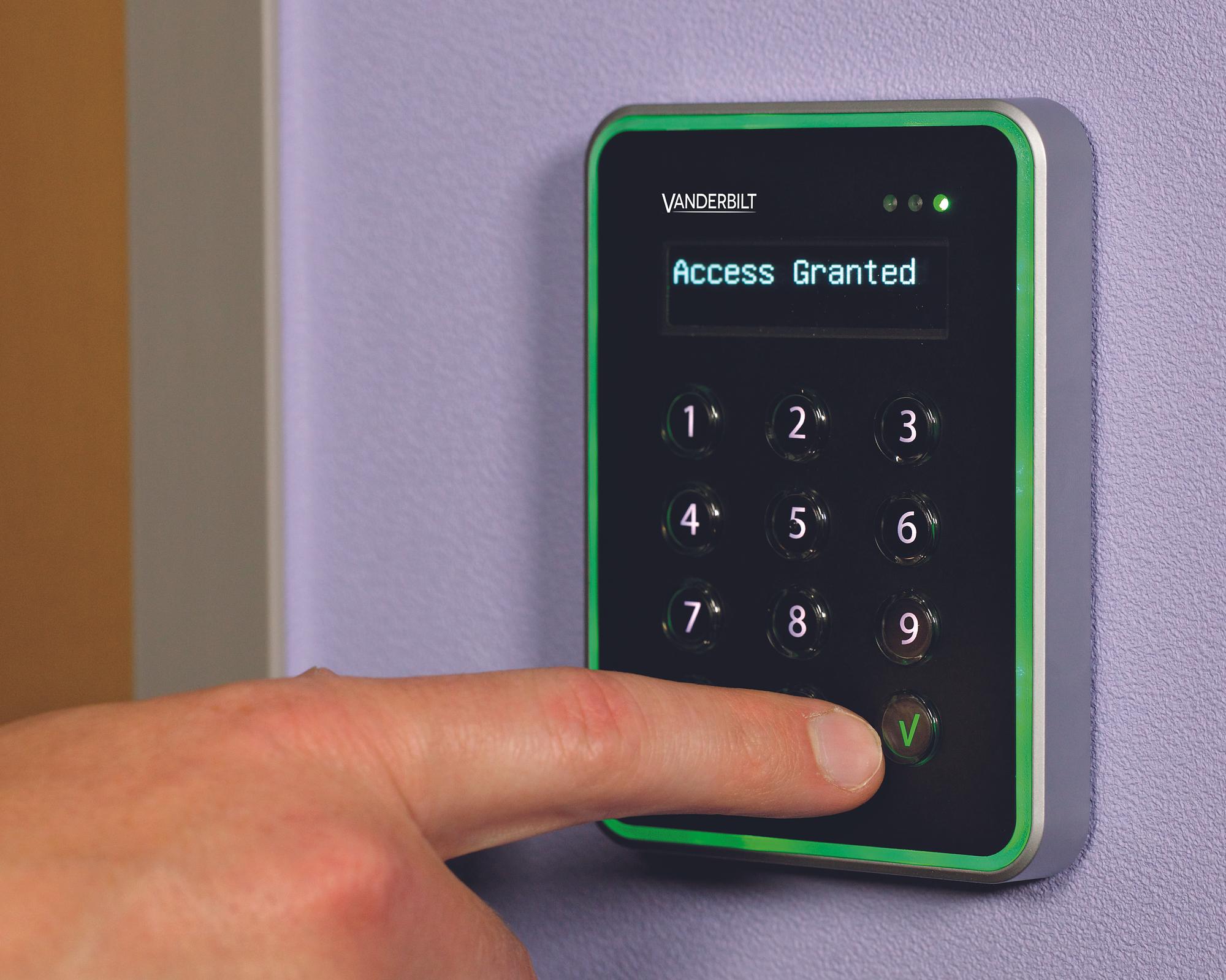

Designed for today’s bright, clean interiors, yet robust in service, the VR40S-MF is easy to install, use and maintain. The VR40S-MF has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options. It has a high quality backlight keypad with tactile feedback as well as a graphical OLED display to maximise user interaction with arming, access and recognition messaging etc., resulting in improved and enhanced user interaction “at the door”. Display brilliance is set automatically by an inbuilt light sensor.
Gross weight (KG) 0.65
Purchase unit PCE
EAN/UPC-Code: 4025515469841
Minimum order 1
ECCN N
Statistical code 84719000
Country of origin RO
Net weight 0.561
Material code V54504-F102-A100
Keypad: Yes
Card technology: MIFARE
Operating voltage: 8.5 – 30.0 VDC
Housing protection: IP55 (surface mounted) IP3X (back box mounted)
Colour: Black, matt chrome
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Operation temperature: -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted)
Display: Yes, graphic monochrome OLED
Tamper protection: Yes
Current consumption: DC 12V: 60mA (Max: 220mA) DC 24V: 40mA (Max 125mA)
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Weight: 0.628kg
Air humidity (EN 60721): 5-95% non-condensing
Impact rating: IK08
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2 (to EV1 conditions only)
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Interface to controller: RS485 OSDP
Card read distance: Up to 6 cm
Environment: Indoor or outdoor use
Power consumption: DC 12V = 60mA (220mA Peak); DC 24V = 40mA (125mA Peak)
