Produktinformasjon "SPCK623.100 Comfort Keypad w. Audio/CR"

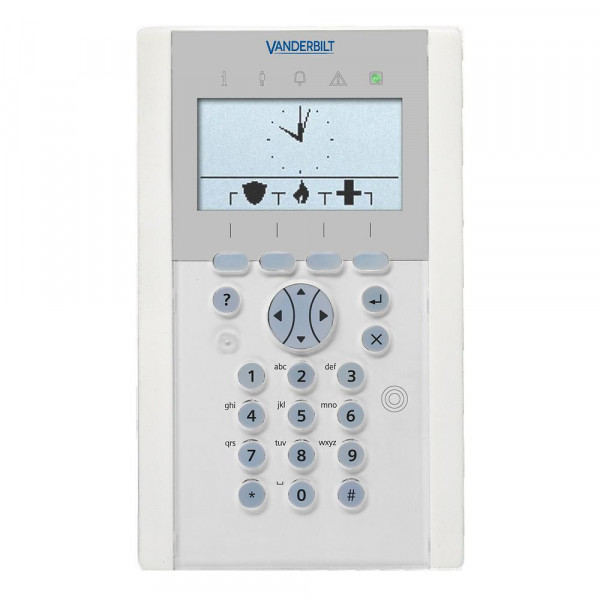

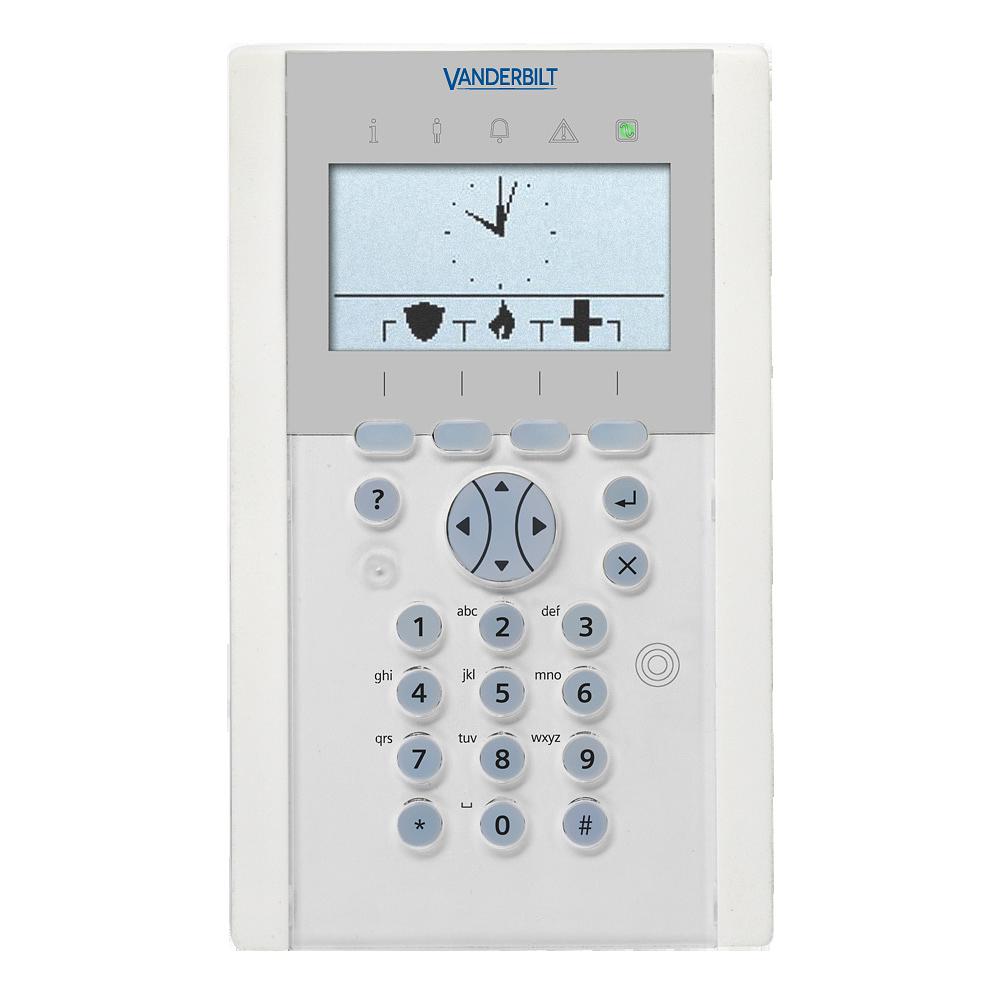

The SPCK623.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The integrated card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN. The built in speaker and sensitive microphone support audio features such as alarm verification or voice annunciation. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
Bruttovekt (KG) 0.6
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470977
Mindestabnahme 1
ECCN N
Materialkode V54543-F111-A100
Statistisk kode 85311030
Netto vekt 0.570
Opprinnelsesland PH
Interfaces: X-BUS (in, out)
Operating temperature: 5 ~ +40 °C
Quiescent current: Max. 110 mA at 12 VDC
Operating current: Max. 230 mA at 12 VDC (backlight, LEDs, audio, reader operated)
Audio: Supported via integrated speaker and microphone
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Weight: 0.380 kg
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 112 x 185 x 28 (mm)
