PDM-IXA12T Dual AM detector 10.525GHz

Forhåndsvisning: PDM-IXA12T Dual AM detector 10.525GHz Forhåndsvisning: PDM-IXA12T Dual AM detector 10.525GHz
PDM-IXA12T Dual AM detector 10.525GHz
PDM-IXA12T Dual AM detector 10.525GHz

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54531-F116-A100
  • EAN/UPC Strekkode: 4025515470489
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon nyttige lenker
Beskrivelse
Lukk meny
Produktinformasjon "PDM-IXA12T Dual AM detector 10.525GHz"

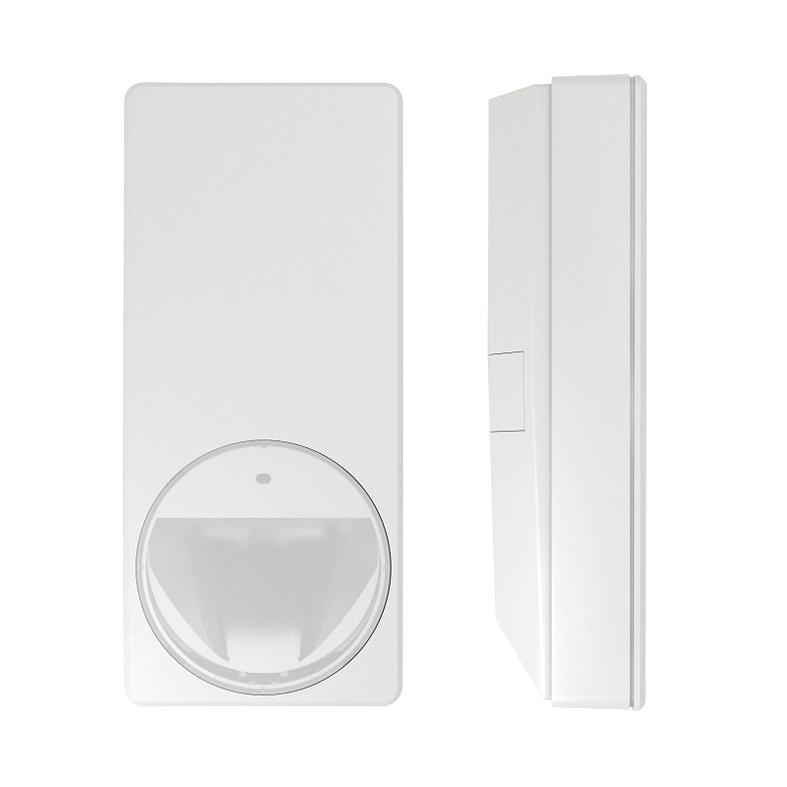

MAGIC motion detector PDM-IXA12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.105
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470489
Mindestabnahme 1
Statistisk kode 85311030
ECCN EAR99
Opprinnelsesland RO
Netto vekt 0.100
Materialkode V54531-F116-A100
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Storage temperature: - 20° ... + 60°C
Supply voltage: 9 ... 16 VDC (12 V nom.)
Outputs: 30 VDC / 100 mA, NC
Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
EOL resistor: RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
Operating temperature: - 10° ... + 55°C
Weight: 0.1 kg
Colour: RAL9003
Detection characteristics / range: Volumetric / 12 m
Pet immunity: yes (option)
Sensitivity evaluation mode: 6 settings
Approval: EN50131-2-4 grade 3
Current consumption: 6.3 mA (rms) 10.5 mA (max peak)
Walking speed: 0,1 ... 4,0 m/s / 0,1 ... 4,0 m/s
Microwave (MW): 10.525 GHz
Air humidity (EN 60721): < 95% RH, non-condensing
Housing protection (EN 60529): IP41 / IK02
Optical system: MAGIC mirror
Dimensions (W x H x D): 57 x 128 x 32 mm
Dokumentasjon
