SPC4320.320 Kit LCD

SPC4320.320 Kit LCD
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: L54541-N104-A100
Description Import & Export Resources Technical data Documentation Software
Description
Close menu

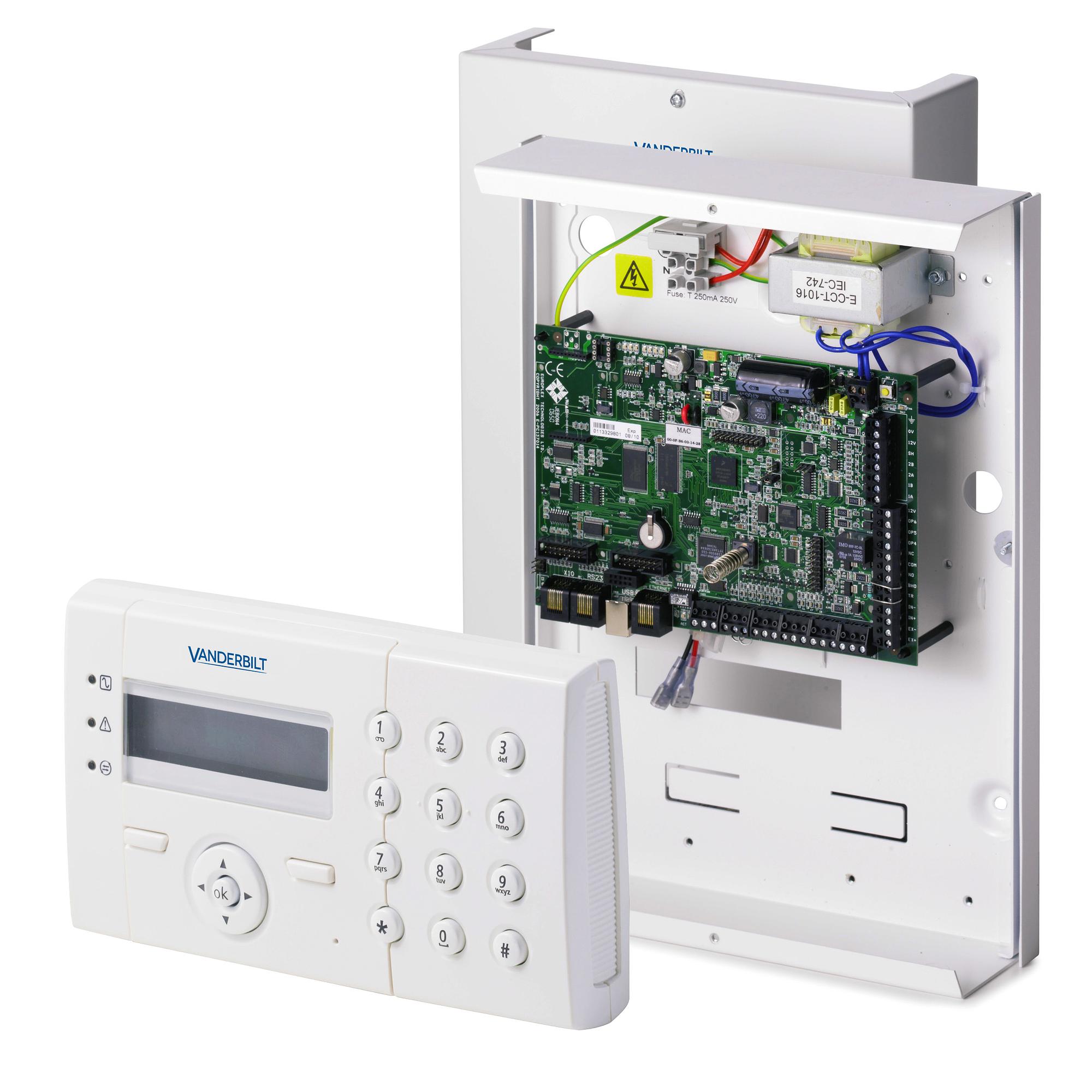

Product information "SPC4320.320 Kit LCD"
IP Based Intrusion system with embedded web server Vanderbilt`s SPC4330 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 8 verification zones. The controller provides 1 X-BUS port (1 spur), 4 areas, 100 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 32 wireless detectors (mixed with wired zones. The panel comes in a tamper protected metal housing with space for an optional 7 Ah battery.
Import & Export
Gross weight (KG) 0.1
Purchase unit PCE
Minimum order 1
ECCN N
Material code L54541-N104-A100
Net weight 0.100
Statistical code 85311030
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Documentation
