SPC4320.320 Kit LCD
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: L54541-N104-A100

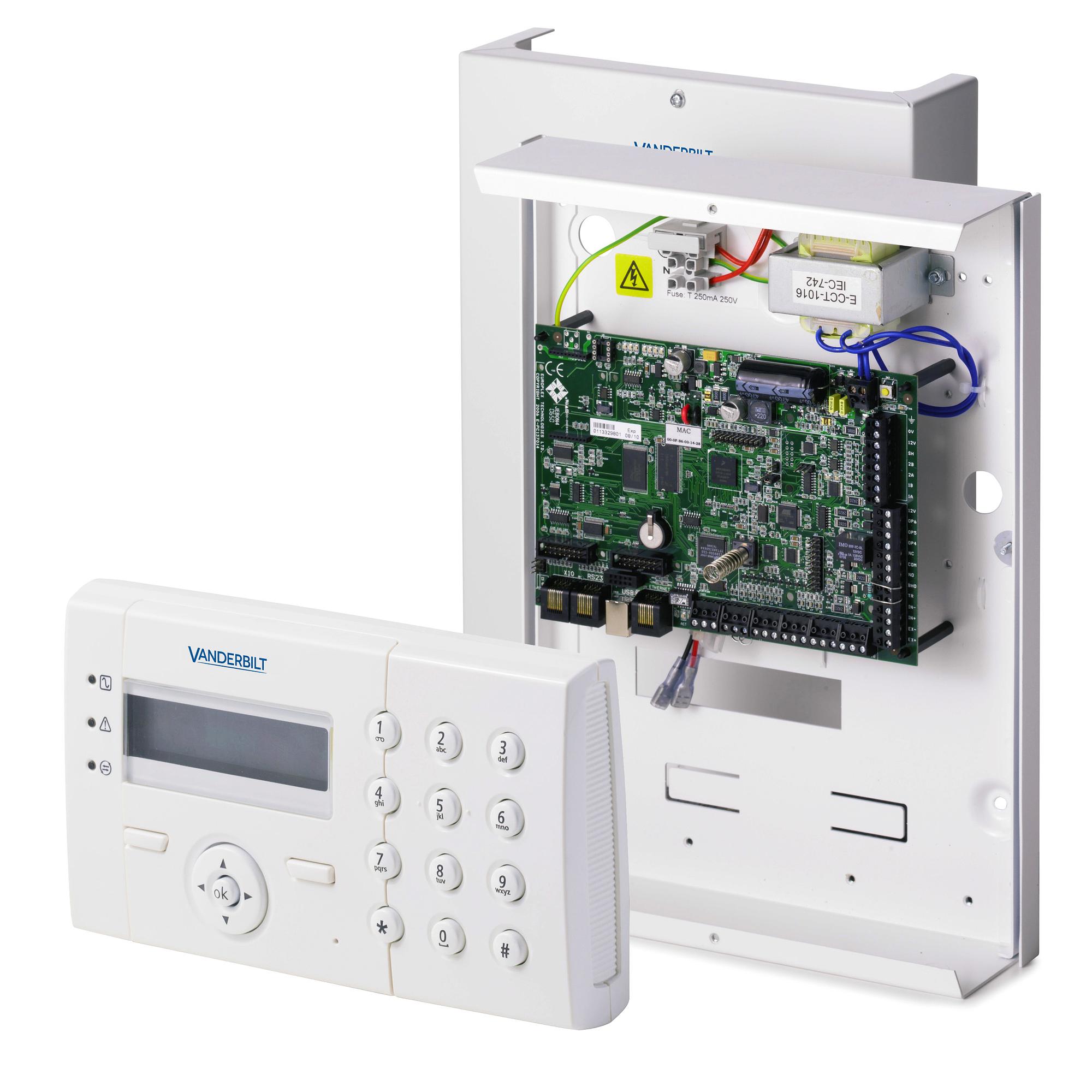

Product information "SPC4320.320 Kit LCD"
IP Based Intrusion system with embedded web server Vanderbilt`s SPC4330
control panel combines in an optimal way intrusion and access
functionality in one system and can be expanded according to specific
customers and project needs with up to 32 zones (8 on-board), 30 outputs
(6 on-board), 4 system keypads, 4 doors, 8 verification zones. The
controller provides 1 X-BUS port (1 spur), 4 areas, 100 users with
different access levels, memory for 1’000 intrusion and 1'000 access
events, integrated Web Server, 2 terminals for the pluggable PSTN and
GSM/GPRS communication options, on-board Ethernet interface.
The system is expandable with wireless receivers and supports up to 32
wireless detectors (mixed with wired zones.
The panel comes in a tamper protected metal housing with space for an
optional 7 Ah battery.
- Datasheet
- Installation Manual - (English) - 220_SPC Install and Config_A6V10276959-h_EN
- Installation Manual - (German) - 220_SPC-Install-and-Config_A6V10276959-g_DE
- Installation Manual - (French) - SPC Install and Config_A6V10316314-g_FR
- Planning guide - (Multilingual) - SPC Matrix 3.13.7_EN
- Planning guide - (French) - SPC Matrix 3.13.7_FR
- Planning guide - (Italian) - SPC Matrix 3.13.7_IT
- Product Support Guide - (English) - EOL Bands in SPC
- Product Support Guide - (English) - SPC Camera Integration
- Product Support Guide - (German) - TAS link III EDP Integration in SPC Anleitung
- Product Support Guide - (English) - SPC Eventys IPC Integration
- Product Support Guide - (German) - Aufschaltung SPC EDP (Certas Schweiz)
- Product Support Guide - (English) - SPC Panel FW SW Overview
- Product Support Guide - (English) - SMS Setup SPC
- Product Support Guide - (English) - SPC Connect Setup
- Product Support Guide - (English) - SPC Video Verification
- Product Support Guide - (English) - SPC XBus Wiring
- Product Support Guide - (English) - SPC Connect Trouble Shooting
- Product Support Guide - (French) - Câblage sirène sur SPC
- Product Support Guide - (French) - Câblage XBus sur SPC
- Product Support Guide - (French) - Connexion centrale SPC Connect 3G
- Product Support Guide - (French) - Connexion centrale SPC Connect
- Product Support Guide - (French) - Connexion Web SPC Chrome
- Product Support Guide - (French) - Connexion Web SPC IE
- Product Support Guide - (French) - Connexion Web SPC Firefox
- Product Support Guide - (French) - Configuration Calendrier SPC
- Product Support Guide - (French) - Création login SPC Connect Pro
- Product Support Guide - (French) - Enrolement badges SPC
- Product Support Guide - (French) - Configration levée de doute audio video SPC
- Product Support Guide - (French) - Création secteur commun SPC
- Product Support Guide - (French) - Test entrées sorties SPC
- Product Support Guide - (French) - Test transmission SPC
- Product Support Guide - (English) - SPC over fibre
- Product Support Guide - (German) - Ausgang setzen über Bedienteil
- Product Support Guide - (English) - SPC and HIK-Vision Camera
- Product Support Guide - (Danish) - SPC og Milesight kamera
- Product Support Guide - (English) - SPC Connect V3.0 - Password Recovery
- Product Support Guide - (Spanish) - SPC a traves Fibra
- Product Support Guide - (English) - SPC Connect Pro Data Migration
- Product Support Guide - (English) - SPC Connect Pro - Upgrade Issue
- Product Support Guide - (English) - SPCN340 Signal Information Guide
- Product Support Guide - (English) - Factory and users reset
- Product Support Guide - (French) - Restauration d’Usine et des Utilisateurs
- Product Support Guide - (French) - Configuration FlexC SPC Connect en Ethernet et Modem pour SPC
- Product Support Guide - (English) - E-Bus with SPC
- Product Support Guide - (Swedish) - E-Bus med SPC
- Product Support Guide - (English) - Web browser compatibility with SSL/TLS1.2
- Application Note - (German) - Gen2 an SPC
- Application Note - (English) - FDX60M1 Fiber Multimode to X Bus SPC
- Application Note - (English) - SPC XBus integration Expander
- Application Note - (German) - Hotkey Prox an SPC
- Application Note - (English) - ECO560 wiring to SPC
- Application Note - (German) - ECO560 an SPC
- Software - (English - Version 02) - SPC Power Calculation V3.0
- Software - (German - Version 01) - SPC Stromberechnung V3.0
- Firmware - (Multilingual - Version ) - SPC Firmware 3.14.1_20230904
- Firmware - (Multilingual - Version ) - SPC Firmware 3.14.5_20240819_Installer package
- Software - (Multilingual - Version 01) - SPC Connect Pro - Configuration Tool
