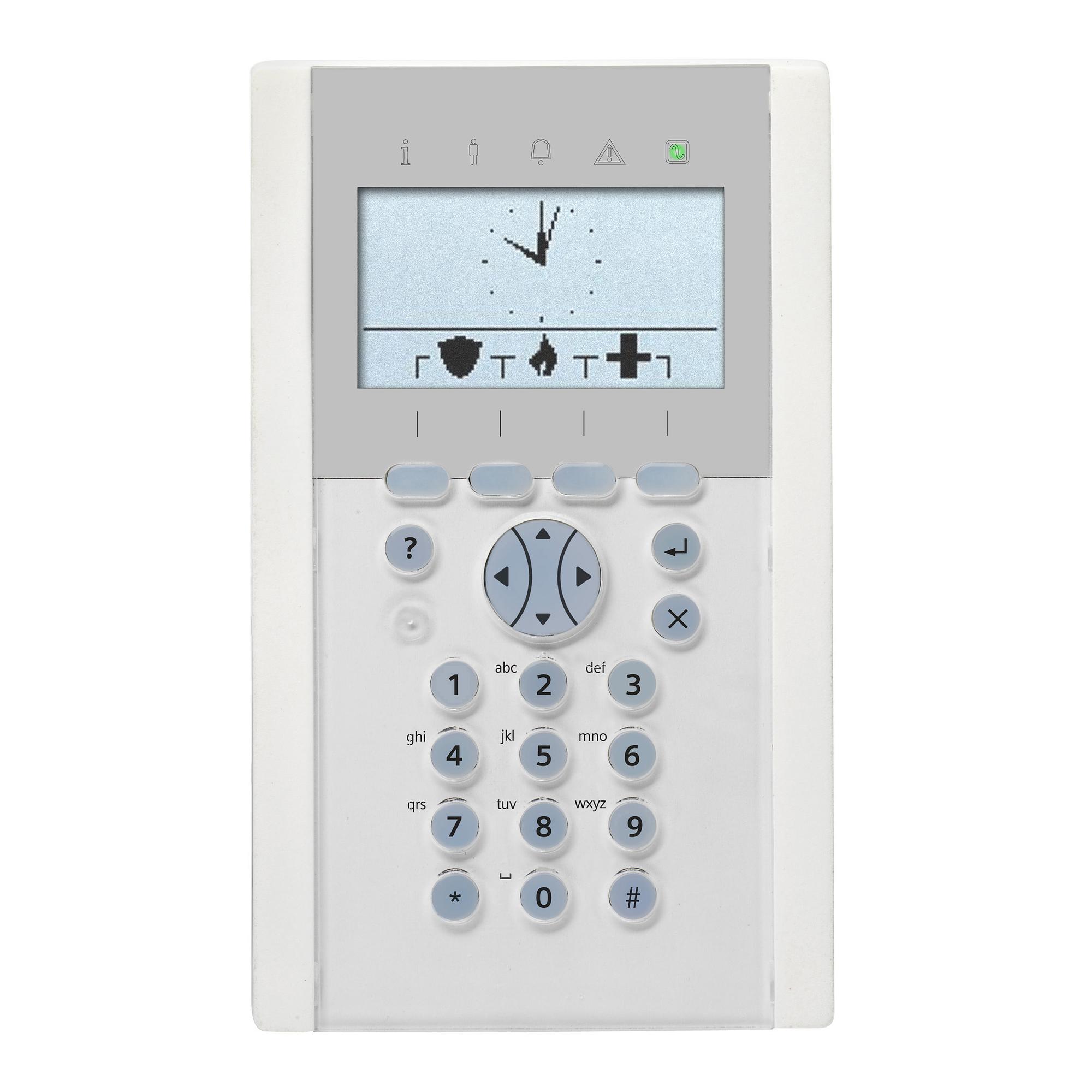

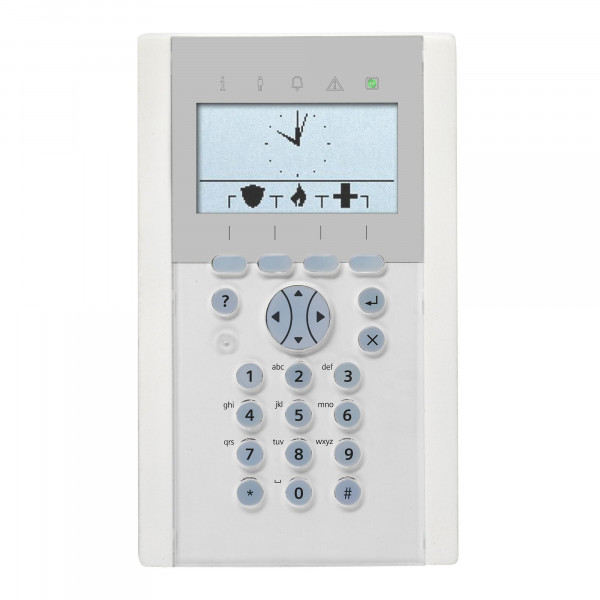

SPCK620.100-N Komfort MAP. Neutral

Preview: SPCK620.100-N Komfort MAP. Neutral Preview: SPCK620.100-N Komfort MAP. Neutral
SPCK620.100-N Komfort MAP. Neutral
SPCK620.100-N Komfort MAP. Neutral

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54543-F110-B100
  • EAN/UPC-Code: 7330082000319
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCK620.100-N Komfort MAP. Neutral"
SPC LCD keypad with graphical display/card reader and audio Vanderbilt`s SPCK620/SPCK623 keypad provides a simple intuitive interface to the SPC system. Optimised for multi area systems the keypad provides a detailed overview of system status. Key Features include: Powerful menu structure The LCD display, soft keys, and multi-dimensional navigation key is ideal to operate large systems or single areas in a user friendly way. Cause and effect integration. Integrated Card reader (SPCK623 only) Can be used for authorization without code for ease of access or with code for higher security. Easy configuration Can be configured from the keypad or SPC Web interface. The comfort keypad is ideal to operate single and multi-area applications in a user friendly way. The soft keys and the multi-dimensional navigation key provide an easy to use system with minimum operational steps. Customer logo, emergency or quick set functions can be displayed in idle state.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.55
Purchase unit PCE
EAN/UPC-Code: 7330082000319
Minimum order 1
ECCN N
Net weight 0.390
Material code V54543-F110-B100
Statistical code 85311030
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating current: Max. 155 mA at 12 V DC (backlight, LEDs, sounder operated)
Tamper contact: Front/back spring tamper
Operating voltage: 9.5 ~ 14 V DC
Display: 128 x 64 pixels (approx. 6 x 20 characters)
Weight: 0.380 kg
LED Indicators: 5 status LEDs
Colour: RAL 9003 (signal white)
Operating temperature: 5° ~ +40 °C
Interfaces: X-BUS (in, out)
Quiescent current: SPCK620 - Max. 55 mA at 12 V DC SPCK623 - Max. 110 mA at 12 V DC
